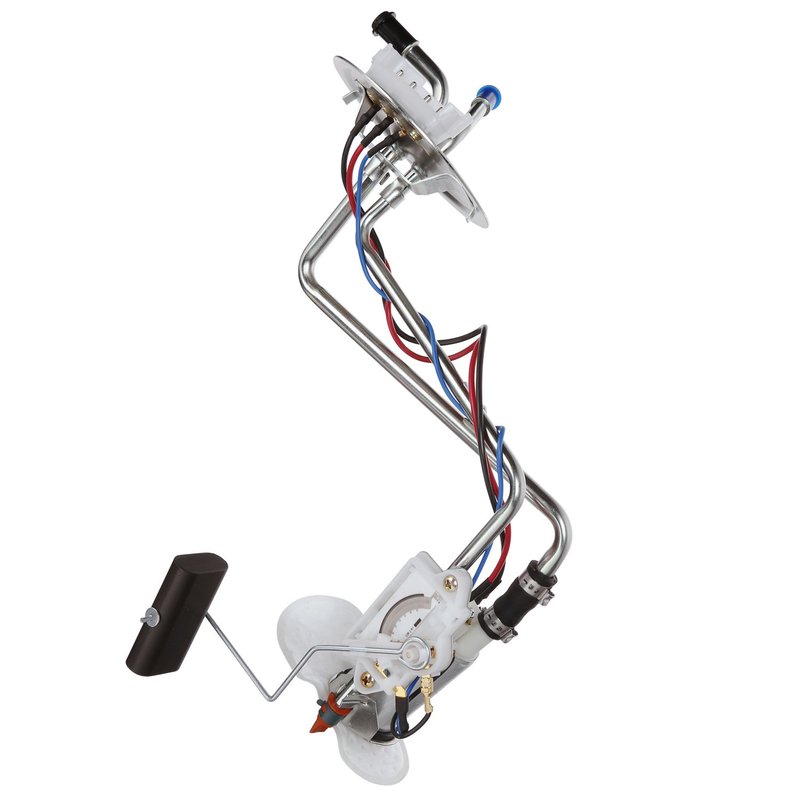

Delphi HP10149 Fuel Pump Hanger Assembly
| Brand | Delphi HP10149 |
|---|---|
| Average Current Draw | 7 |
| Average Flow Rating | 32 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Item Grade | Standard Replacement |
| Maximum Pressure | 73.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 2 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Hanger Assembly w/Float Arm, Seal, Lock Ring, Instruction Sheet |
| Pump Type | Electric |
| Resistance Ohms Empty | 10.0 |
| Resistance Ohms Full | 160.0 |
| Strainer Included | Yes |
| System Pressure | 5 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Pin |
| Voltage | 12.0 |
| Fits | Ford · 14 vehicles |
Standard replacement. Built as a fuel pump hanger assembly for straightforward service.
OE heritage. Backed by Delphi's century of OE experience and supplier knowledge.
Complete assembly. Includes a float arm, seal, lock ring, and instruction sheet.
Cross-references Airtex Fuel Pumps E2103S, Airtex Fuel Pumps E2487 and Bosch 69100 for the same application. See all 18.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi HP10149 Fuel Pump Hanger Assembly
The Delphi HP10149 fuel pump hanger assembly is a standard replacement for in-tank gasoline fuel delivery systems. Built with OE heritage and Delphi’s long history supplying automakers, it combines the fuel pump hanger, fuel level sender, seal, lock ring, and float arm in one service assembly.
Compatible With 1987-1989 Ford F-150, 1987-1989 Ford F-250, and 1987-1989 Ford F-350 with a 19-gallon midship tank, this Delphi HP10149 is a direct-fit service part for the listed applications.
Key Features
- Fuel pump hanger assembly for in-tank gasoline applications
- 12-volt electric pump design
- Maximum pressure rating of 73 psi
- Average flow rating of 32
- Fuel level sender assembly included
- Gasket or seal included
- Strainer included with external strainer design
- Quick-connect outlet type with two outlets
- Pin-style terminals, 4-terminal male connection
- Standard replacement grade for service repair
Detailed Description
Delphi HP10149 is engineered for gasoline fuel systems that use an in-tank pump hanger assembly and sender unit. It features a 0.375-inch outlet outside diameter, 5 psi system pressure, 7-amp average current draw, and resistance values of 10 ohms empty and 160 ohms full for the fuel level sender. Delphi’s OE background is reflected in the fit, function, and component layout used in this replacement assembly.
This part cross-references Bosch 69100 and Carter P74067 for the same application. It is a strong match for Ford F-150 fuel pump hanger assembly replacement, Ford F-250 in-tank fuel pump service, and Ford F-350 fuel sender repair where the listed tank configuration applies.
What It Is Used For
- Replacing a worn or failed in-tank fuel pump hanger assembly
- Restoring fuel delivery on 1987-1989 Ford F-150, F-250, and F-350 trucks with a 19-gallon midship tank
- Correcting inaccurate fuel level readings from a failing sender
- Addressing low fuel pressure or inconsistent fuel flow in the listed applications
- Servicing a contaminated or damaged fuel tank pickup assembly
Installation Notes and Tips
Before installation, clean the fuel tank thoroughly. Fuel tank contamination is a leading cause of premature pump failure, and Delphi recommends using a fuel tank cleaning kit such as FC01. Verify the vehicle’s tank configuration and confirm the application uses the listed 19-gallon midship tank. The package includes the fuel pump hanger assembly with float arm, seal, lock ring, and instruction sheet.
Quality Assurance
Delphi draws on more than 100 years of OE experience and a broad aftermarket portfolio built from supplier knowledge used by major automakers. The HP10149 is a standard replacement fuel pump hanger assembly designed to meet the needs of the specified Ford truck applications.
| Year | Make | Model | Wheel Base | Position | Notes |
|---|---|---|---|---|---|
| 1989 | Ford | F-150 | 155.0" | N/A | with 19 Gallon Midship Tank; 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1989 | Ford | F-150 | 133.0" | N/A | with 19 Gallon Midship Tank; 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1989 | Ford | F-250 | — | N/A | with 19 Gallon Midship Tank; 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1989 | Ford | F-350 | 155.0" | N/A | with 19 Gallon Midship Tank; 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1989 | Ford | F-350 | 133.0" | N/A | with 19 Gallon Midship Tank; 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1988 | Ford | F-150 | 155.0" | N/A | with 19 Gallon Midship Tank; 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1988 | Ford | F-150 | 133.0" | N/A | with 19 Gallon Midship Tank; 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1988 | Ford | F-250 | — | N/A | with 19 Gallon Midship Tank; 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1988 | Ford | F-350 | 155.0" | N/A | with 19 Gallon Midship Tank; 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1988 | Ford | F-350 | 133.0" | N/A | with 19 Gallon Midship Tank; 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1987 | Ford | F-150 | 155.0" | N/A | with 19 Gallon Midship Tank; 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1987 | Ford | F-150 | 133.0" | N/A | with 19 Gallon Midship Tank; 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1987 | Ford | F-250 | — | N/A | with 19 Gallon Midship Tank; 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1987 | Ford | F-350 | 133.0" | N/A | with 19 Gallon Midship Tank; 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
