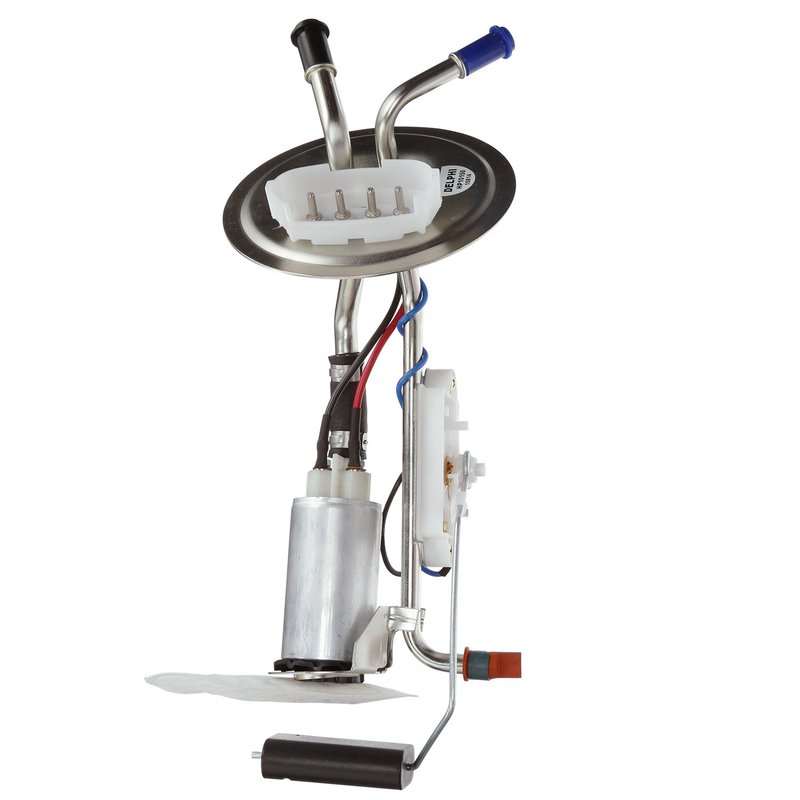

Delphi HP10150 Fuel Pump Hanger Assembly

Reliable Fuel Pump Hanger Assembly for Ford F-Series Trucks

The Delphi HP10150 fuel pump hanger assembly is designed specifically for Ford F-150, F-250, and F-350 models. This in-tank electric fuel pump assembly ensures consistent fuel delivery and accurate fuel level readings, making it a dependable replacement part for your vehicle's fuel system.

• Compatible with Ford F-150, F-250, and F-350 trucks
• Electric fuel pump with 12.0 volts operation
• Includes fuel level sender assembly with float arm
• Maximum pressure rating of 73 psi and system pressure of 5 psi
• Features external strainer and quick connect outlet type
• Comes with gasket, seal, and lock ring for secure installation
• Four male pin terminals for reliable electrical connections
• Average flow rating of 32 gallons per hour and average current draw of 7 amps

Technical Details and Specifications

The Delphi HP10150 fuel pump hanger assembly operates at 12 volts and is designed for gasoline fuel systems. It features a 0.375-inch outlet outside diameter with two quick connect outlets, facilitating efficient fuel flow. The assembly includes an external strainer inlet type to protect the pump from debris, enhancing longevity and performance. The fuel level sender assembly is integrated with a float arm, providing accurate fuel level readings. Electrical connections are made via four male pin terminals, ensuring secure and stable power delivery. The pump maintains a maximum pressure of 73 psi and a system pressure of 5 psi, suitable for standard fuel delivery requirements in Ford F-Series trucks.

Applications and Problem Solving

• Replaces faulty or worn fuel pump hangers in Ford F-150, F-250, and F-350 models
• Resolves inconsistent fuel delivery or engine stalling issues
• Fixes inaccurate fuel gauge readings due to faulty sender assemblies
• Addresses fuel leaks by including a new gasket and seal
• Improves fuel system reliability with a quality electric pump and strainer

Installation Notes and Tips

Installation of the Delphi HP10150 fuel pump hanger assembly requires removal of the fuel tank to access the in-tank assembly. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. Use the included gasket, seal, and lock ring to secure the assembly and prevent leaks. Verify all electrical connections are properly seated on the four male pin terminals. After installation, check for proper fuel pressure and fuel level sender operation to confirm correct installation.

Quality Assurance and Warranty

Delphi manufactures the HP10150 as a standard replacement part meeting OEM specifications for Ford F-Series trucks. The assembly includes a fuel level sender and strainer to maintain system integrity. While specific warranty details are not provided, Delphi products typically adhere to industry standards for durability and performance. For additional warranty information, consult the product documentation or manufacturer resources.
