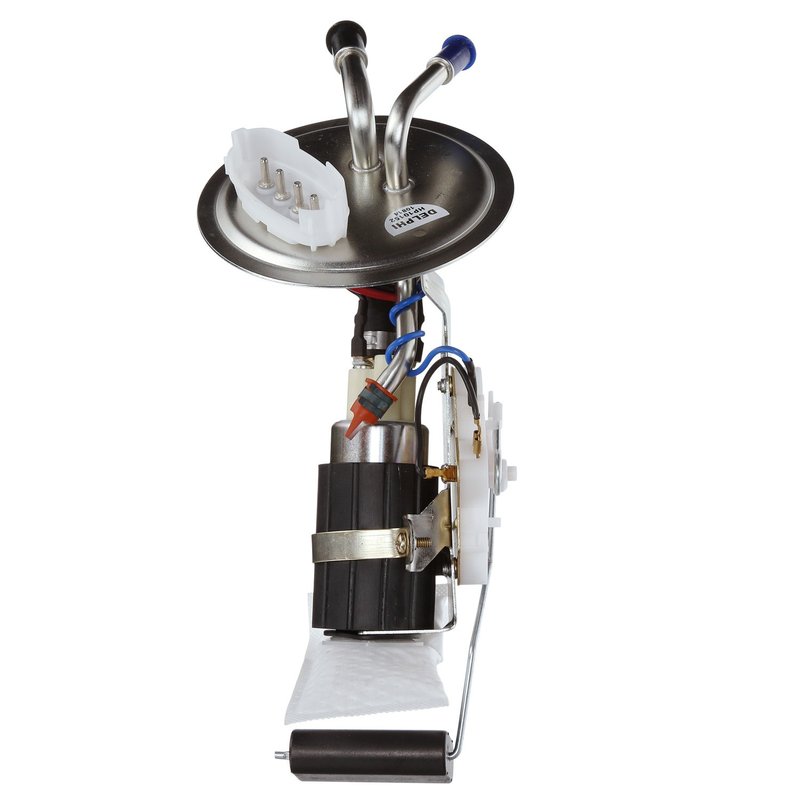

Delphi HP10152 Fuel Pump Hanger Assembly

Reliable Fuel Pump Hanger Assembly for Ford Tempo and Mercury Topaz

The Delphi HP10152 fuel pump hanger assembly is designed for precise fuel delivery in Ford Tempo and Mercury Topaz vehicles. This in-tank electric fuel pump assembly ensures consistent fuel pressure and flow, supporting optimal engine performance.

• Electric fuel pump with 12.0 volts operation
• Compatible with gasoline fuel systems
• Maximum pressure rating of 73 psi and system pressure of 51 psi
• Includes fuel level sender assembly with float arm
• Four male pin terminals for secure electrical connections
• External strainer inlet and quick connect outlet with 0.375 inch diameter
• Comes with gasket, seal, and lock ring for proper installation
• Average flow rating of 22 gallons per hour and average current draw of 7 amps

Detailed Product Description

The Delphi HP10152 fuel pump hanger assembly is engineered as a standard replacement part for Ford Tempo and Mercury Topaz models. This in-tank electric pump features a durable design with an external strainer inlet to filter fuel before it enters the pump, helping to maintain fuel system cleanliness. The assembly includes a fuel level sender with a float arm, providing accurate fuel level readings. The four male pin terminals ensure reliable electrical connections, while the quick connect outlet with a 0.375 inch outside diameter facilitates straightforward fuel line attachment. Operating at 12 volts, the pump delivers an average flow rate of 22 gallons per hour and maintains system pressure at 51 psi, with a maximum pressure capacity of 73 psi.

Applications and Common Issues Addressed

• Replacement for failing or noisy fuel pumps in Ford Tempo and Mercury Topaz
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel delivery interruptions from clogged or damaged strainers
• Prevents electrical connection failures with secure pin terminal design

Installation Notes and Tips

Installation of the Delphi HP10152 requires removal of the fuel tank to access the in-tank assembly. Ensure the gasket and seal included are properly seated to prevent fuel leaks. Verify the orientation of the float arm for accurate fuel level measurement. Use appropriate tools to secure the lock ring and confirm all electrical connections are tight on the four male pin terminals. Always follow vehicle-specific service manual instructions for safety and proper installation procedures.

Quality Assurance and Warranty

Delphi manufactures the HP10152 fuel pump hanger assembly to meet OEM standards for fit, form, and function. This standard replacement part undergoes rigorous testing to ensure durability and reliable performance in Ford Tempo and Mercury Topaz vehicles. The product includes a gasket and seal to maintain system integrity. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
