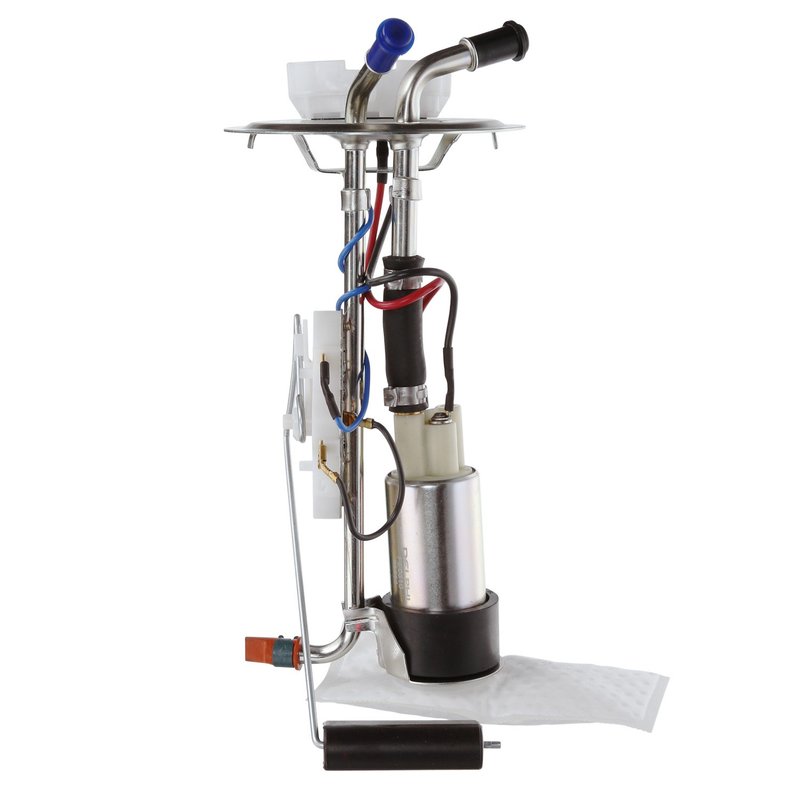

Delphi HP10154 Fuel Pump Hanger Assembly

Delphi HP10154 Fuel Pump Hanger Assembly

The Delphi HP10154 fuel pump hanger assembly is a standard replacement for in-tank gasoline fuel systems that need reliable fuel delivery and fuel level sensing. Built from Delphi’s OE-focused engineering background, it combines the pump hanger, float arm, seal, lock ring, and instruction sheet in one service assembly.

Compatible with select Ford Aerostar applications, this Delphi fuel pump hanger assembly is built for 12-volt electric operation, quick-connect outlet connections, and a maximum pressure rating of 73 psi.

Key Features

• In-tank electric fuel pump hanger assembly for gasoline applications
• 12.0-volt design with 7 amp average current draw
• Maximum pressure rating of 73.0 psi and system pressure of 36 psi
• Fuel level sender assembly included with 10 ohms empty and 160 ohms full resistance
• Quick-connect outlet type with two outlets and 0.375 in. outlet outside diameter
• Gasket or seal included, along with strainer and external strainer setup
• Standard replacement part for service on OE-style fuel systems

Detailed Description

Delphi HP10154 is a fuel pump hanger assembly for in-tank gasoline systems that require both fuel delivery and fuel level sender function. It is engineered with a pin-style, male terminal layout, four terminals, and an electric pump design to support consistent fuel flow in the tank-mounted application. Delphi’s OE heritage and broad aftermarket coverage are reflected in the construction and application focus of this assembly.

This part cross-references DENSO Auto Parts 951-0016 for the same application. It also cross-references Spectra Premium SP1142 for the same application. For Ford Aerostar service, the Delphi HP10154 fuel pump hanger assembly provides a direct replacement option for 1989 and 1990-1997 models listed below.

Vehicle Fitment

• Fits 1990-1997 Ford Aerostar, N/A
• Fits 1989 Ford Aerostar, N/A, with 21 Gallon Tank

What It Helps Address

• Hard starting caused by weak or inconsistent in-tank fuel delivery
• Fuel gauge issues related to a worn sender assembly
• Fuel pressure loss from a failing hanger-mounted pump assembly
• Fuel system service needs after tank contamination or debris buildup
• Seal leakage at the tank opening when the hanger assembly is replaced

Installation Notes and Tips

Before installing the Delphi HP10154, clean the fuel tank to remove contamination that can shorten pump life or damage the seal. For the 1989 Ford Aerostar with a 21 gallon tank, Delphi notes that tank cleaning is especially important, and use of fuel tank cleaning kit FC01 is recommended. Verify outlet connection style, terminal layout, and sender resistance before installation.

Quality Assurance

Delphi builds this fuel pump hanger assembly using OE experience gained from supplying major automakers, with aftermarket coverage shaped by that original equipment background. The HP10154 is a standard replacement part intended for dependable service in supported Ford Aerostar applications.
