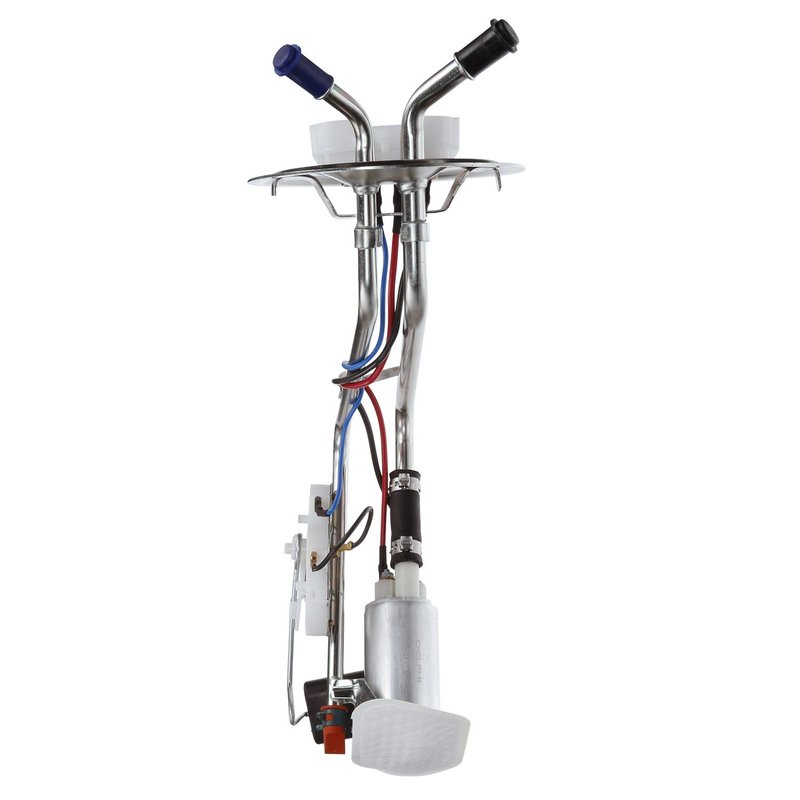

Delphi HP10156 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10156 Fuel Pump Hanger Assembly is designed for reliable fuel delivery in select Ford Econoline models. This in-tank electric fuel pump hanger assembly includes a fuel level sender and is engineered to meet the specific requirements of Ford E-150, E-250, and E-350 Econoline vans.

• Compatible with Ford E-150 Econoline, E-150 Econoline Club Wagon, E-250 Econoline, E-250 Econoline Club Wagon, E-350 Econoline, and E-350 Econoline Club Wagon
• Electric fuel pump with 12.0 volts operation
• Maximum pressure rating of 6.5 psi and system pressure of 5 psi
• Includes external strainer and fuel level sender assembly
• Quick connect outlet with 0.375 inch outside diameter
• Four male pin terminals for secure electrical connections
• Standard replacement grade with gasket, seal, and lock ring included
• Average flow rating of 29 and average current draw of 6 amps

Technical Details and Features

The Delphi HP10156 fuel pump hanger assembly is an electric in-tank pump designed to maintain consistent fuel pressure and flow for gasoline engines. It features a quick connect outlet type with two outlets, each having an outside diameter of 0.375 inches, facilitating straightforward installation and connection. The assembly includes an external strainer to protect the pump from debris and a fuel level sender assembly with a float arm for accurate fuel gauge readings.

Electrical connections are made via four male pin terminals, ensuring compatibility with the vehicle’s wiring harness. The pump operates at 12 volts with a resistance of 70 ohms when empty and 10 ohms when full, drawing an average current of 6 amps. The system pressure is maintained at 5 psi, with a maximum pressure rating of 6.5 psi, supporting optimal fuel delivery performance.

Applications and Problem Solving

• Replaces faulty or failing fuel pump hangers in Ford Econoline vans
• Resolves inconsistent fuel pressure or flow issues
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel contamination problems with included external strainer
• Eliminates electrical connection failures with secure pin terminals

Installation Notes and Tips

• Ensure compatibility with Ford E-150, E-250, and E-350 Econoline models before installation
• Handle the fuel level sender float arm carefully to avoid damage
• Replace the included gasket and seal to prevent fuel leaks
• Verify electrical connections are secure and terminals are properly aligned
• Follow vehicle manufacturer guidelines for fuel system servicing

Quality Assurance and Warranty

The Delphi HP10156 is a standard replacement grade fuel pump hanger assembly designed to meet OEM specifications for Ford Econoline vans. It includes all necessary components such as the fuel pump hanger assembly with float arm, seal, and lock ring. Delphi products undergo rigorous testing to ensure durability and reliable performance. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
