Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

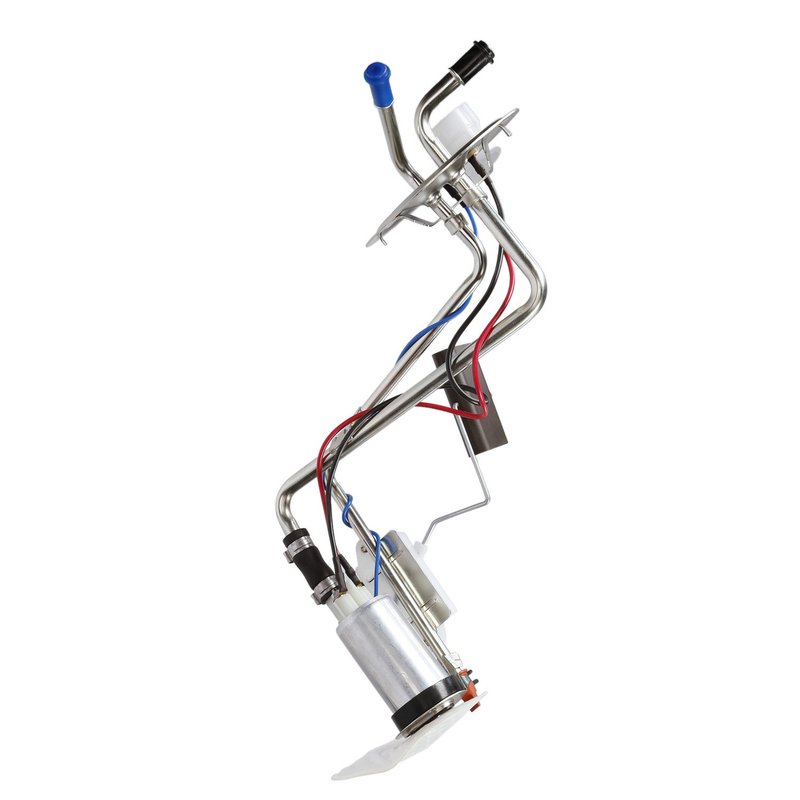

Delphi HP10157 Fuel Pump Hanger Assembly
| Brand | Delphi HP10157 |
|---|---|
| Average Current Draw | 6 |
| Average Flow Rating | 31 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Item Grade | Standard Replacement |
| Maximum Pressure | 80.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 2 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Hanger Assembly w/Float Arm, Seal, Lock Ring, Instruction Sheet |
| Pump Type | Electric |
| Resistance Ohms Empty | 70.0 |
| Resistance Ohms Full | 10.0 |
| Strainer Included | Yes |
| System Pressure | 5 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Pin |
| Voltage | 12.0 |
| Fits | Ford · 5 vehicles |
Standard replacement. Direct-fit fuel pump hanger assembly for straightforward service.
Electric fuel pump. Delivers consistent 12-volt fuel delivery with up to 80 psi pressure.
Complete assembly. Includes seal, strainer, float arm, and fuel level sender.
Cross-references Airtex Fuel Pumps E2148S, Carter P74067 and Spectra Premium SP1156 for the same application. See all 11.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Hanger Assembly for Ford Midship Tank Applications
The Delphi HP10157 fuel pump hanger assembly is a standard replacement for select Ford truck applications with a 19-gallon midship tank. Built for in-tank gasoline systems, it combines the fuel pump, sender, hanger, seal, lock ring, and float arm in one service assembly for a direct repair approach.
- Fits 1985 Ford F-250, N/A, with 19-gallon midship tank
- Fits 1985-1986 Ford F-150, N/A, with 19-gallon midship tank
- 12-volt electric pump for gasoline fuel systems
- Maximum pressure rating: 80 psi
- Average flow rating: 31
- In-tank design with quick-connect outlet and external strainer
- Fuel level sender assembly included with 70 ohms empty and 10 ohms full resistance
- Gasket or seal included; strainer included
Detailed Product Overview
Delphi HP10157 is engineered for Ford F-150 and Ford F-250 trucks that use the specified midship tank configuration. The assembly is designed for gasoline applications and includes the fuel level sender, helping restore both fuel delivery and tank level reporting in one service part. With OE-focused engineering informed by Delphi’s long history supplying automakers, this hanger assembly supports a clean, direct-fit repair for aging in-tank fuel systems.
This part cross-references Airtex Fuel Pumps E2148S and Carter P74067 for the same application. The Delphi HP10157 also aligns with other listed interchange references for this vehicle coverage.
Common Problems This Part Can Address
- Hard starting caused by weak or inconsistent fuel delivery
- Engine stalling from a failing in-tank pump assembly
- Inaccurate fuel gauge readings from a worn sender
- Fuel pressure loss in gasoline truck fuel systems
- Poor drivability related to contaminated or aging tank components
Installation Notes and Tips
Before installing a replacement pump assembly, clean the fuel tank to reduce the risk of contamination-related failure. Delphi notes that fuel tank contamination is a leading cause of premature pump failure, and a fuel tank cleaning kit such as FC01 is recommended. Verify the 19-gallon midship tank configuration and confirm connector, outlet, and sender specifications before installation.
Quality Assurance
Delphi draws on more than 100 years of OE experience and a broad aftermarket portfolio built from original-equipment knowledge. HP10157 is a standard replacement fuel pump hanger assembly for select Ford truck applications, with OE-informed design and application-specific fitment.
| Year | Make | Model | Wheel Base | Position | Notes |
|---|---|---|---|---|---|
| 1986 | Ford | F-150 | 139.0" | N/A | with 19 Gallon Midship Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1986 | Ford | F-150 | 117.0" | N/A | with 19 Gallon Midship Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1985 | Ford | F-150 | 139.0" | N/A | with 19 Gallon Midship Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1985 | Ford | F-150 | 117.0" | N/A | with 19 Gallon Midship Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1985 | Ford | F-250 | — | N/A | with 19 Gallon Midship Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| No rows match your filter. | |||||
