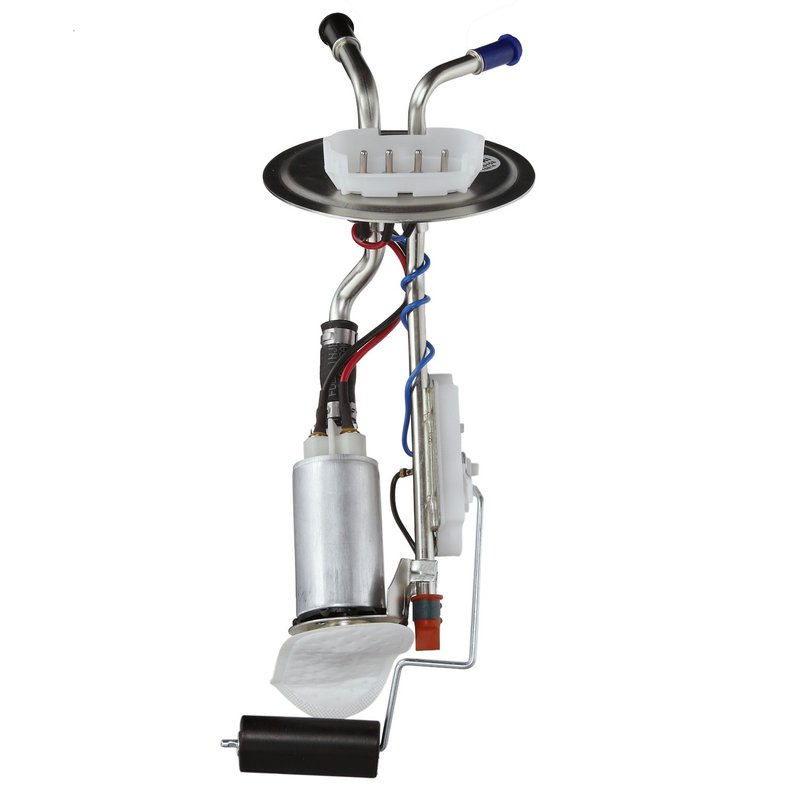

Delphi HP10158 Fuel Pump Hanger Assembly
Delphi Fuel Pump Hanger Assembly Overview
The Delphi HP10158 fuel pump hanger assembly is designed for reliable fuel delivery in Ford F-150 and F-250 trucks. This in-tank electric fuel pump assembly includes a fuel level sender and is engineered to meet standard replacement requirements for gas-powered vehicles.
- Compatible with Ford F-150 and F-250 models
- 12.0 Volt electric fuel pump with 31 GPH average flow rating
- Includes fuel level sender assembly with float arm
- Maximum pressure rating of 80 psi and system pressure of 5 psi
- Features external strainer inlet and quick connect outlet
- Comes with gasket, seal, and lock ring for secure installation
- Four male pin terminals for electrical connection
Technical Specifications and Features
The HP10158 fuel pump hanger assembly operates at 12 volts and is designed for gasoline fuel systems. It features a 0.375 inch outlet outside diameter with two quick connect outlets, ensuring efficient fuel flow. The pump’s average current draw is 6 amps, supporting a steady flow rate of 31 gallons per hour. The assembly includes an external strainer inlet to protect the pump from debris and a fuel level sender assembly with a float arm for accurate fuel measurement. Electrical connections are made via four male pin terminals, providing secure and reliable contact. The included gasket and seal help maintain a tight fit within the fuel tank, preventing leaks and contamination.
Applications and Problem Solving
- Replacement for faulty or worn fuel pump hangers in Ford F-150 and F-250 trucks
- Resolves fuel delivery issues such as low pressure or inconsistent flow
- Addresses inaccurate fuel level readings due to faulty sender assemblies
- Prevents fuel contamination with included external strainer
- Eliminates electrical connection problems with secure pin terminals
Installation Notes and Tips
Installation of the Delphi HP10158 fuel pump hanger assembly requires removal of the fuel tank. Ensure the vehicle is safely supported and the fuel system is depressurized before beginning. The included gasket, seal, and lock ring must be properly seated to prevent leaks. Connect the four male pin terminals carefully to avoid damage. Verify the fuel level sender float arm moves freely to ensure accurate fuel gauge readings. Follow all manufacturer instructions included with the assembly for best results.
Quality Assurance and Warranty
This Delphi fuel pump hanger assembly is a standard replacement part designed to meet OEM specifications for Ford F-150 and F-250 trucks. It undergoes quality control testing to ensure reliable performance and durability. The product includes a gasket and seal to maintain system integrity. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
| Brand | Delphi |
|---|---|
| Part Number | HP10158 |
| Average Current Draw | 6 |
| Average Flow Rating | 31 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Item Grade | Standard Replacement |
| Maximum Pressure | 80.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 2 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Hanger Assembly w/Float Arm, Seal, Lock Ring, Instruction Sheet |
| Pump Type | Electric |
| Resistance Ohms Empty | 70.0 |
| Resistance Ohms Full | 10.0 |
| Strainer Included | Yes |
| System Pressure | 5 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Pin |
| Voltage | 12.0 |
This part fits 10 vehicles. Search below:
| Year | Make | Model | Wheel Base | Position | Notes |
|---|---|---|---|---|---|
| 1986 | Ford | F-150 | 155.0" | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. |
| 1986 | Ford | F-150 | 139.0" | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. |
| 1986 | Ford | F-150 | 133.0" | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. |
| 1986 | Ford | F-150 | 117.0" | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. |
| 1986 | Ford | F-250 | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. | |
| 1985 | Ford | F-150 | 155.0" | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. |
| 1985 | Ford | F-150 | 139.0" | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. |
| 1985 | Ford | F-150 | 133.0" | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. |
| 1985 | Ford | F-150 | 117.0" | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. |
| 1985 | Ford | F-250 | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
