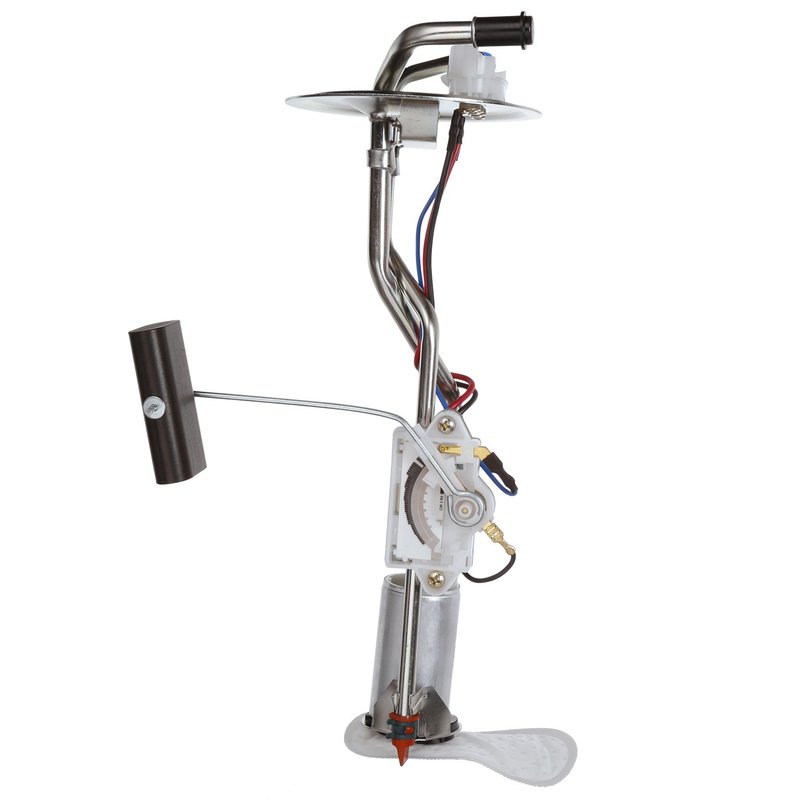

Delphi HP10165 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10165 fuel pump hanger assembly is designed specifically for Ford Ranger models requiring a reliable in-tank fuel delivery solution. This electric fuel pump hanger assembly integrates a fuel level sender and is engineered to maintain consistent fuel pressure and flow for optimal engine performance.

• Compatible with Ford Ranger vehicles
• Electric fuel pump with 12.0 volts operation
• Includes fuel level sender assembly with float arm
• Maximum pressure rating of 73 psi and system pressure of 5 psi
• External strainer inlet type with included strainer
• Quick connect outlet with 0.375 inch outside diameter
• Four male pin terminals for secure electrical connection
• Standard replacement grade with included gasket and seal
• Average flow rating of 20 liters per hour and average current draw of 7 amps

Technical Details and Specifications

The Delphi HP10165 fuel pump hanger assembly operates at 12 volts and is designed for gasoline fuel systems. It features an external strainer inlet and a quick connect outlet with a 0.375 inch outside diameter, ensuring efficient fuel flow and filtration. The assembly includes four male pin terminals for electrical connections, supporting a maximum pressure of 73 psi and maintaining a system pressure of 5 psi. The fuel pump hanger also incorporates a fuel level sender assembly with a float arm, providing accurate fuel level readings. Resistance values range from 70 ohms when empty to 10 ohms when full, supporting reliable sensor operation. This in-tank electric fuel pump hanger assembly delivers an average flow rating of 20 liters per hour with an average current draw of 7 amps, suitable for maintaining consistent fuel delivery in Ford Ranger vehicles.

Applications and Problem Resolution

• Replacement for faulty or failing fuel pump hangers in Ford Ranger models
• Resolves inconsistent fuel pressure or flow issues
• Addresses inaccurate fuel level readings due to faulty sender assemblies
• Prevents fuel delivery interruptions caused by clogged or damaged strainers
• Eliminates electrical connection problems with secure four-pin male terminals

Installation Notes and Tips

Installation of the Delphi HP10165 fuel pump hanger assembly requires removal of the fuel tank to access the in-tank components. Ensure the gasket and seal included in the package are properly seated to prevent fuel leaks. Verify electrical connections match the four-pin male terminal configuration for secure attachment. Use caution when handling the float arm to avoid damage to the fuel level sender assembly. Follow vehicle-specific service manual instructions for safe and correct installation procedures.

Quality Assurance and Warranty

This Delphi fuel pump hanger assembly is a standard replacement part manufactured to meet OEM specifications for Ford Ranger vehicles. It includes a gasket and seal to ensure proper installation and fuel system integrity. Delphi products undergo rigorous quality control testing to ensure durability and reliable performance. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
