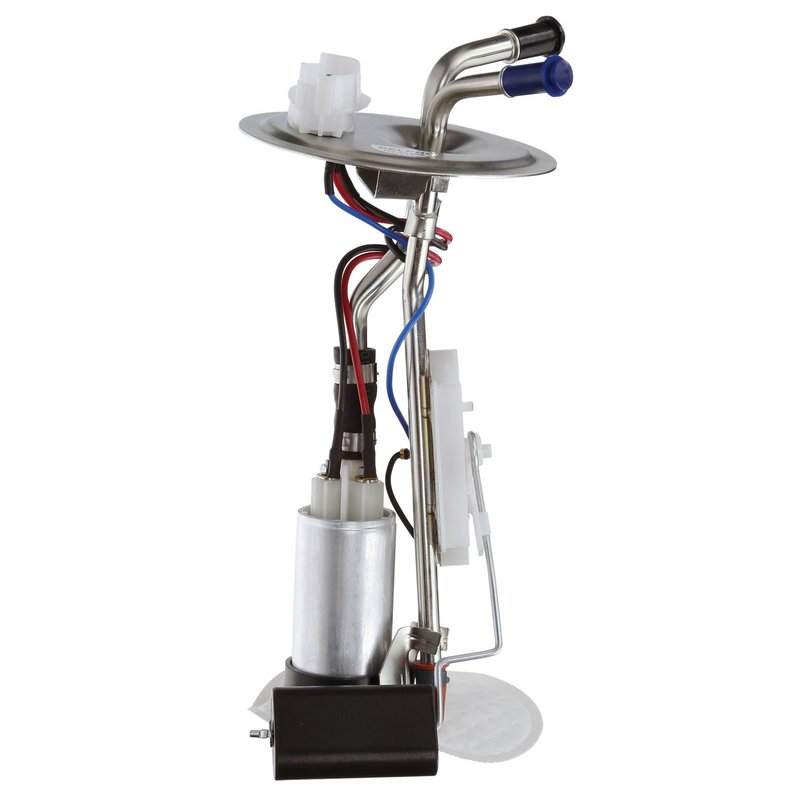

Delphi HP10166 Fuel Pump Hanger Assembly
Delphi Fuel Pump Hanger Assembly Overview
The Delphi HP10166 fuel pump hanger assembly is designed for reliable fuel delivery in Ford Ranger vehicles. This in-tank electric fuel pump assembly includes a fuel level sender and is engineered to meet standard replacement specifications for gas-powered engines.
- Compatible with Ford Ranger models
- 12.0 Volt electric fuel pump with 4.5 psi system pressure
- Includes external strainer and fuel level sender assembly
- Quick connect outlet with 0.375 inch outside diameter
- Comes with gasket, seal, and lock ring for secure installation
Technical Specifications and Features
The Delphi HP10166 fuel pump hanger assembly operates at 12 volts and is designed for gasoline fuel systems. It features a maximum pressure rating of 6.5 psi and maintains a system pressure of 4.5 psi, ensuring consistent fuel flow. The pump has an average flow rating of 29 gallons per hour and draws approximately 7 amps of current during operation. The assembly includes four male pin terminals for electrical connections and two quick connect outlets with a 0.375 inch outside diameter for efficient fuel delivery.
This assembly is equipped with an external strainer on the inlet side to filter contaminants before fuel enters the pump. The fuel level sender assembly is integrated with a float arm to provide accurate fuel level readings. Resistance values range from 70 ohms when empty to 10 ohms when full, supporting precise fuel gauge operation.
Applications and Problem Resolution
- Replacement for faulty or worn fuel pump hangers in Ford Ranger gas engines
- Resolves inconsistent fuel pressure or flow issues
- Addresses fuel level sender malfunctions causing inaccurate gauge readings
- Eliminates fuel leaks with included gasket and seal components
- Improves fuel system reliability by filtering debris with the external strainer
Installation Notes and Tips
Installation of the Delphi HP10166 fuel pump hanger assembly requires removal of the fuel tank to access the in-tank pump. Ensure all electrical connections use the four male pin terminals provided and verify the quick connect outlets are securely attached to fuel lines. Replace the included gasket and seal to prevent leaks. Follow vehicle-specific service manual instructions for safe handling of fuel system components and proper torque specifications for the lock ring.
Quality Assurance and Warranty
This Delphi fuel pump hanger assembly is manufactured to meet standard replacement quality grades. It includes all necessary components such as the float arm, seal, and lock ring to ensure a complete installation. Delphi products typically come with a limited warranty covering defects in materials and workmanship; please refer to Delphi's official warranty documentation for specific terms related to part number HP10166.
| Brand | Delphi |
| Part Number | HP10166 |
| Average Current Draw | 7 |
| Average Flow Rating | 29 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Item Grade | Standard Replacement |
| Maximum Pressure | 6.5 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 2 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Hanger Assembly w/Float Arm, Seal, Lock Ring, Instruction Sheet |
| Pump Type | Electric |
| Resistance Ohms Empty | 70.0 |
| Resistance Ohms Full | 10.0 |
| Strainer Included | Yes |
| System Pressure | 4.5 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Pin |
| Voltage | 12.0 |
This part fits 13 vehicles. Search below:
| Year | Make | Model | Body Type | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|
| 1988 | Ford | Ranger | Standard Cab Pickup | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. | |
| 1988 | Ford | Ranger | Extended Cab Pickup | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. | |
| 1987 | Ford | Ranger | Stripped Chassis | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. | |
| 1987 | Ford | Ranger | Standard Cab Pickup | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. | |
| 1987 | Ford | Ranger | Extended Cab Pickup | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. | |
| 1987 | Ford | Ranger | Cab & Chassis | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. | |
| 1987 | Ford | Ranger | Extended Cab Pickup | GAS | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. |
| 1986 | Ford | Ranger | Stripped Chassis | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. | |
| 1986 | Ford | Ranger | Standard Cab Pickup | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. | |
| 1986 | Ford | Ranger | Extended Cab Pickup | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. | |
| 1986 | Ford | Ranger | Cab & Chassis | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. | |
| 1986 | Ford | Ranger | Extended Cab Pickup | GAS | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. |
| 1985 | Ford | Ranger | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
