Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

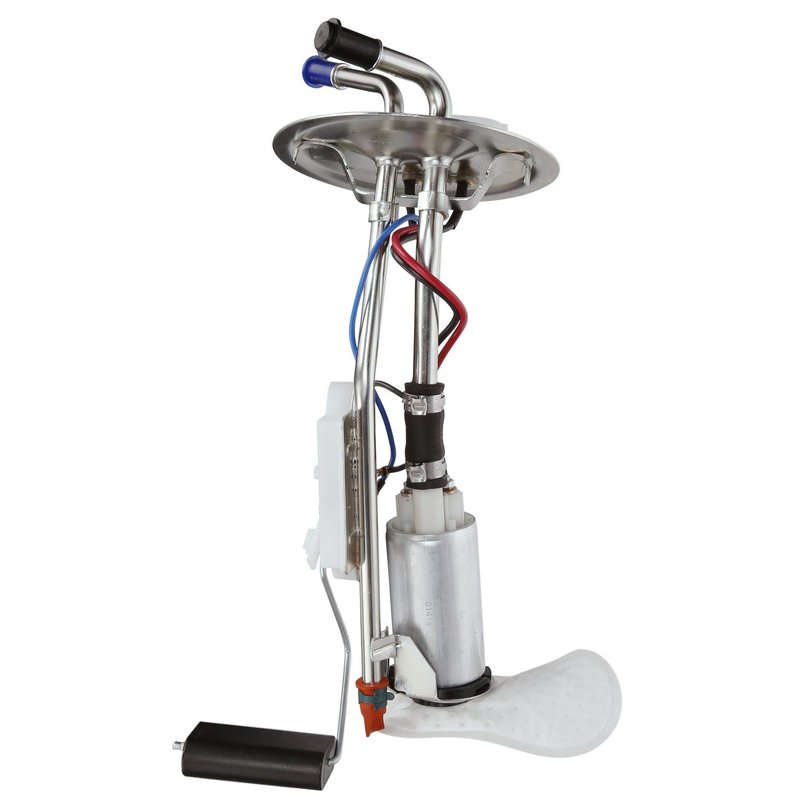

Delphi HP10170 Fuel Pump Hanger Assembly
| Brand | Delphi HP10170 |
|---|---|
| Average Current Draw | 6 |
| Average Flow Rating | 32 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Item Grade | Standard Replacement |
| Maximum Pressure | 73.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 2 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Hanger Assembly w/Float Arm, Seal, Lock Ring, Instruction Sheet |
| Pump Type | Electric |
| Resistance Ohms Empty | 10.0 |
| Resistance Ohms Full | 160.0 |
| Strainer Included | Yes |
| System Pressure | 5 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Pin |
| Voltage | 12.0 |
| Fits | Ford · 9 vehicles |
Standard replacement. OE heritage and knowledge built into every aftermarket part.
Electric fuel pump. Delivers 32 average flow rating with 73 maximum pressure.
Complete assembly. Includes hanger, float arm, seal, lock ring, and instruction sheet.
Cross-references Airtex Fuel Pumps E2102S, Spectra Premium SP222H and Spectra Premium SP1138 for the same application. See all 7.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi HP10170 Fuel Pump Hanger Assembly
The Delphi HP10170 fuel pump hanger assembly is a standard replacement for in-tank gasoline fuel systems that need a reliable hanger, sender, seal, and strainer setup. Built from Delphi’s OE experience, it is made for 1987-1989 Ford F-150 and Ford F-250 applications with a 17-gallon midship tank.
Key Features
- In-tank electric fuel pump hanger assembly for gasoline applications
- 12.0-volt design with a 73.0 maximum pressure rating
- Quick-connect outlet design with two outlets and 0.375 in. outlet outside diameter
- Fuel level sender assembly included with 10.0 ohms empty and 160.0 ohms full resistance
- External strainer included, along with seal, lock ring, and instruction sheet
- Average flow rating of 32 and average current draw of 6
- Standard replacement part number HP10170 for service and repair work
Detailed Description
Delphi HP10170 is an in-tank fuel pump hanger assembly for gasoline systems that require a direct replacement with the fuel sender integrated into the assembly. It uses a pin-style, 4-terminal male connection and a quick-connect outlet layout for service-friendly installation. Delphi’s OE heritage is reflected in the component design, giving Ford F-150 and Ford F-250 owners a replacement built around factory-style fitment and fuel delivery requirements. This part cross-references Airtex Fuel Pumps E2102S for the same application.
What It Helps Address
- Hard starting caused by weak or inconsistent fuel delivery
- Fuel gauge readings that are inaccurate or intermittent
- Low fuel pressure in an in-tank gasoline system
- Poor drivability related to a failing hanger or sender assembly
- Service replacement needs on 1987-1989 Ford F-150 and Ford F-250 with a 17-gallon midship tank
Installation Notes and Tips
Fits 1987-1989 Ford F-150, N/A, with 17 Gallon Midship Tank. Fits 1987-1989 Ford F-250, N/A, with 17 Gallon Midship Tank. Two fuel pumps may be required on these applications: one externally mounted and one mounted in tank. Clean the fuel tank before installation to reduce the risk of contamination-related pump failure; Delphi recommends using fuel tank cleaning kit FC01. Verify connector style, outlet type, and sender resistance before installation.
Quality Assurance
Delphi builds this fuel pump hanger assembly using OE experience and application knowledge developed through long-term supplier relationships with major automakers. The HP10170 is a standard replacement part designed for consistent fuel system service on the listed Ford applications.
| Year | Make | Model | Wheel Base | Position | Notes |
|---|---|---|---|---|---|
| 1989 | Ford | F-150 | 139.0" | N/A | with 17 Gallon Midship Tank; 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1989 | Ford | F-150 | 117.0" | N/A | with 17 Gallon Midship Tank; 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1989 | Ford | F-250 | — | N/A | with 17 Gallon Midship Tank; 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1988 | Ford | F-150 | 139.0" | N/A | with 17 Gallon Midship Tank; 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1988 | Ford | F-150 | 117.0" | N/A | with 17 Gallon Midship Tank; 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1988 | Ford | F-250 | — | N/A | with 17 Gallon Midship Tank; 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1987 | Ford | F-150 | 139.0" | N/A | with 17 Gallon Midship Tank; 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1987 | Ford | F-150 | 117.0" | N/A | with 17 Gallon Midship Tank; 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1987 | Ford | F-250 | — | N/A | with 17 Gallon Midship Tank; 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
