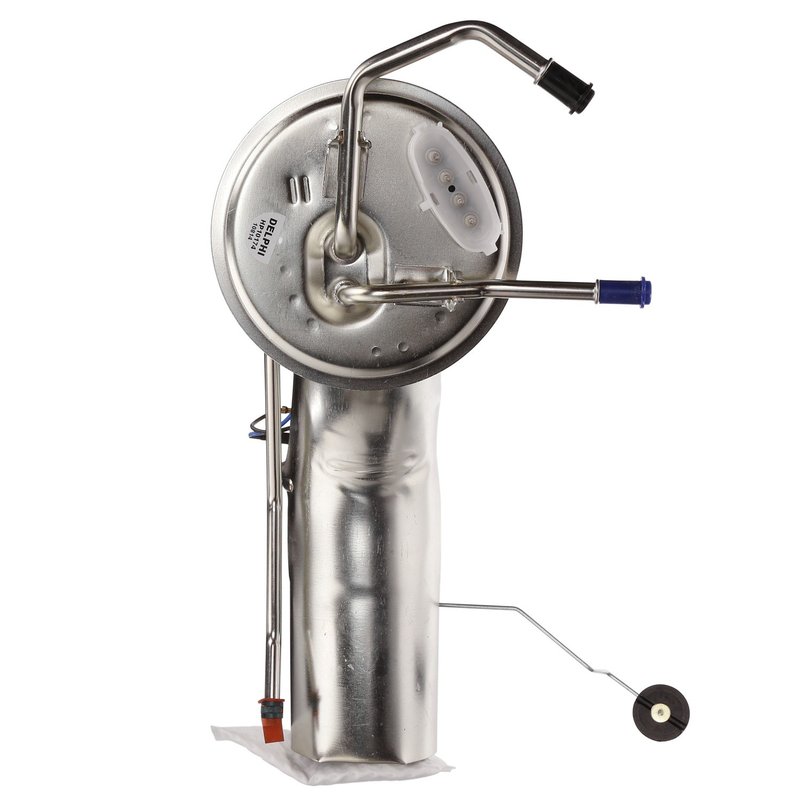

Delphi HP10174 Fuel Pump Hanger Assembly

Fuel Pump Hanger Assembly for 1990 Lincoln Town Car

Delphi HP10174 is a standard replacement fuel pump hanger assembly for gas applications with in-tank mounting. Built from Delphi’s OE-focused engineering background, it combines the fuel pump, sender, seal, lock ring, and float arm into one service assembly for the 1990 Lincoln Town Car, from 04/1990.

Key Features

• 12.0-volt electric fuel pump hanger assembly for gasoline systems
• In-tank design with quick-connect outlet and pin-style terminals
• Includes fuel level sender assembly, float arm, seal, lock ring, and instruction sheet
• Maximum pressure rating of 73.0 and system pressure of 36 psi
• Average flow rating of 57 with average current draw of 6
• External strainer included for fuel pickup protection
• Fuel level sender resistance: 16.0 ohms empty, 160.0 ohms full
• Delphi HP10174 cross-references Airtex E2044 for the same application

Detailed Description

Delphi HP10174 is engineered as an OE-style fuel pump hanger assembly for the 1990 Lincoln Town Car. It is built for in-tank gasoline fuel delivery and includes the pump, sender, float arm, seal, lock ring, and strainer components needed for a complete service replacement. With a 0.375-inch outlet outside diameter, two quick-connect outlets, and four male pin terminals, this assembly is configured for direct fuel system service on the Town Car application listed here. Delphi draws on more than a century of OE experience and a broad aftermarket portfolio to deliver a replacement part that reflects original-equipment design knowledge.

Common Repair Symptoms

• Hard starting or extended cranking from weak fuel delivery
• Engine hesitation, stumble, or loss of power under load
• Inaccurate fuel gauge readings from a worn sender
• Fuel pump noise caused by a failing in-tank assembly
• Low fuel pressure that affects drivability

Installation Notes and Tips

Fits 1990 Lincoln Town Car, N/A, from 04/1990. Before installing Delphi HP10174, clean the fuel tank to reduce the chance of contamination reaching the replacement pump. Delphi recommends using fuel tank cleaning kit FC01 for this service. Confirm connector style, outlet routing, and sender specifications before installation, and verify the tank is properly sealed after assembly.

Quality Assurance

Delphi builds this fuel pump hanger assembly using OE heritage and application knowledge developed through long-term supplier experience with major automakers. HP10174 is a standard replacement part intended to restore fuel delivery and fuel level sensing performance on the listed Lincoln Town Car application.
