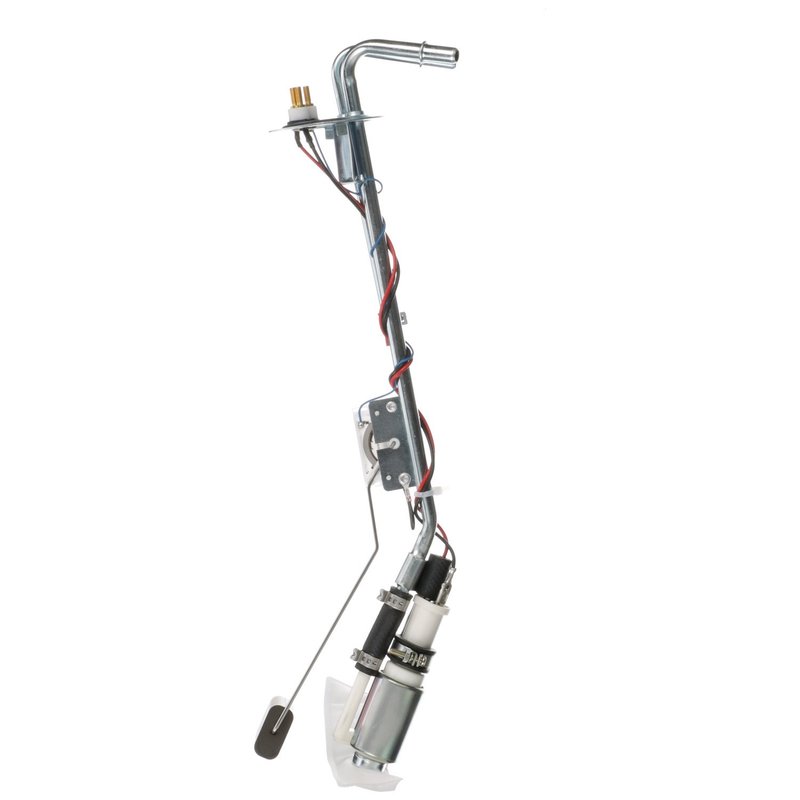

Delphi HP10181 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly for Ford Bronco

The Delphi HP10181 fuel pump hanger assembly is designed specifically for Ford Bronco models requiring reliable in-tank fuel delivery components. This electric fuel pump hanger assembly integrates a fuel level sender and is engineered to maintain consistent fuel pressure and flow for optimal engine performance.

• Compatible with Ford Bronco vehicles
• Electric fuel pump with 12.0 volts operation
• Maximum pressure rating of 73 psi and system pressure of 30 psi
• Includes fuel level sender assembly with float arm
• Features external strainer inlet and quick connect outlet
• Comes with gasket, seals, and retainer clips for secure installation
• Three male pin terminals with 0.375 inch outlet outside diameter
• Average flow rating of 50 liters per hour and average current draw of 6 amps

Technical Details and Specifications

The Delphi HP10181 fuel pump hanger assembly operates at 12 volts and is designed for gasoline fuel systems. It features a durable electric pump capable of maintaining a maximum pressure of 73 psi, with a system pressure set at 30 psi to ensure consistent fuel delivery. The assembly includes an external strainer inlet to filter contaminants before fuel enters the pump, and a quick connect outlet with two outlets sized at 0.375 inches outside diameter for efficient fuel flow. The unit incorporates a fuel level sender assembly with a float arm, providing accurate fuel level readings. Electrical connections are made via three male pin terminals, with resistance values ranging from 70 ohms when empty to 10 ohms when full, supporting reliable sensor feedback. The package includes two seals and two retainer clips to facilitate proper sealing and secure mounting within the fuel tank.

Applications and Problem Solving

• Replacement for faulty or worn fuel pump hanger assemblies in Ford Bronco models
• Resolves inconsistent fuel pressure or flow issues affecting engine performance
• Addresses inaccurate fuel level readings due to faulty sender assemblies
• Prevents fuel contamination with included external strainer
• Eliminates electrical connection problems with secure pin terminal design

Installation Notes and Tips

Installation of the Delphi HP10181 fuel pump hanger assembly requires removal of the fuel tank to access the in-tank assembly. Ensure all electrical connections are clean and secure, matching the three male pin terminals to the vehicle harness. Replace all included seals and gaskets to prevent fuel leaks. Verify the quick connect outlets are properly seated to maintain fuel system integrity. It is recommended to inspect the fuel tank for debris and clean as necessary before installation.

Quality Assurance and Warranty

Delphi provides this fuel pump hanger assembly as a standard replacement part engineered to meet OEM specifications for Ford Bronco vehicles. The product includes a fuel level sender assembly and is tested for electrical and mechanical reliability. Warranty coverage details should be confirmed with the point of purchase or Delphi directly, ensuring confidence in product durability and performance.
