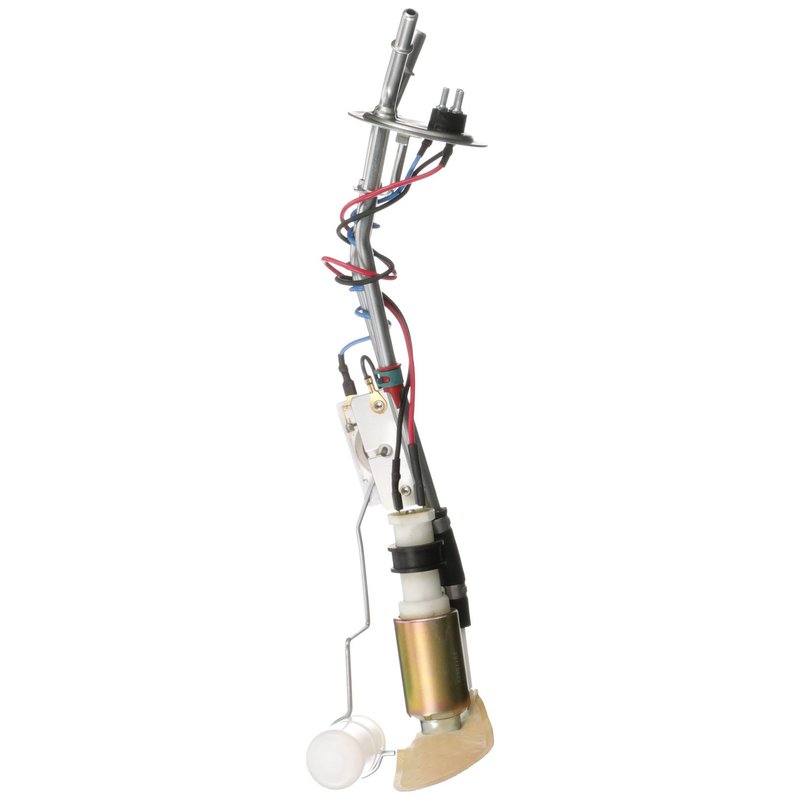

Delphi HP10182 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10182 Fuel Pump Hanger Assembly is designed specifically for Ford F-250 and F-350 models. This in-tank electric fuel pump hanger assembly ensures reliable fuel delivery with integrated components for efficient operation.

• Compatible with Ford F-250 and F-350 trucks
• 12.0 Volt electric pump with a maximum pressure of 73 psi
• Includes fuel level sender assembly with float arm
• External strainer inlet and quick connect outlet design
• Comes with gasket, seal, and two retainer clips for secure installation

Technical Specifications and Features

The Delphi HP10182 features a 0.375-inch outlet outside diameter and operates at 12 volts, suitable for gasoline fuel systems. It delivers an average flow rating of 50 liters per hour and maintains system pressure at 4 psi. The assembly includes three male pin terminals and an external strainer inlet to protect the pump from debris. Resistance values range from 70 ohms when empty to 10 ohms when full, ensuring accurate fuel level readings. The package contains the fuel pump hanger assembly with float arm, seal, and two retainer clips for a complete replacement solution.

Applications and Problem Resolution

This fuel pump hanger assembly is used primarily in the fuel delivery system of Ford F-250 and F-350 trucks. It addresses several common issues including:

• Fuel pump failure causing engine stalling or no-start conditions
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel leaks from worn or missing seals and gaskets
• Reduced fuel flow affecting engine performance
• Contamination from debris entering the fuel system

Installation Notes and Tips

Installation of the Delphi HP10182 requires removal of the fuel tank to access the in-tank assembly. Ensure the gasket and seal are properly seated to prevent leaks. The quick connect outlet simplifies fuel line attachment, and the three-pin male terminals should be securely connected to the vehicle wiring harness. It is recommended to inspect the fuel tank for debris and clean as necessary before installation. Use the included retainer clips to secure the assembly firmly in place.

Quality Assurance and Warranty

Delphi manufactures the HP10182 Fuel Pump Hanger Assembly to meet standard replacement grade specifications. The assembly includes a fuel level sender and strainer to maintain system integrity. While specific warranty details are not provided, Delphi products typically adhere to OEM quality standards to ensure reliable performance in Ford F-250 and F-350 applications.
