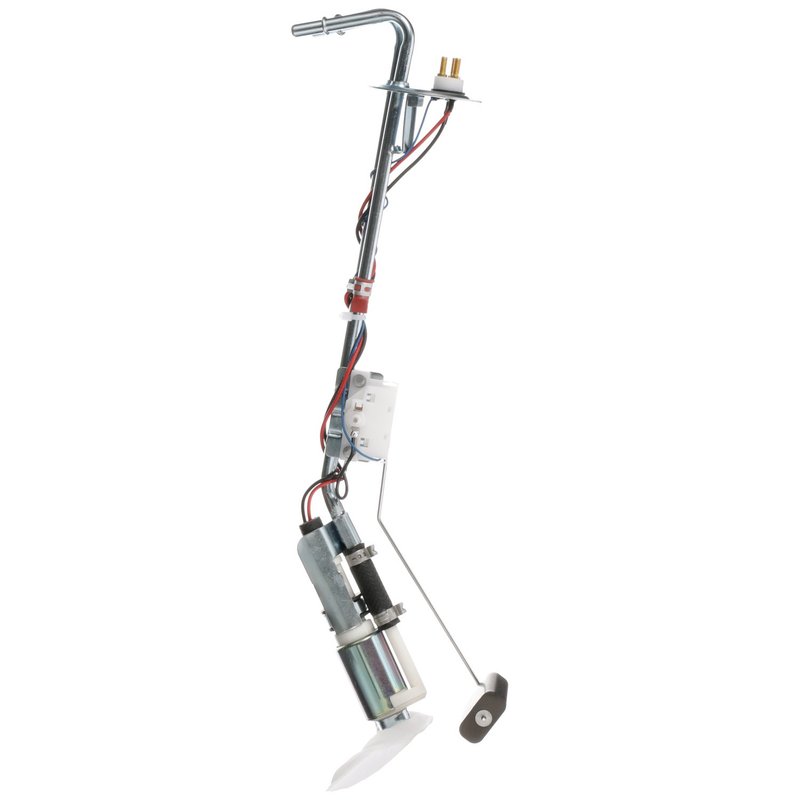

Delphi HP10185 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly for Ford Bronco

The Delphi HP10185 fuel pump hanger assembly is designed specifically for Ford Bronco models requiring reliable in-tank fuel delivery components. This electric fuel pump assembly ensures consistent fuel flow and accurate fuel level readings for optimal engine performance.

• Compatible with Ford Bronco vehicles
• Electric fuel pump with 12.0 volts operation
• Maximum pressure rating of 73 psi and system pressure of 36 psi
• Includes fuel level sender assembly with float arm
• Features external strainer inlet and quick connect outlet
• Comes with two seals and two retainer clips for secure installation
• Three male pin terminals for electrical connection
• Average flow rating of 52 liters per hour and average current draw of 7 amps
• Standard replacement grade for dependable performance

Product Details and Specifications

The Delphi HP10185 fuel pump hanger assembly is engineered for in-tank installation in Ford Bronco vehicles. It operates at 12 volts and delivers a maximum pressure of 73 psi, with a system pressure of 36 psi to maintain consistent fuel supply. The assembly includes an external strainer inlet type and a quick connect outlet with an outside diameter of 0.375 inches, supporting two outlet connections. The unit features three male pin terminals for secure electrical connections and comes with a fuel level sender assembly that includes a float arm for accurate fuel measurement. Resistance values range from 15 ohms when empty to 160 ohms when full, ensuring precise fuel level readings. The package includes the fuel pump hanger assembly, two seals, and two retainer clips for proper sealing and mounting.

Applications and Problem Solving

• Replaces faulty or worn fuel pump hangers in Ford Bronco models
• Resolves inconsistent fuel pressure or flow issues
• Corrects inaccurate fuel level readings caused by damaged sender assemblies
• Addresses fuel delivery interruptions due to clogged or damaged strainers
• Improves electrical connectivity with reliable pin terminal design

Installation Notes and Tips

Installation of the Delphi HP10185 fuel pump hanger assembly requires removal of the fuel tank for in-tank access. Ensure all electrical connections are clean and secure, matching the three male pin terminals to the corresponding harness connectors. Replace the included seals and retainer clips to prevent fuel leaks and maintain proper sealing. Verify the fuel pressure and flow after installation to confirm correct operation. It is recommended to handle the fuel pump assembly carefully to avoid damage to the strainer and float arm components.

Quality Assurance and Warranty

This Delphi fuel pump hanger assembly is a standard replacement grade part designed to meet OEM specifications for Ford Bronco vehicles. It includes a gasket and seal to ensure leak-free installation. Delphi products undergo rigorous testing to ensure durability and performance. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
