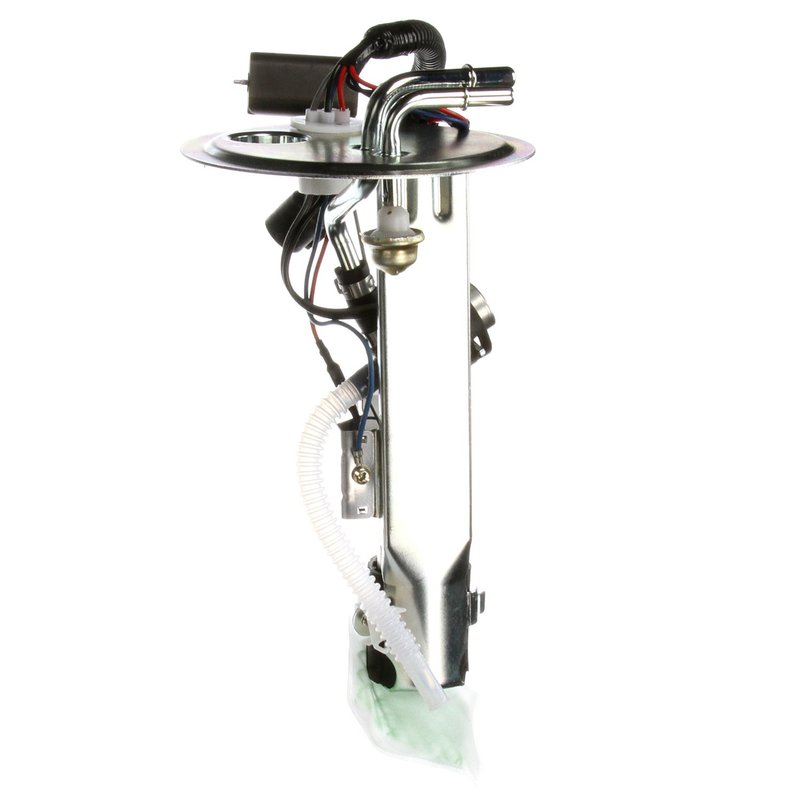

Delphi HP10188 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly for Ford Ranger

The Delphi HP10188 fuel pump hanger assembly is designed specifically for Ford Ranger models requiring a reliable in-tank fuel delivery solution. This electric fuel pump assembly integrates a fuel level sender and strainer to ensure consistent fuel flow and accurate fuel level readings.

Key Features of Delphi HP10188 Fuel Pump Hanger Assembly

• Compatible with Ford Ranger fuel systems
• 12.0 Volt electric pump with a maximum pressure of 94 psi
• Includes fuel level sender assembly with float arm for precise fuel measurement
• External strainer inlet type with quick connect outlet (0.375 inch diameter)
• Seven male pin terminals for secure electrical connections
• Comes with gasket/seal and two retainer clips for proper installation
• Average flow rating of 29 gallons per hour and system pressure of 65 psi

Detailed Description of the Delphi HP10188 Fuel Pump Hanger Assembly

This Delphi fuel pump hanger assembly (part number HP10188) is engineered as a standard replacement part for Ford Ranger vehicles. The in-tank electric pump operates at 12 volts and delivers an average flow rate of 29 gallons per hour, maintaining system pressure at 65 psi to support optimal engine performance. The assembly features an external strainer inlet and a quick connect outlet with a 0.375-inch outside diameter, ensuring efficient fuel filtration and connection. The included fuel level sender assembly with float arm provides accurate fuel level readings, supported by resistance values ranging from 15 ohms (empty) to 160 ohms (full). The seven male pin terminals facilitate reliable electrical connections, while the package includes a gasket seal and retainer clips to secure the assembly within the fuel tank.

Common Applications and Issues Addressed

• Replacement for faulty or failing fuel pump hangers in Ford Ranger models
• Resolves inconsistent fuel pressure or flow problems
• Fixes inaccurate fuel gauge readings due to faulty sender assemblies
• Addresses fuel delivery interruptions caused by clogged or damaged strainers
• Eliminates electrical connection issues with secure pin terminals

Installation Notes and Tips

• Ensure compatibility with your specific Ford Ranger model before installation
• Handle the fuel pump assembly carefully to avoid damage to the float arm and strainer
• Replace the gasket seal during installation to prevent fuel leaks
• Verify all electrical connections are secure and terminals are properly aligned
• Test fuel pressure and fuel level readings after installation to confirm proper operation

Quality Assurance and Warranty Information

The Delphi HP10188 fuel pump hanger assembly is manufactured to meet standard replacement quality requirements. It includes a gasket seal and retainer clips to ensure a secure and leak-free installation. Delphi provides a limited warranty covering defects in materials and workmanship, supporting reliable performance for Ford Ranger fuel delivery systems.
