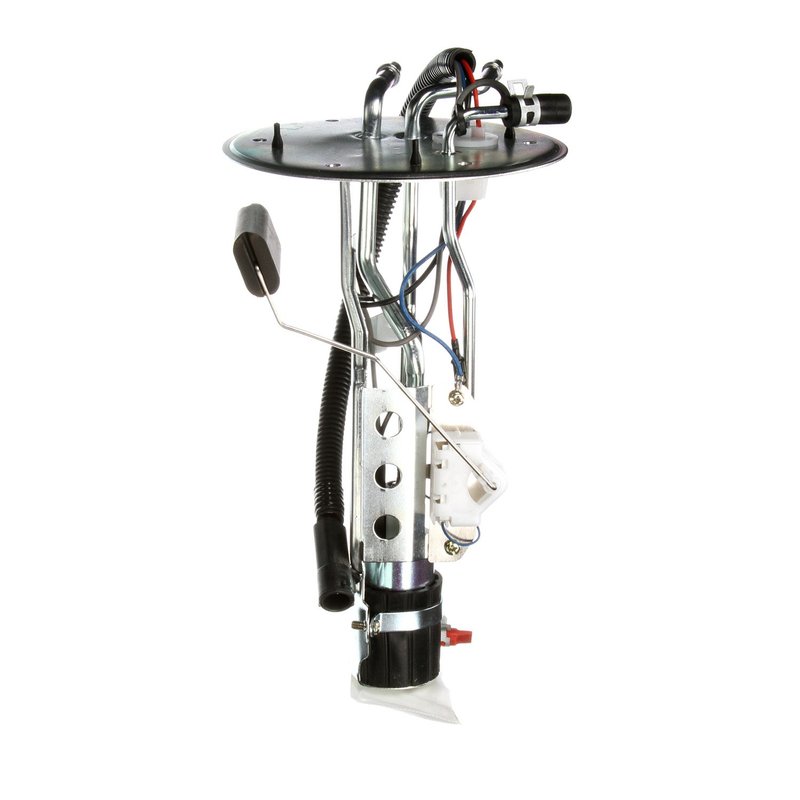

Delphi HP10189 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10189 fuel pump hanger assembly is designed for reliable fuel delivery in select Ford Econoline models. This in-tank electric fuel pump assembly includes a fuel level sender and is engineered to meet the specific requirements of Ford E-150 Econoline, E-150 Econoline Club Wagon, and E-250 Econoline vehicles.

• Compatible with Ford E-150 Econoline, E-150 Econoline Club Wagon, and E-250 Econoline
• 12.0 Volt electric fuel pump with a maximum pressure of 94 psi
• Includes fuel level sender assembly and external strainer
• Quick connect outlet with 0.375 inch outside diameter
• Comes with gasket, six bolts, and washers for installation

Technical Specifications and Features

The HP10189 fuel pump hanger assembly operates at 12 volts and is designed for gasoline fuel systems. It features a maximum pressure rating of 94 psi and a system pressure of 44 psi, ensuring consistent fuel delivery. The assembly includes an external strainer inlet and a quick connect outlet with three outlets, each having a 0.375 inch outside diameter. The unit has four male pin terminals and includes a fuel level sender assembly with resistance values of 15 ohms when empty and 160 ohms when full. Average current draw is 10 amps with a flow rating of 34 gallons per hour, suitable for maintaining optimal engine performance in compatible Ford Econoline models.

Application and Common Issues Addressed

• Replaces faulty or worn fuel pump hangers in Ford E-150 and E-250 Econoline vehicles
• Resolves fuel delivery problems such as low pressure or inconsistent flow
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel contamination issues with included external strainer
• Eliminates electrical connection failures with secure pin terminal design

Installation Notes and Tips

Installation of the Delphi HP10189 requires removal of the fuel tank to access the in-tank assembly. Ensure all electrical connections are clean and secure, especially the four male pin terminals. The included gasket and mounting hardware (six bolts and washers) should be used to prevent leaks and ensure a proper seal. Verify the quick connect outlet is properly seated to avoid fuel leaks. It is recommended to inspect the fuel tank and lines for debris before installation to prolong pump life.

Quality Assurance and Warranty

This Delphi fuel pump hanger assembly is a standard replacement part manufactured to meet OEM specifications for Ford Econoline vehicles. It includes a gasket and strainer to maintain system integrity. Delphi products typically come with a limited warranty covering defects in materials and workmanship; please refer to Delphi's official warranty documentation for specific terms.
