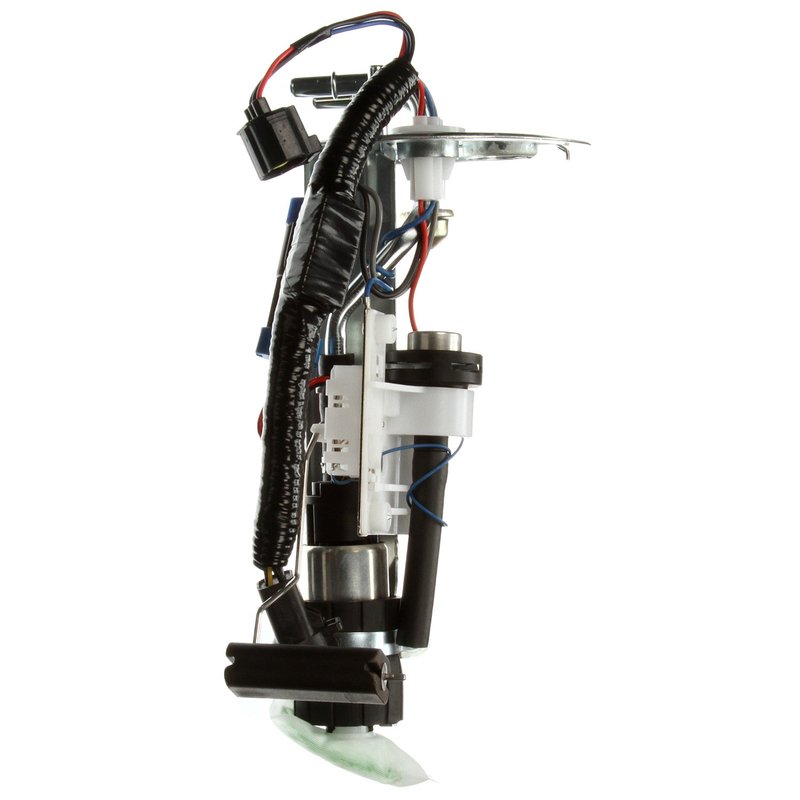

Delphi HP10193 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10193 fuel pump hanger assembly is designed for reliable fuel delivery in Ford Ranger and Mazda B3000 models. This in-tank electric fuel pump assembly includes a fuel level sender and is engineered to meet standard replacement specifications for gas-powered vehicles.

• Compatible with Ford Ranger and Mazda B3000
• 12.0 Volt electric fuel pump with 40 GPH average flow rating
• Includes fuel level sender assembly with float arm
• Maximum pressure rating of 94 psi and system pressure of 58 psi
• Features external strainer inlet and quick connect outlet (0.375 inch diameter)
• Comes with gasket/seal and two retainer clips for secure installation
• Eight male pin terminals for electrical connections

Technical Specifications and Features

The HP10193 fuel pump hanger assembly operates at 12 volts and is designed for gasoline fuel systems. It features an electric pump type with an average current draw of 5 amps, ensuring efficient fuel delivery. The assembly includes an external strainer inlet and a quick connect outlet with a 0.375-inch outside diameter, supporting two outlet connections. The fuel level sender assembly is integrated with a float arm to provide accurate fuel level readings. Electrical connections are made via eight male pin terminals, with resistance values ranging from 15 ohms (empty) to 160 ohms (full). The assembly is rated for a maximum pressure of 94 psi and a system pressure of 58 psi, suitable for maintaining consistent fuel flow in the specified vehicles.

Applications and Problem Resolution

This fuel pump hanger assembly is specifically compatible with Ford Ranger and Mazda B3000 models, providing a direct replacement for worn or faulty fuel pump components. It addresses common fuel system issues such as:

• Intermittent or no fuel delivery causing engine stalling
• Inaccurate fuel level readings due to faulty sender units
• Fuel leaks from damaged seals or connectors
• Reduced fuel pressure affecting engine performance
• Electrical connection failures within the fuel pump assembly

Installation Notes and Tips

Installation of the Delphi HP10193 requires removal of the fuel tank to access the in-tank assembly. Ensure the gasket or seal included is properly seated to prevent fuel leaks. Verify all eight male pin terminals are securely connected to the vehicle’s wiring harness. The quick connect outlet facilitates straightforward fuel line attachment. It is recommended to inspect the fuel strainer for debris and replace if necessary during installation. Follow all safety precautions when working with fuel system components.

Quality Assurance and Warranty

Delphi manufactures the HP10193 fuel pump hanger assembly to meet standard replacement grade specifications, ensuring compatibility and reliable operation in Ford Ranger and Mazda B3000 vehicles. The assembly includes a fuel level sender and necessary seals for a complete replacement solution. While specific warranty details are not provided, Delphi products typically adhere to industry standards for durability and performance.
