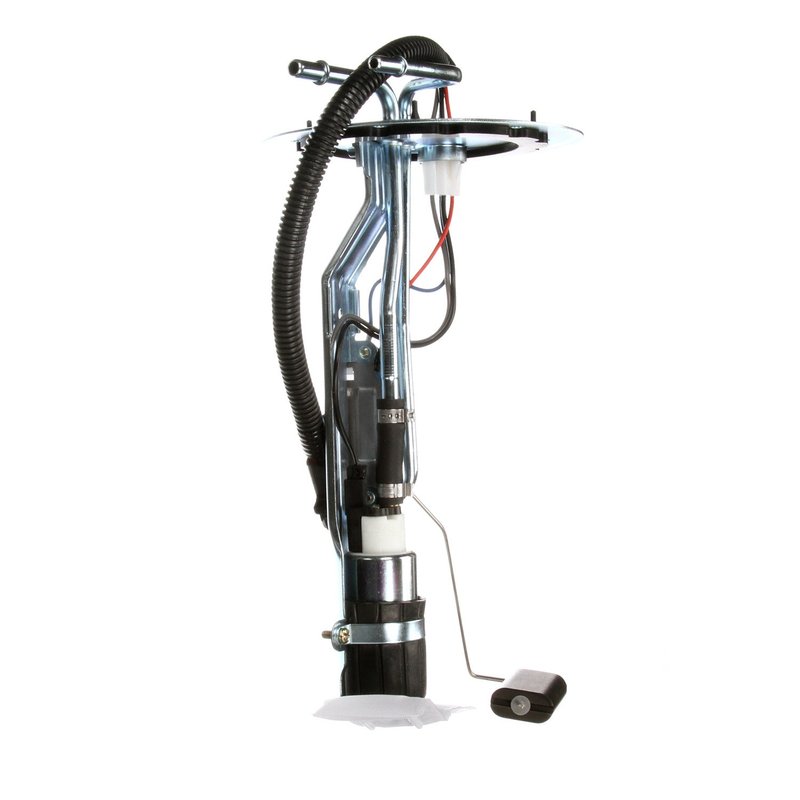

Delphi HP10194 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly for Lincoln Blackwood

The Delphi HP10194 fuel pump hanger assembly is designed specifically for the Lincoln Blackwood, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump assembly ensures consistent performance with its integrated fuel level sender and external strainer.

• Compatible with Lincoln Blackwood models
• 12.0 Volt electric fuel pump with 44 psi system pressure
• Includes fuel level sender assembly with float arm
• External strainer inlet and quick connect outlet (0.375 inch diameter)
• Four male pin terminals for secure electrical connections
• Gasket and seal included for proper installation
• Standard replacement grade with average flow rating of 48

Technical Details and Features

The Delphi HP10194 fuel pump hanger assembly operates at 12 volts and is designed for gasoline fuel systems. It features a maximum pressure rating of 94 psi and a system pressure of 44 psi, suitable for maintaining optimal fuel delivery in the Lincoln Blackwood. The assembly includes an external strainer inlet to protect the pump from debris and a quick connect outlet with a 0.375-inch outside diameter for efficient fuel flow. The four male pin terminals provide reliable electrical connections, and the included gasket or seal ensures a secure fit within the fuel tank. Additionally, the fuel level sender assembly with float arm allows for accurate fuel level monitoring.

Applications and Problem Solving

• Replaces faulty or worn fuel pump hangers in Lincoln Blackwood vehicles
• Resolves fuel delivery issues such as low pressure or inconsistent flow
• Fixes inaccurate fuel gauge readings due to faulty sender assemblies
• Prevents fuel contamination with the included external strainer
• Addresses electrical connection problems with secure pin terminals

Installation Notes and Tips

Installation of the Delphi HP10194 fuel pump hanger assembly requires removal of the fuel tank or access through the service panel. Ensure the gasket or seal is properly seated to prevent leaks. Verify electrical connections match the four male pin terminals and confirm the quick connect outlet is securely attached. It is recommended to inspect the fuel tank for debris before installation and replace any worn mounting hardware. Follow vehicle-specific service manual instructions for safe and correct installation procedures.

Quality Assurance and Warranty

This Delphi fuel pump hanger assembly is a standard replacement part manufactured to meet OEM specifications for the Lincoln Blackwood. It includes a fuel level sender assembly and strainer to maintain system integrity. Delphi parts are tested for durability and performance to ensure reliable operation. Warranty coverage details should be confirmed with the parts provider or vehicle manufacturer.
