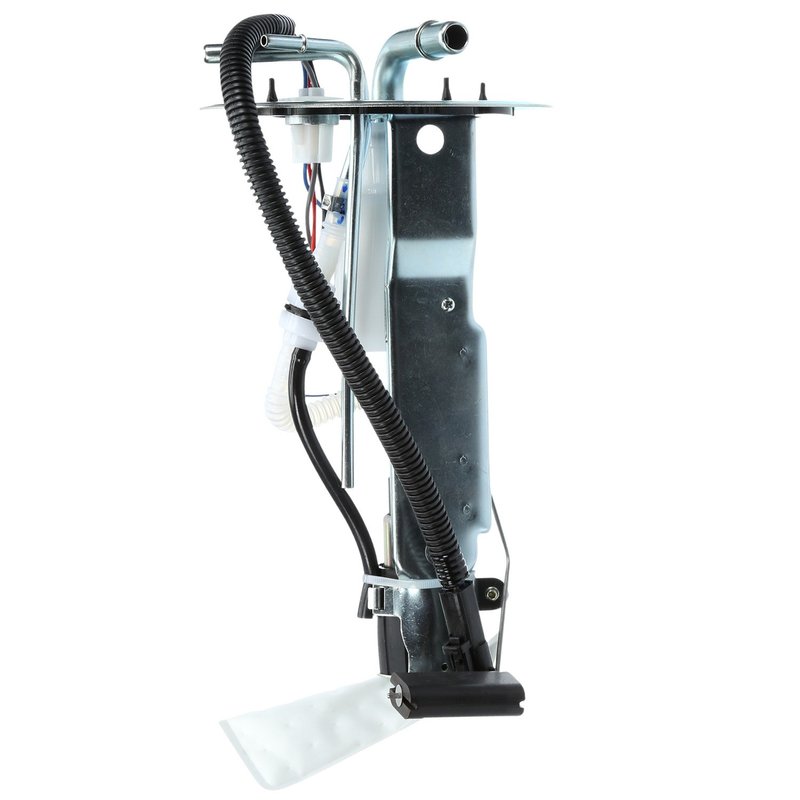

Delphi HP10195 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10195 fuel pump hanger assembly is designed for reliable fuel delivery in select Ford vehicles. Engineered for in-tank installation, this electric fuel pump assembly ensures consistent fuel pressure and flow for Ford E-150, E-150 Club Wagon, E-250, E-350 Club Wagon, and E-350 Super Duty models.

• Compatible with Ford E-150, E-150 Club Wagon, E-250, E-350 Club Wagon, and E-350 Super Duty
• 12.0 Volt electric fuel pump with a maximum pressure of 94 psi
• Includes fuel level sender assembly and external strainer for fuel filtration
• Quick connect outlet with 0.375 inch outside diameter and three outlet ports
• Four male pin terminals for secure electrical connections
• Standard replacement grade with gasket and seal included
• Average flow rating of 26 gallons per hour and system pressure of 44 psi

Technical Details and Features

The Delphi HP10195 fuel pump hanger assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an electric pump type with an average current draw of 6 amps, ensuring efficient fuel delivery. The assembly includes an external strainer inlet type to protect the pump from contaminants, and a quick connect outlet type for easy installation. The fuel level sender assembly is integrated, providing accurate fuel level readings. The unit has four male pin terminals, supporting reliable electrical connections. Resistance values range from 15 ohms when empty to 160 ohms when full, supporting precise fuel level measurement.

Applications and Problem Resolution

This fuel pump hanger assembly is used primarily in the fuel delivery system of compatible Ford vans and trucks. It addresses several common issues including:

• Fuel pump failure causing engine stalling or no-start conditions
• Inaccurate fuel level readings due to faulty sender assemblies
• Fuel contamination affecting pump performance, mitigated by the external strainer
• Leaks or pressure drops from worn seals or gaskets
• Electrical connection problems with damaged or corroded terminals

Installation Notes and Tips

Installation of the Delphi HP10195 requires removal of the fuel tank to access the in-tank fuel pump hanger assembly. Ensure the vehicle’s battery is disconnected before beginning work. Verify that the gasket and seal included are properly seated to prevent fuel leaks. Use the quick connect outlet for secure fuel line attachment and confirm all four male pin terminals are correctly connected to the vehicle’s wiring harness. Follow the included instruction sheet carefully to maintain system integrity and safety.

Quality Assurance and Warranty

Delphi manufactures the HP10195 fuel pump hanger assembly to meet standard replacement grade specifications. The product includes a gasket or seal and a strainer to ensure durability and reliable operation. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Refer to Delphi’s official warranty policy for complete information.
