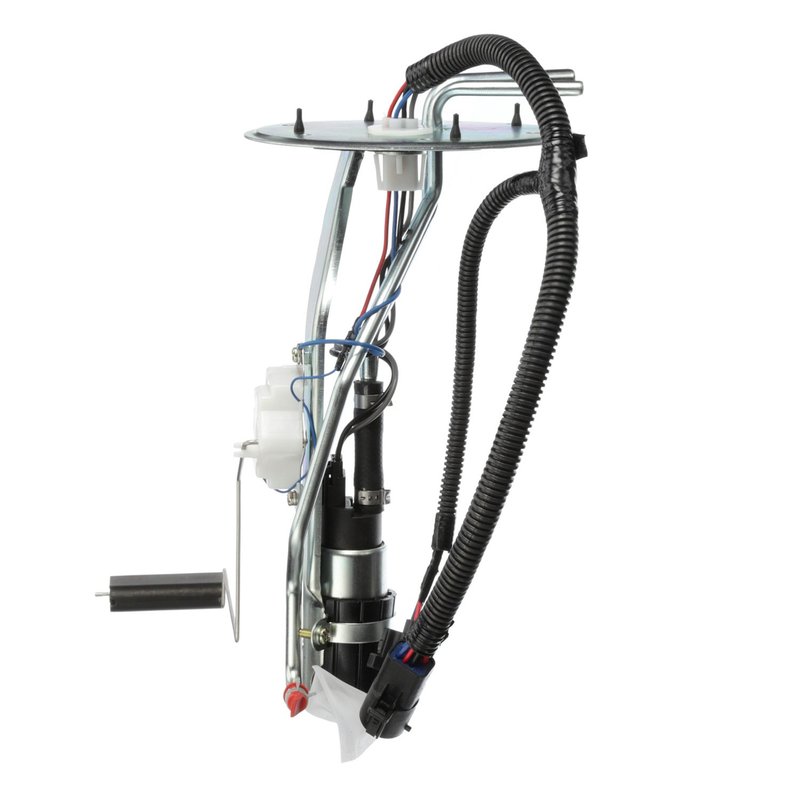

Delphi HP10197 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly for Ford Explorer

The Delphi HP10197 fuel pump hanger assembly is designed specifically for Ford Explorer models requiring a reliable in-tank fuel delivery solution. This electric fuel pump hanger assembly integrates a fuel level sender and strainer to ensure consistent fuel flow and accurate fuel level readings.

• Compatible with Ford Explorer fuel systems
• 12.0 Volt electric pump with a maximum pressure of 94 psi
• Includes external strainer and fuel level sender assembly
• Quick connect outlet with 0.375 inch outside diameter
• Standard replacement grade with gasket and seal included
• Seven male pin terminals for secure electrical connections
• Average flow rating of 40 liters per hour and system pressure of 36 psi

Technical Details and Features

The Delphi HP10197 fuel pump hanger assembly operates at 12 volts and is designed for gasoline fuel systems. It features an electric pump type with an average current draw of 6 amps, ensuring efficient fuel delivery. The assembly includes an external strainer inlet and a quick connect outlet with two outlet ports, each measuring 0.375 inches in diameter. The unit comes with seven male pin terminals for electrical connections and includes a gasket or seal to maintain a secure fit within the fuel tank. The fuel level sender assembly is integrated, providing accurate fuel level readings for the vehicle's dashboard. This assembly is intended for in-tank installation and supports a system pressure of 36 psi, with a maximum pressure rating of 94 psi.

Applications and Problem Solving

This fuel pump hanger assembly is used to replace faulty or worn fuel pumps in Ford Explorer vehicles. It addresses several common fuel system issues:

• Inconsistent fuel delivery causing engine hesitation or stalling
• Faulty fuel level readings leading to inaccurate dashboard gauges
• Fuel pump failure due to clogged or damaged strainers
• Electrical connection problems from worn or corroded terminals
• Leaks or poor sealing within the fuel tank assembly

Installation Notes and Tips

When installing the Delphi HP10197 fuel pump hanger assembly, ensure the vehicle's battery is disconnected to prevent electrical hazards. Carefully remove the old fuel pump assembly from the tank, taking care not to damage the fuel lines or tank components. Verify that the gasket or seal included with the assembly is properly seated to prevent leaks. Connect the seven male pin terminals securely, and confirm the quick connect outlets are firmly attached. After installation, test the fuel pump operation and fuel level sender functionality before reassembling the vehicle components.

Quality Assurance and Warranty

Delphi manufactures the HP10197 fuel pump hanger assembly to meet standard replacement grade specifications, ensuring compatibility and reliable performance for Ford Explorer vehicles. The assembly includes a gasket or seal and an external strainer to maintain fuel system integrity. While specific warranty details are not provided, Delphi products typically adhere to industry standards for durability and quality.
