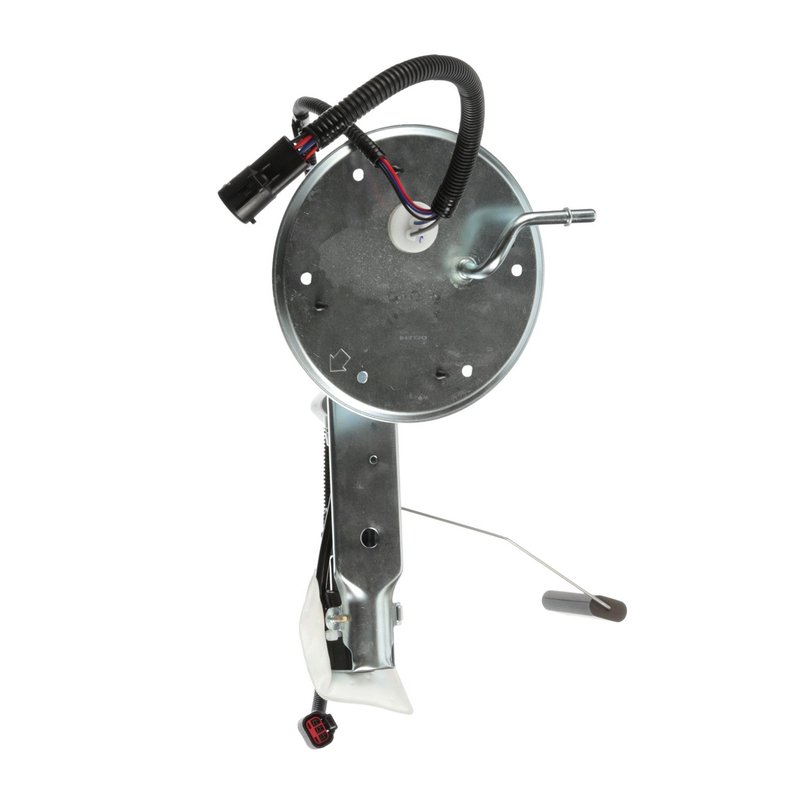

Delphi HP10199 Fuel Pump Hanger Assembly
| Brand | Delphi HP10199 |
|---|---|
| Average Current Draw | 10 |
| Average Flow Rating | 32 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Flex |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Item Grade | Standard Replacement |
| Maximum Pressure | 80.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 1 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Hanger Assembly w/Float Arm, (6) Bolts, (6) Washers, (2) Retainer Clips, Instruction Sheet |
| Pump Type | Electric |
| Resistance Ohms Empty | 15.0 |
| Resistance Ohms Full | 160.0 |
| Strainer Included | Yes |
| System Pressure | 44 psi |
| Terminal Gender | Male |
| Terminal Quantity | 7 |
| Terminal Type | Pin |
| Voltage | 12.0 |
| Fits | Ford, Lincoln, and Mercury · 6 vehicles |
Standard replacement. Built as a direct-fit fuel pump hanger assembly.
OE heritage. Backed by 100 years of OE experience and supplier knowledge.
Complete assembly. Includes a fuel level sender, strainer, seal, and hardware.
Cross-references Airtex Fuel Pumps E2542S, Carter P76596S and Spectra Premium SP2134H for the same application. See all 8.
Fuel Pump Hanger Assembly for Ford, Lincoln, and Mercury
The Delphi HP10199 fuel pump hanger assembly is a standard replacement for select Ford Crown Victoria, Lincoln Town Car, and Mercury Grand Marquis applications. Built with Delphi’s OE heritage and fuel system experience, it combines the pump, sender, and hanger components needed for in-tank fuel delivery on flex-fuel vehicles.
Key Features
- In-tank electric fuel pump hanger assembly with fuel level sender included
- 12-volt design with 44 psi system pressure and 80 psi maximum pressure
- Average flow rating of 32 and average current draw of 10
- Quick-connect outlet with 0.375 in. outside diameter
- External strainer and fuel strainer included
- Male pin terminals, 7-terminal configuration
- Gasket or seal included for service replacement
- Built for flex-fuel applications
Detailed Description
Delphi HP10199 is a fuel pump hanger assembly engineered for in-tank fuel delivery and sender function in select 2010-2011 Ford Crown Victoria, Lincoln Town Car, and Mercury Grand Marquis models. It includes the fuel pump hanger assembly with float arm and fuel level sender assembly, helping restore proper fuel supply and tank level reporting in one service part. Delphi draws on decades of OE supplier experience to produce aftermarket fuel system components that match the needs of a wide range of vehicles and model years.
This part cross-references Airtex E2542S and Carter P76596S for the same application. The Delphi HP10199 is also referenced by part numbers AW1Z 9H307-A and BW1Z 9H307-A in interchange listings.
What It Helps Address
- Hard starting caused by weak or inconsistent fuel delivery
- Fuel starvation under load from a failing in-tank pump
- Inaccurate fuel gauge readings from a worn sender assembly
- Fuel pressure loss in flex-fuel systems
- Noise or drivability issues related to a deteriorated pump module
Installation Notes and Tips
Fits 2011 Ford Crown Victoria, N/A. Fits 2011 Lincoln Town Car, N/A. Fits 2011 Mercury Grand Marquis, N/A. Fits 2010 Ford Crown Victoria, N/A. Fits 2010 Lincoln Town Car, N/A. Fits 2010 Mercury Grand Marquis, N/A. For 2010 applications, fuel tank contamination is a leading cause of premature pump failure; cleaning the tank before installation is recommended, and use of fuel tank cleaning kit FC01 is noted in the fitment data. Verify connector style, outlet type, and sender resistance before installation.
Quality Assurance
Delphi builds this fuel pump hanger assembly using OE-focused engineering and application knowledge developed through long-term supplier experience with major automakers. The HP10199 is a standard replacement part designed for the listed Ford, Lincoln, and Mercury applications.
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2011 | Ford | Crown Victoria | FLEX | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2011 | Lincoln | Town Car | FLEX | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2011 | Mercury | Grand Marquis | FLEX | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2010 | Ford | Crown Victoria | FLEX | N/A | From 09/25/2009; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2010 | Lincoln | Town Car | FLEX | N/A | From 09/25/2009; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2010 | Mercury | Grand Marquis | FLEX | N/A | From 09/25/2009; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
