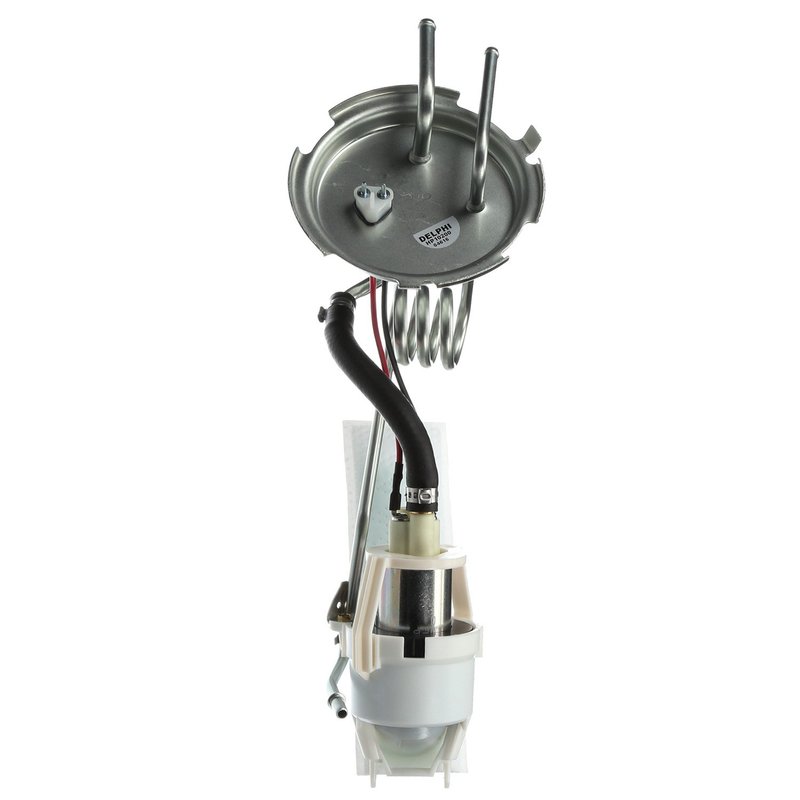

Delphi HP10200 Fuel Pump Hanger Assembly

Reliable Fuel Pump Hanger Assembly for Chrysler, Dodge, and Plymouth

The Delphi HP10200 fuel pump hanger assembly is designed for in-tank installation, providing consistent fuel delivery for Chrysler Caravan, Dodge Grand Caravan, Plymouth Voyager, and related models. Engineered to meet standard replacement specifications, this electric fuel pump hanger assembly ensures proper fuel flow and pressure for optimal engine performance.

Key Features of Delphi HP10200 Fuel Pump Hanger Assembly

• Voltage: 12.0 volts for compatibility with standard automotive electrical systems
• Fuel Type: Gasoline
• Maximum Pressure: 94 psi, with a system pressure rating of 51 psi
• Outlet Outside Diameter: 0.313 inches with hose-type outlet
• Includes external strainer and strainer inlet for fuel filtration
• Two male pin terminals for secure electrical connection
• Comes with gasket/seal and instruction sheet for proper installation
• Average current draw of 10 amps and flow rating of 35 (units consistent with fuel delivery)
• Standard replacement grade for reliable performance

Detailed Description of the Delphi HP10200 Fuel Pump Hanger Assembly

This Delphi fuel pump hanger assembly (part number HP10200) is an electric in-tank pump designed specifically for gas-powered Chrysler, Dodge, and Plymouth vehicles including Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager models. The assembly features a dual outlet hose connection with a 0.313-inch outside diameter, ensuring compatibility with factory fuel lines. The external strainer and inlet strainer help prevent contaminants from entering the fuel system, protecting the engine and fuel injectors. The two-pin male terminal design supports a secure electrical connection, while the included gasket or seal ensures a tight fit to prevent leaks. This assembly is engineered to maintain a system pressure of 51 psi and can handle a maximum pressure of 94 psi, supporting consistent fuel delivery under various operating conditions.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Chrysler Caravan and Dodge Grand Caravan
• Restores proper fuel pressure and flow in Plymouth Voyager fuel systems
• Resolves fuel delivery interruptions caused by clogged or damaged strainers
• Eliminates electrical connection issues with secure two-pin male terminals
• Prevents fuel leaks with included gasket/seal for in-tank installation

Installation Notes and Tips

• Ensure vehicle compatibility with Chrysler Caravan, Dodge Grand Caravan, Plymouth Voyager, Town & Country, or Grand Voyager models before installation
• Disconnect the battery before beginning installation to avoid electrical hazards
• Follow the included instruction sheet carefully for proper assembly and sealing
• Inspect fuel lines and connectors for wear or damage during replacement
• Verify secure connection of the two-pin male terminals to prevent electrical faults

Quality Assurance and Warranty Information

The Delphi HP10200 fuel pump hanger assembly is manufactured to meet standard replacement quality standards, ensuring reliable operation and durability. It includes a gasket or seal to maintain system integrity and comes with an instruction sheet to support proper installation. Delphi products typically carry a limited warranty against defects in materials and workmanship; please refer to the product documentation or Delphi's official resources for specific warranty details.
