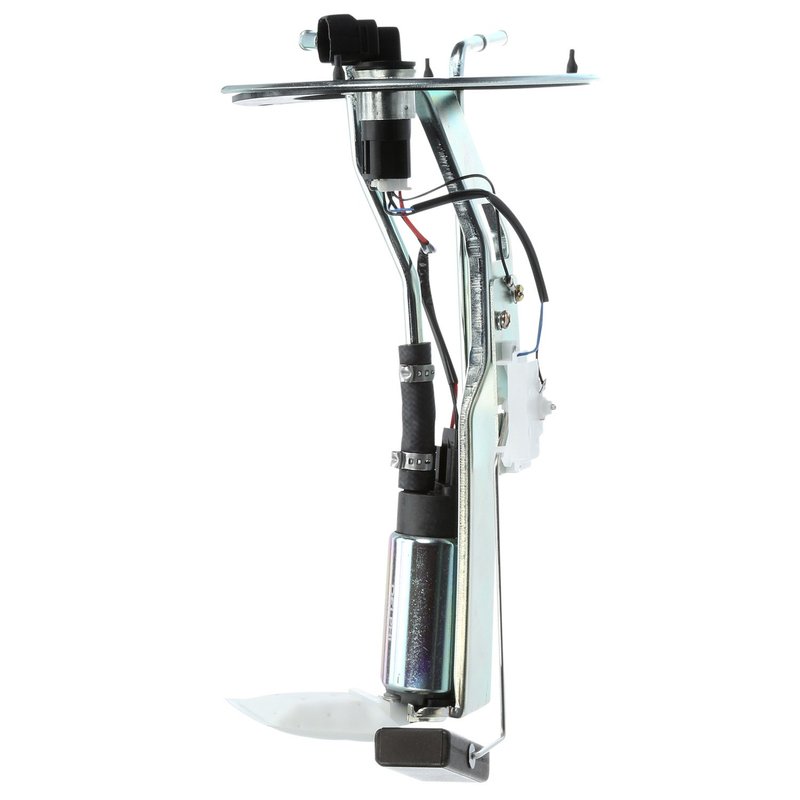

Delphi HP10207 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly for Suzuki XL-7

The Delphi HP10207 fuel pump hanger assembly is designed specifically for Suzuki XL-7 models, providing reliable in-tank fuel delivery. This electric fuel pump assembly includes a fuel level sender and is engineered to maintain consistent fuel pressure and flow for optimal engine performance.

• Compatible with Suzuki XL-7 fuel systems
• Electric pump with 12.0 volts operation
• Maximum pressure rating of 94 psi, system pressure at 36 psi
• Includes external strainer and fuel level sender assembly
• Four male pin terminals for secure electrical connections
• Outlet outside diameter of 0.313 inches with two hose outlets
• Comes with gasket and seal for proper installation
• Average flow rating of 21 liters per hour and 5 amps current draw

Product Details and Specifications

The Delphi HP10207 fuel pump hanger assembly is an electric in-tank pump designed for gasoline fuel systems in Suzuki XL-7 vehicles. It features a durable external strainer inlet type to prevent debris from entering the pump, ensuring longevity and consistent fuel delivery. The assembly includes a fuel level sender with a float arm, allowing accurate fuel gauge readings. The pump operates at 12 volts with a maximum pressure of 94 psi and a system pressure of 36 psi, suitable for maintaining proper fuel system performance. The four male pin terminals provide reliable electrical connections, and the included gasket or seal ensures a secure fit within the fuel tank.

Common Applications and Problem Resolution

• Replaces faulty or worn fuel pump hangers in Suzuki XL-7 models
• Resolves fuel delivery issues such as low pressure or inconsistent flow
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel pump noise or failure caused by clogged strainers
• Restores proper electrical connectivity with secure terminal design

Installation Notes and Tips

Installation of the Delphi HP10207 fuel pump hanger assembly requires removal of the fuel tank or access through the service panel, depending on the Suzuki XL-7 model year. Ensure the gasket or seal is properly seated to prevent fuel leaks. Verify electrical connections match the four male pin terminals and confirm the float arm moves freely for accurate fuel level readings. It is recommended to inspect the fuel tank for debris before installation to avoid premature pump failure.

Quality Assurance and Warranty

This Delphi fuel pump hanger assembly is a standard replacement part manufactured to meet OEM specifications for Suzuki XL-7 vehicles. It undergoes rigorous testing to ensure consistent pressure, flow, and electrical performance. The product includes a gasket and strainer to maintain system integrity. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
