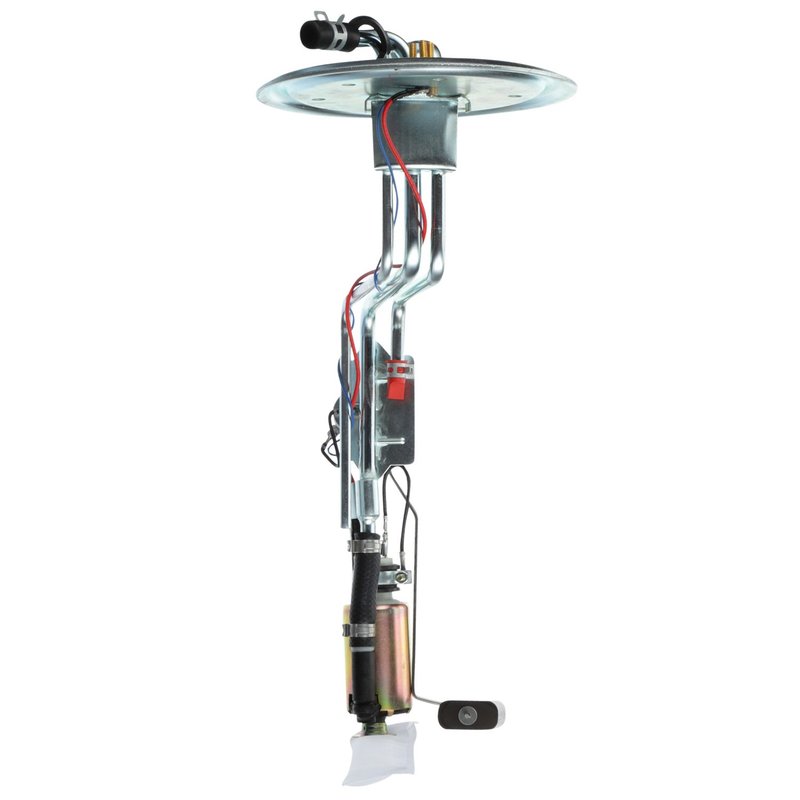

Delphi HP10212 Fuel Pump Hanger Assembly

Reliable Fuel Pump Hanger Assembly for Ford E-350 Econoline

The Delphi HP10212 fuel pump hanger assembly is designed specifically for Ford E-350 Econoline and E-350 Econoline Club Wagon models. This in-tank electric fuel pump assembly ensures consistent fuel delivery and accurate fuel level readings for your vehicle.

• Compatible with Ford E-350 Econoline and E-350 Econoline Club Wagon
• 12.0 Volt electric pump with a maximum pressure of 73 psi
• Includes fuel level sender assembly with float arm and external strainer
• Three male pin terminals with quick connect outlet type
• Comes with gasket, seal, and two retainer clips for secure installation
• Average flow rating of 32 gallons per hour and system pressure of 36 psi

Technical Details and Features

The Delphi HP10212 fuel pump hanger assembly operates at 12 volts and is designed for gasoline fuel systems. It features an external strainer inlet type and a quick connect outlet with an outside diameter of 0.375 inches. The assembly includes three male pin terminals, providing reliable electrical connections. The fuel pump hanger assembly also incorporates a fuel level sender assembly with a float arm, allowing accurate fuel level monitoring. The unit is rated for a maximum pressure of 73 psi and maintains a system pressure of 36 psi, ensuring optimal fuel delivery performance. Resistance values range from 15 ohms when empty to 160 ohms when full, supporting precise fuel level readings. The average current draw is 3 amps, and the pump delivers an average flow rating of 32 gallons per hour.

Applications and Problem Solving

• Replaces faulty or worn fuel pump hanger assemblies in Ford E-350 Econoline models
• Resolves fuel delivery issues such as inconsistent engine performance or stalling
• Fixes inaccurate fuel gauge readings caused by a malfunctioning fuel level sender
• Addresses fuel system leaks with included gasket and seal components
• Improves fuel system reliability by replacing damaged or clogged strainers

Installation Notes and Tips

Installation of the Delphi HP10212 fuel pump hanger assembly requires removal of the fuel tank to access the in-tank assembly. Ensure all electrical connections use the included three-pin male terminals and verify the quick connect outlets are securely attached. Replace the gasket and seal during installation to prevent leaks. Handle the float arm carefully to avoid damage to the fuel level sender assembly. It is recommended to consult the vehicle’s service manual for detailed removal and installation procedures specific to the Ford E-350 Econoline and E-350 Econoline Club Wagon.

Quality Assurance and Warranty

Delphi manufactures the HP10212 fuel pump hanger assembly to meet standard replacement grade specifications, ensuring dependable performance and durability. The assembly includes all necessary components such as the fuel pump hanger, float arm, seal, and retainer clips for a complete replacement. Delphi products typically come with a limited warranty covering defects in materials and workmanship; please refer to Delphi’s official warranty policy for specific terms and conditions.
