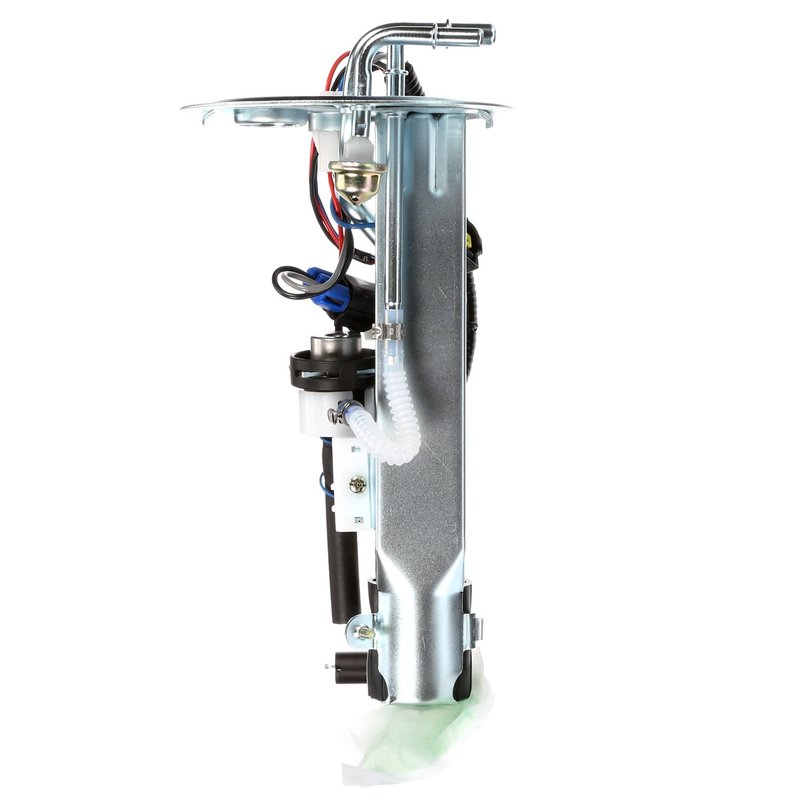

Delphi HP10214 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10214 fuel pump hanger assembly is designed for reliable fuel delivery in Ford and Mazda trucks, specifically the B3000 and Ranger models. This in-tank electric fuel pump assembly includes a fuel level sender and is engineered to meet standard replacement requirements for flex fuel systems.

• Outlet outside diameter: 0.375 inches
• Voltage: 12.0 volts
• Maximum pressure: 102 psi
• Terminal type: Pin, male, with 8 terminals
• Includes gasket/seal and external strainer
• Quick connect outlet with 3 outlets
• Average flow rating: 40 liters per hour
• Average current draw: 8 amps
• Fuel level sender assembly included
• Compatible with flex fuel
• System pressure: 58 psi

Technical Details and Features

The Delphi HP10214 fuel pump hanger assembly operates at 12 volts and is designed for in-tank installation. It features an external strainer inlet type and a quick connect outlet type with three outlets, ensuring efficient fuel flow and filtration. The assembly includes a fuel level sender with a float arm, providing accurate fuel level readings. The terminal configuration consists of eight male pin terminals, facilitating secure electrical connections. The unit supports flex fuel types and maintains a system pressure of 58 psi, with a maximum pressure rating of 102 psi, suitable for the fuel delivery demands of Ford B3000 and Mazda Ranger trucks.

Compatible Vehicles and Applications

This fuel pump hanger assembly is compatible with the following vehicles:

• Ford B3000
• Mazda Ranger

It is designed to replace the original equipment in these models, ensuring proper fit and function for fuel delivery and fuel level sensing in flex fuel applications.

Common Issues Addressed by This Fuel Pump Assembly

• Fuel delivery interruptions causing engine stalling or hesitation
• Inaccurate fuel level readings due to faulty sender assembly
• Leaks or fuel pressure drops from worn seals or connectors
• Electrical connection failures from damaged terminals
• Clogged fuel strainers reducing fuel flow efficiency

Installation Notes and Tips

• Ensure the vehicle’s battery is disconnected before installation
• Verify compatibility with Ford B3000 or Mazda Ranger before proceeding
• Inspect and replace the included gasket/seal to prevent leaks
• Handle the float arm carefully to avoid damage to the fuel level sender
• Confirm all electrical terminals are securely connected to avoid power issues

Quality Assurance and Warranty

The Delphi HP10214 fuel pump hanger assembly is manufactured to meet standard replacement specifications, ensuring reliable performance in flex fuel systems. The assembly includes a gasket and retainer clips for secure installation. While specific warranty details are not provided, Delphi products typically adhere to industry quality standards for automotive fuel delivery components.
