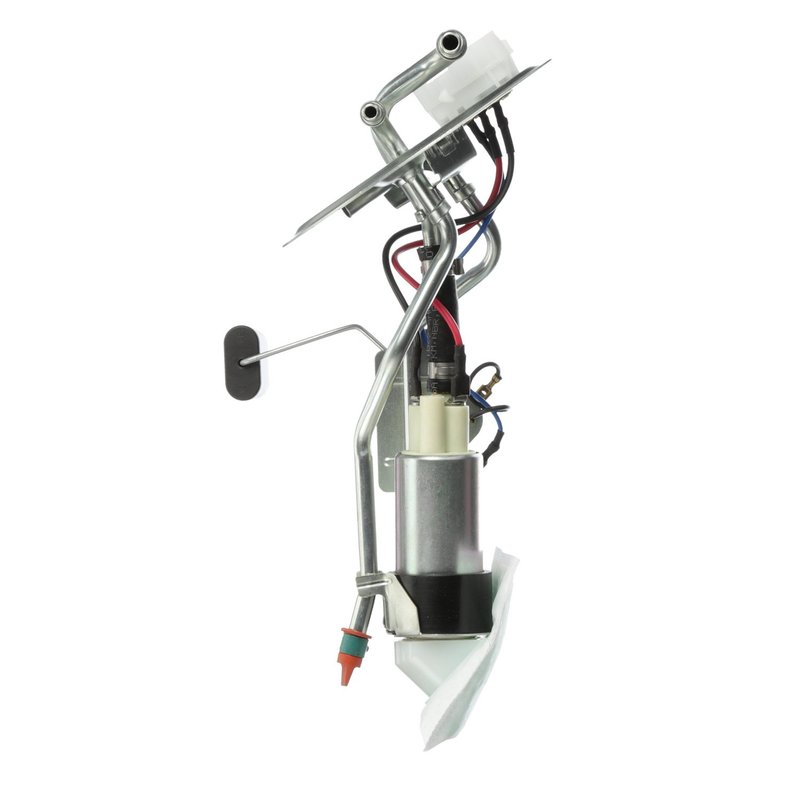

Delphi HP10215 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly for Ford Taurus

The Delphi HP10215 fuel pump hanger assembly is designed specifically for Ford Taurus models requiring a reliable in-tank fuel delivery solution. This electric fuel pump assembly integrates a fuel level sender and is engineered to maintain consistent fuel pressure and flow for optimal engine performance.

• Compatible with Ford Taurus vehicles
• Electric fuel pump with 12.0 volts operation
• Maximum system pressure of 44 psi and maximum pump pressure of 109 psi
• Includes fuel level sender assembly and external strainer
• Quick connect outlet with 0.375 inch outside diameter
• Four male pin terminals for secure electrical connections
• Comes with gasket, seal, and two retainer clips for installation
• Average flow rating of 26 gallons per hour and average current draw of 10 amps

Technical Details and Features

The Delphi HP10215 fuel pump hanger assembly is an electric pump designed for gas fuel systems in Ford Taurus vehicles. It features an in-tank installation with an external strainer inlet type to ensure clean fuel delivery. The assembly includes a fuel level sender with a float arm, allowing accurate fuel gauge readings. The pump operates at 12 volts with a resistance range from 10 ohms (empty) to 160 ohms (full), supporting consistent electrical performance. The outlet is a quick connect type with two outlets, each having an outside diameter of 0.375 inches, facilitating straightforward fuel line connections. The assembly is supplied with a gasket or seal and retainer clips to secure the unit during installation.

Applications and Problem Solving

• Replaces faulty or worn fuel pump hangers in Ford Taurus models
• Resolves fuel delivery issues such as low pressure or inconsistent flow
• Restores accurate fuel level readings with the included sender assembly
• Addresses fuel contamination problems with the external strainer
• Eliminates electrical connection failures with four-pin male terminals

Installation Notes and Tips

Installation of the Delphi HP10215 fuel pump hanger assembly requires removal of the fuel tank to access the in-tank pump. Ensure all electrical connections use the four-pin male terminals provided for proper fitment. Replace the included gasket or seal to prevent fuel leaks. The quick connect outlet simplifies fuel line attachment, but verify secure connections to avoid pressure loss. Handle the float arm carefully to maintain accurate fuel level readings.

Quality Assurance and Warranty

This Delphi fuel pump hanger assembly is a standard replacement part manufactured to meet OEM specifications for Ford Taurus vehicles. It includes a fuel level sender and strainer to ensure reliable operation. Delphi products typically come with a limited warranty covering defects in materials and workmanship; please refer to Delphi's official warranty documentation for specific terms.
