OE Quality
60-Day Returns

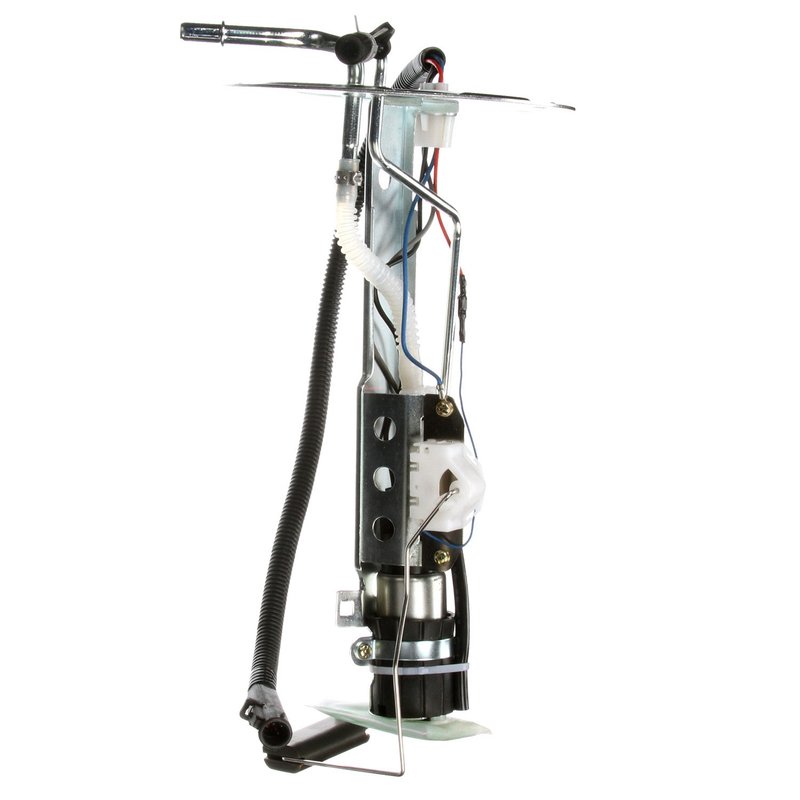

Delphi HP10216 Fuel Pump Hanger Assembly
Delphi Fuel Pump Hanger Assembly Overview
The Delphi HP10216 Fuel Pump Hanger Assembly is designed for reliable fuel delivery in select Ford vehicles. Engineered for in-tank installation, this assembly ensures consistent fuel flow and accurate fuel level readings for Ford E-150, E-150 Club Wagon, E-250, E-350 Club Wagon, and E-350 Super Duty models.
- Compatible with Ford E-150, E-150 Club Wagon, E-250, E-350 Club Wagon, and E-350 Super Duty
- 12.0 Volt electric fuel pump with a maximum pressure of 109 psi
- Includes fuel level sender assembly with float arm and external strainer
- Quick connect outlet with 0.375 inch outside diameter
- Comes with gasket, six nuts, and six washers for secure installation
Technical Specifications and Features
The Delphi HP10216 features a 12-volt electric pump designed for gasoline fuel systems. It delivers an average flow rating of 26 gallons per hour and maintains a system pressure of 44 psi, supporting efficient engine performance. The assembly includes an external strainer inlet and a quick connect outlet with two outlets, each having a 0.375-inch outside diameter. The fuel level sender assembly is integrated, providing accurate fuel level readings with resistance values ranging from 15 ohms (empty) to 160 ohms (full). The unit has four male pin terminals and includes a gasket or seal to ensure a leak-free installation.
Applications and Problem Solving
- Replaces faulty or worn fuel pump hangers in Ford E-Series vans and trucks
- Resolves fuel delivery issues such as low pressure or inconsistent flow
- Addresses inaccurate fuel gauge readings due to faulty sender assemblies
- Prevents fuel leaks with included gasket and secure mounting hardware
- Improves engine performance by maintaining proper fuel system pressure
Installation Notes and Tips
Installation of the Delphi HP10216 fuel pump hanger assembly requires removal of the fuel tank for in-tank access. Ensure all electrical connections use the included four-pin male terminals and verify the quick connect outlets are securely attached. Replace the gasket to prevent leaks and use the supplied nuts and washers to fasten the assembly firmly. It is recommended to inspect the fuel strainer for debris during installation and replace if necessary.
Quality Assurance and Warranty
Delphi manufactures the HP10216 as a standard replacement part meeting OEM specifications for Ford vehicles. The assembly includes a fuel level sender and strainer to maintain system integrity. While specific warranty details vary, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. Always consult the product documentation or supplier for exact warranty terms.
| Brand | Delphi |
|---|---|
| Part Number | HP10216 |
| Average Current Draw | 10 |
| Average Flow Rating | 26 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Item Grade | Standard Replacement |
| Maximum Pressure | 109.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 2 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Hanger Assembly w/Float Arm, Seal, (6) Nuts, (6) Washers, (2) Retainer Clips, Instruction Sheet |
| Pump Type | Electric |
| Resistance Ohms Empty | 15.0 |
| Resistance Ohms Full | 160.0 |
| Strainer Included | Yes |
| System Pressure | 44 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Pin |
| Voltage | 12.0 |
This part fits 19 vehicles. Search below:
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2008 | Ford | E-250 | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. | |
| 2008 | Ford | E-350 Super Duty | GAS | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. |
| 2007 | Ford | E-250 | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. | |
| 2007 | Ford | E-350 Super Duty | GAS | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. |
| 2006 | Ford | E-250 | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. | |
| 2006 | Ford | E-350 Super Duty | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. | |
| 2005 | Ford | E-250 | GAS | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. |
| 2005 | Ford | E-250 | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. | |
| 2005 | Ford | E-350 Club Wagon | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. | |
| 2005 | Ford | E-350 Club Wagon | GAS | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. |
| 2005 | Ford | E-350 Super Duty | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. | |
| 2005 | Ford | E-350 Super Duty | GAS | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. |
| 2004 | Ford | E-150 | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. | |
| 2004 | Ford | E-150 Club Wagon | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. | |
| 2004 | Ford | E-250 | GAS | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. |
| 2004 | Ford | E-250 | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. | |
| 2004 | Ford | E-350 Club Wagon | GAS | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. |
| 2004 | Ford | E-350 Super Duty | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. | |
| 2004 | Ford | E-350 Super Duty | GAS | N/A | For vehicles with an Aft Axle Tank, it is advised to clean the fuel tank before installing a new Fuel Pump Module Assembly to prevent contamination and premature failure; consider using fuel tank cleaning kit FC01. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
