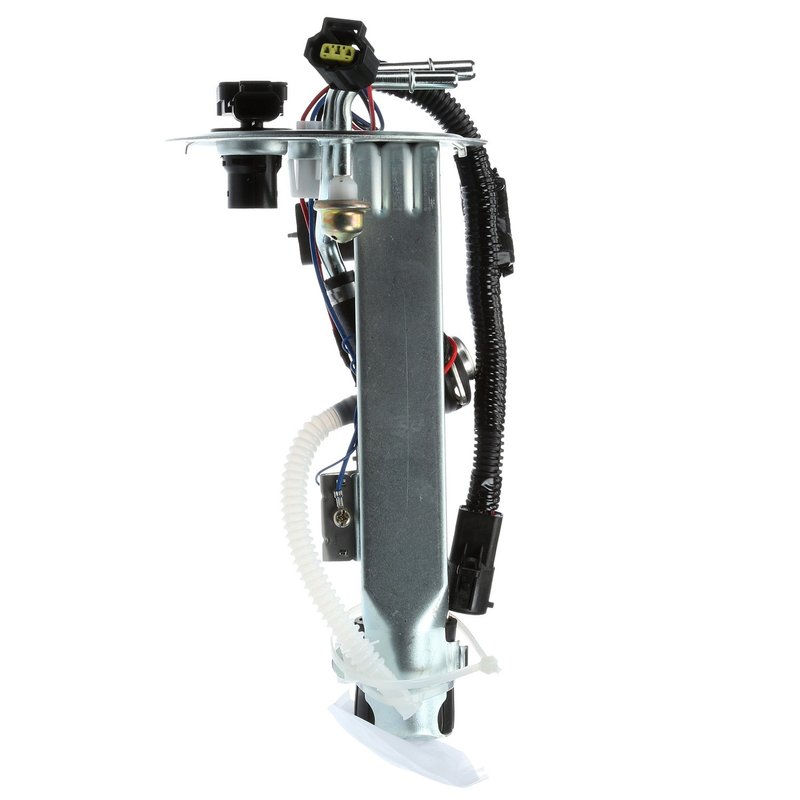

Delphi HP10218 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly for Ford Ranger

The Delphi HP10218 fuel pump hanger assembly is designed specifically for Ford Ranger models requiring a reliable in-tank fuel delivery solution. This electric fuel pump hanger assembly integrates a fuel level sender and is engineered to maintain consistent fuel pressure and flow for flex fuel applications.

• Compatible with Ford Ranger vehicles
• Electric fuel pump with 12.0 volts operation
• Maximum system pressure of 80 psi and operating pressure of 58 psi
• Includes fuel level sender assembly with float arm
• Two quick connect outlet ports with 0.375 inch outside diameter
• External strainer inlet type with included strainer
• Eight male pin terminals for secure electrical connections
• Comes with gasket/seal and two retainer clips for installation
• Average flow rating of 34 liters per hour and average current draw of 10 amps

Technical Details and Features

The Delphi HP10218 fuel pump hanger assembly is an electric pump designed for in-tank installation, optimized for flex fuel systems. It features an external strainer inlet to protect the pump from debris and a quick connect outlet type with two outlets, each measuring 0.375 inches in diameter. The assembly includes a fuel level sender with a float arm, providing accurate fuel level readings. The unit operates at 12 volts with a maximum pressure rating of 80 psi and a system pressure of 58 psi, ensuring consistent fuel delivery under various driving conditions. The eight male pin terminals facilitate reliable electrical connections, and the included gasket and retainer clips simplify installation and sealing within the fuel tank.

Applications and Problem Solving

• Replaces faulty or worn fuel pump hanger assemblies in Ford Ranger models
• Resolves inconsistent fuel pressure or flow issues affecting engine performance
• Addresses inaccurate fuel level readings due to faulty sender assemblies
• Prevents fuel contamination with the included external strainer
• Supports flex fuel compatibility for vehicles using ethanol blends

Installation Notes and Tips

• Ensure compatibility with your specific Ford Ranger model year before installation
• Handle the float arm carefully to avoid damage during installation
• Verify all electrical connections are secure on the eight-pin male terminals
• Replace the gasket/seal to prevent fuel leaks and maintain tank integrity
• Use the included retainer clips to secure the assembly firmly in place

Quality Assurance and Warranty

Delphi manufactures the HP10218 fuel pump hanger assembly to meet standard replacement quality requirements. The assembly is tested for electrical resistance, flow rate, and pressure specifications to ensure reliable operation. This part includes a gasket and strainer to maintain system integrity and protect the fuel pump. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
