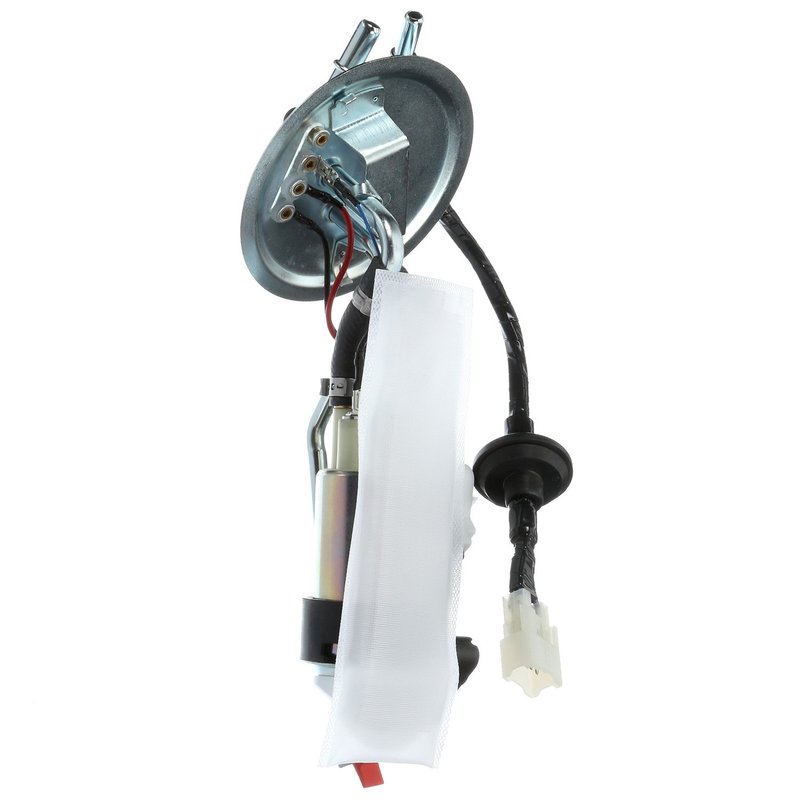

Delphi HP10219 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10219 fuel pump hanger assembly is designed for reliable fuel delivery in Ford Escort and Mercury Tracer vehicles. This in-tank electric fuel pump assembly includes a fuel level sender and is engineered to meet standard replacement specifications.

• Compatible with Ford Escort and Mercury Tracer models
• 12.0 Volt electric fuel pump with 26 GPH average flow rating
• Includes fuel level sender assembly with float arm
• Maximum pressure rating of 94 psi and system pressure of 44 psi
• Features external strainer inlet and quick connect outlet (0.375 inch diameter)
• Six male pin terminals for secure electrical connection
• Comes with gasket, seal, lock ring, and two retainers

Technical Details and Specifications

The Delphi HP10219 fuel pump hanger assembly operates at 12 volts and is designed for gasoline fuel systems. It features an electric pump type with an average current draw of 6 amps, ensuring efficient fuel delivery. The assembly includes an external strainer inlet and a quick connect outlet with a 0.375-inch outside diameter, supporting two outlet connections. The fuel pump hanger assembly is equipped with six male pin terminals for reliable electrical connectivity. Resistance values range from 15 ohms when empty to 160 ohms when full, providing accurate fuel level readings through the included sender assembly.

Applications and Problem Resolution

This fuel pump hanger assembly is intended for use in Ford Escort and Mercury Tracer vehicles requiring in-tank fuel pump replacement. It addresses common fuel system issues such as:

• Fuel delivery interruptions due to worn or failing pumps
• Inaccurate fuel level readings caused by faulty sender units
• Leaks or seal failures within the fuel pump assembly
• Electrical connection problems from damaged terminals
• Clogging or contamination from missing or damaged strainers

Installation Notes and Tips

Installation of the Delphi HP10219 requires removal of the fuel tank to access the in-tank assembly. Ensure the gasket and seal included in the package are properly seated to prevent leaks. Verify the six male pin terminals align correctly with the vehicle wiring harness. The quick connect outlet facilitates straightforward fuel line attachment. It is recommended to inspect the fuel tank and lines for debris before installation to maintain optimal pump performance.

Quality Assurance and Warranty

Delphi manufactures the HP10219 fuel pump hanger assembly to meet standard replacement grade requirements. The assembly includes all necessary components such as the float arm, seal, lock ring, and retainers to ensure proper fit and function. While specific warranty details are not provided, Delphi products typically adhere to industry standards for durability and reliability in automotive fuel delivery systems.
