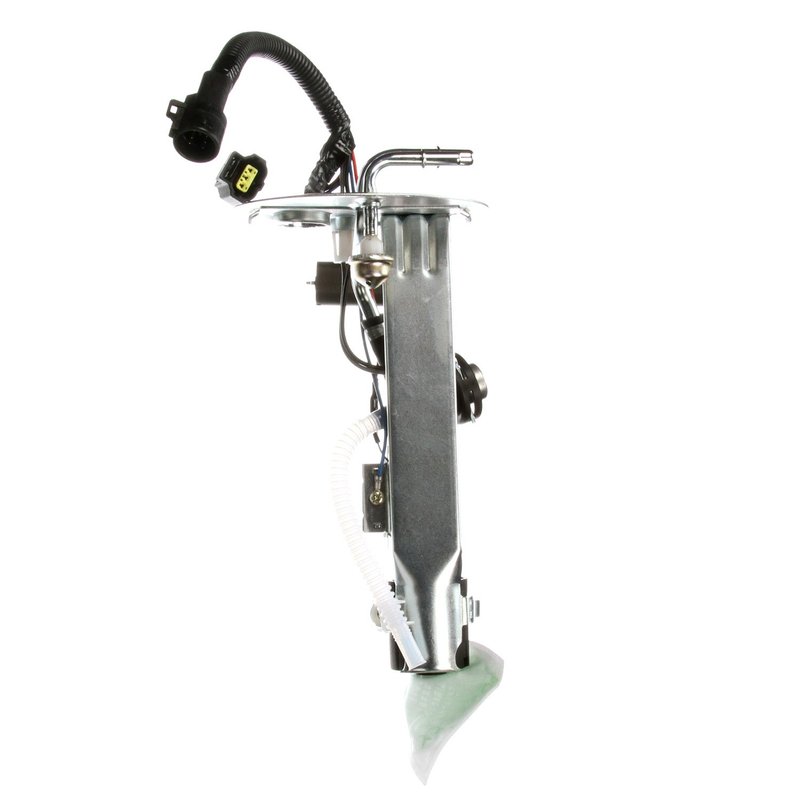

Delphi HP10220 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly for Ford Ranger

The Delphi HP10220 fuel pump hanger assembly is designed specifically for Ford Ranger models requiring reliable in-tank fuel delivery components. This electric fuel pump assembly integrates a fuel level sender and strainer to ensure consistent fuel flow and accurate fuel level readings.

Key Features of Delphi HP10220 Fuel Pump Hanger Assembly

• 12.0 Volt electric fuel pump with a maximum pressure of 109 psi
• Includes fuel level sender assembly with float arm for precise fuel measurement
• In-tank design with external strainer and quick connect outlet type
• Compatible with gasoline fuel systems, designed for Ford Ranger vehicles
• Seven male pin terminals for secure electrical connections
• Comes with gasket/seal and two retainer clips for proper installation
• Average flow rating of 29 and system pressure of 65 psi for consistent performance

Detailed Description of the Delphi HP10220 Fuel Pump Assembly

This Delphi fuel pump hanger assembly (part number HP10220) is engineered for use in Ford Ranger trucks, providing a standard replacement for the original fuel pump system. The assembly features a 0.375-inch outlet outside diameter and a quick connect outlet type, facilitating straightforward installation and maintenance. The pump operates at 12 volts and delivers an average current draw of 10 amps, supporting efficient fuel delivery under typical operating conditions.

The assembly includes an external strainer inlet type to filter fuel before it enters the pump, helping to protect the fuel system from contaminants. The seven male pin terminals ensure reliable electrical connections, while the included gasket and retainer clips secure the assembly within the fuel tank. The fuel level sender assembly with float arm provides accurate fuel level readings, essential for proper vehicle operation.

Applications and Common Issues Addressed

• Replacement for faulty or failing in-tank fuel pumps in Ford Ranger models
• Resolves inconsistent fuel pressure or flow problems
• Fixes inaccurate fuel gauge readings due to faulty fuel level sender
• Addresses fuel contamination issues with included external strainer
• Eliminates electrical connection failures with secure pin terminals

Installation Notes and Tips

• Ensure compatibility with your specific Ford Ranger model before installation
• Handle the fuel pump assembly carefully to avoid damage to the float arm and strainer
• Replace the gasket/seal during installation to prevent fuel leaks
• Verify all electrical connections are secure and terminals are properly aligned
• Test fuel pressure and fuel level readings after installation to confirm proper operation

Quality Assurance and Warranty Information

The Delphi HP10220 fuel pump hanger assembly is manufactured to meet standard replacement quality requirements. It includes all necessary components such as the fuel pump, fuel level sender assembly, gasket, and retainer clips to ensure a complete and reliable installation. Delphi provides a limited warranty covering defects in materials and workmanship, supporting confidence in the product's durability and performance.
