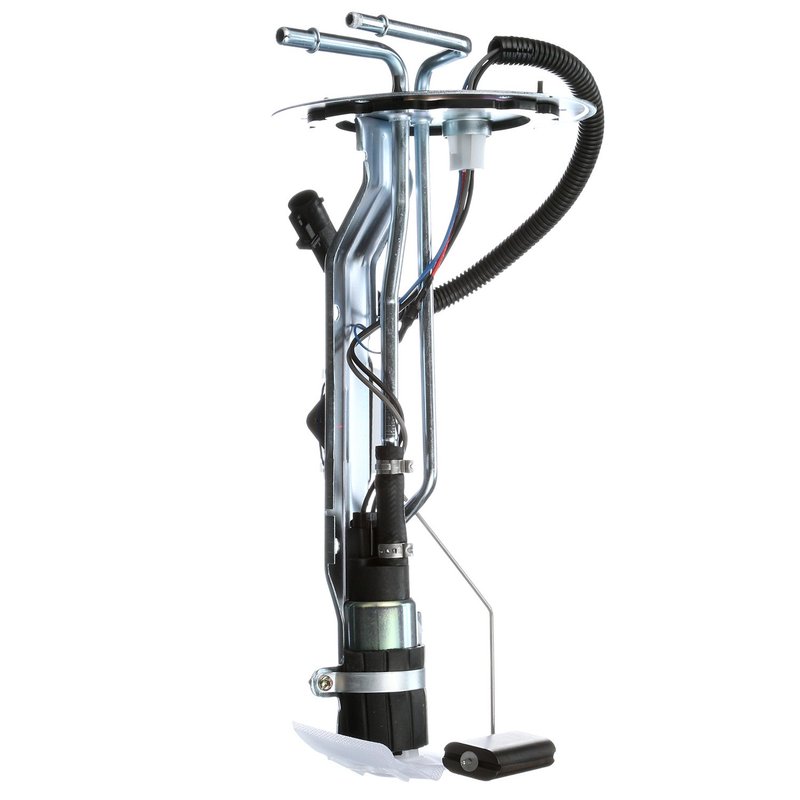

Delphi HP10222 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly for Ford F-150

The Delphi HP10222 fuel pump hanger assembly is designed specifically for Ford F-150 trucks, providing reliable in-tank fuel delivery for gasoline engines. This electric fuel pump assembly includes a fuel level sender and is engineered to meet standard replacement requirements.

Key Features of Delphi HP10222 Fuel Pump Hanger Assembly

• Compatible with Ford F-150 models requiring a 12V electric fuel pump
• In-tank pump design with external strainer for efficient fuel filtration
• Includes fuel level sender assembly with float arm for accurate fuel gauge readings
• Maximum system pressure of 44 psi and maximum pump pressure of 94 psi
• Quick connect outlet type with 0.375 inch outside diameter for easy installation
• Four male pin terminals with included gasket and seal for secure electrical connections
• Average flow rating of 26 gallons per hour and average current draw of 6 amps
• Package includes fuel pump hanger assembly, six bolts, six washers, and necessary hardware

Detailed Description of the Delphi HP10222 Fuel Pump Hanger Assembly

This Delphi fuel pump hanger assembly (part number HP10222) is engineered for use in Ford F-150 trucks running on gasoline. The electric pump operates at 12 volts and features an external strainer inlet to protect the fuel system from contaminants. The assembly includes a fuel level sender with a float arm, enabling accurate fuel level monitoring. The quick connect outlet with a 0.375 inch outside diameter simplifies installation and maintenance. Designed to maintain a system pressure of 44 psi and a maximum pressure of 94 psi, this pump supports consistent fuel delivery under various driving conditions. The four-pin male terminal configuration ensures reliable electrical connections, while the included gasket and seal help prevent leaks. This standard replacement grade part meets OEM specifications for dependable performance.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Ford F-150 gasoline engines
• Resolves fuel delivery interruptions caused by clogged or damaged strainers
• Corrects inaccurate fuel gauge readings due to faulty fuel level sender assemblies
• Addresses electrical connection problems with secure four-pin male terminals
• Prevents fuel leaks with included gasket and seal components

Installation Notes and Tips

• Ensure vehicle battery is disconnected before beginning installation to avoid electrical hazards
• Verify compatibility with your specific Ford F-150 model year and engine type
• Use the included bolts and washers to secure the assembly firmly in the fuel tank
• Check all electrical connections for proper fit and secure attachment of the four-pin terminals
• Inspect the gasket and seal for proper placement to prevent fuel leaks

Quality Assurance and Warranty Information

The Delphi HP10222 fuel pump hanger assembly is manufactured to meet industry standards for quality and durability. This standard replacement part undergoes rigorous testing to ensure reliable operation within specified voltage, pressure, and flow parameters. Delphi provides a limited warranty covering defects in materials and workmanship, supporting confidence in the product’s performance for Ford F-150 fuel system repairs.
