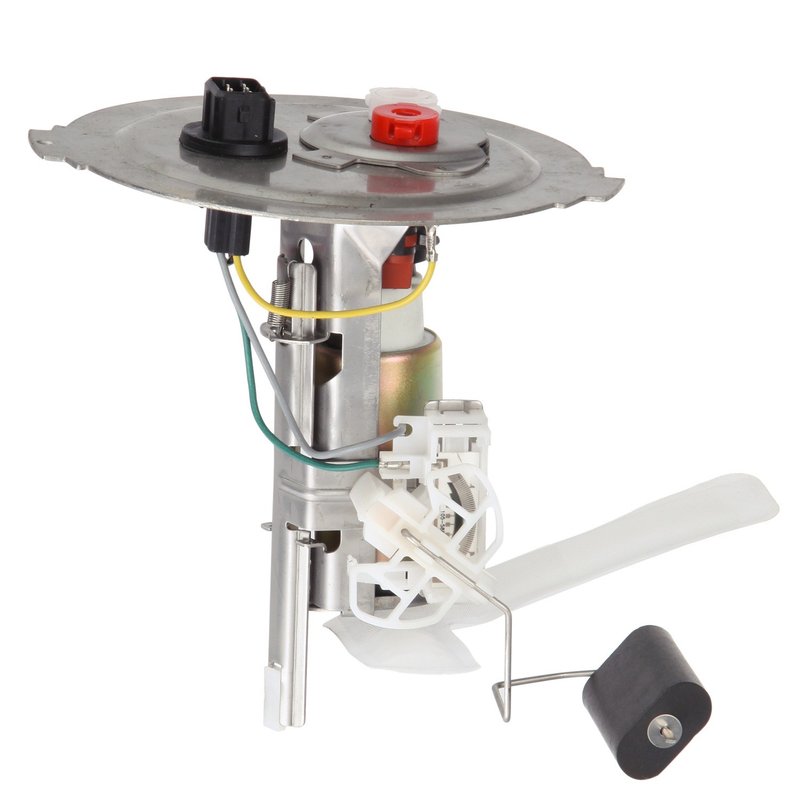

Delphi HP10224 Fuel Pump Hanger Assembly

Reliable Fuel Pump Hanger Assembly for Ford and Mercury Vehicles

The Delphi HP10224 fuel pump hanger assembly is designed for precise fuel delivery in select Ford and Mercury models. Engineered to meet OEM specifications, this in-tank electric fuel pump assembly ensures consistent performance and fuel level accuracy for vehicles like the Ford Contour, Mercury Cougar, and Mystique.

Key Features of Delphi HP10224 Fuel Pump Hanger Assembly

• 12.0 Volt electric fuel pump with a maximum pressure of 109 psi
• Includes fuel level sender assembly with float arm for accurate fuel measurement
• External strainer inlet type with included strainer for fuel filtration
• Female push-in outlet with 0.313 inch outside diameter and two outlet ports
• Five male pin terminals for secure electrical connections
• Gasket and seal included for leak-free installation
• Average flow rating of 33 gallons per hour and system pressure of 51 psi
• Standard replacement grade part designed for gas fuel systems

Detailed Description and Technical Specifications

The Delphi HP10224 fuel pump hanger assembly is an electric, in-tank fuel pump designed specifically for gas-powered Ford Contour, Mercury Cougar, and Mystique models. It features a 12-volt operation with a maximum pressure rating of 109 psi, ensuring reliable fuel delivery under various driving conditions. The assembly includes a fuel level sender with a float arm, providing accurate fuel gauge readings. The external strainer inlet type helps prevent contaminants from entering the fuel system, while the included strainer enhances filtration. The outlet consists of two female push-in ports with a 0.313 inch outside diameter, facilitating proper fuel flow. Electrical connections are made via five male pin terminals, supporting stable and secure wiring. This standard replacement part comes with a gasket and seal to maintain a tight fit and prevent leaks during installation.

Common Applications and Issues Addressed

• Replacement for faulty or failing fuel pump hangers in Ford Contour, Mercury Cougar, and Mystique
• Resolves inconsistent fuel pressure or delivery problems
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel contamination issues with included external strainer
• Eliminates electrical connection failures with secure pin terminals

Installation Notes and Tips

• Ensure vehicle compatibility with Ford Contour, Mercury Cougar, or Mystique models before installation
• Handle the float arm carefully to avoid damage during installation
• Verify all electrical connections are secure and terminals are properly seated
• Replace the gasket and seal included in the package to prevent fuel leaks
• Follow vehicle manufacturer guidelines for fuel system servicing and safety precautions

Quality Assurance and Warranty Information

Delphi manufactures the HP10224 fuel pump hanger assembly to meet or exceed OEM standards for durability and performance. This part undergoes rigorous testing to ensure reliable operation within specified voltage, pressure, and flow parameters. The assembly is backed by Delphi's standard replacement part warranty, providing confidence in its quality and longevity when installed in compatible Ford and Mercury vehicles.
