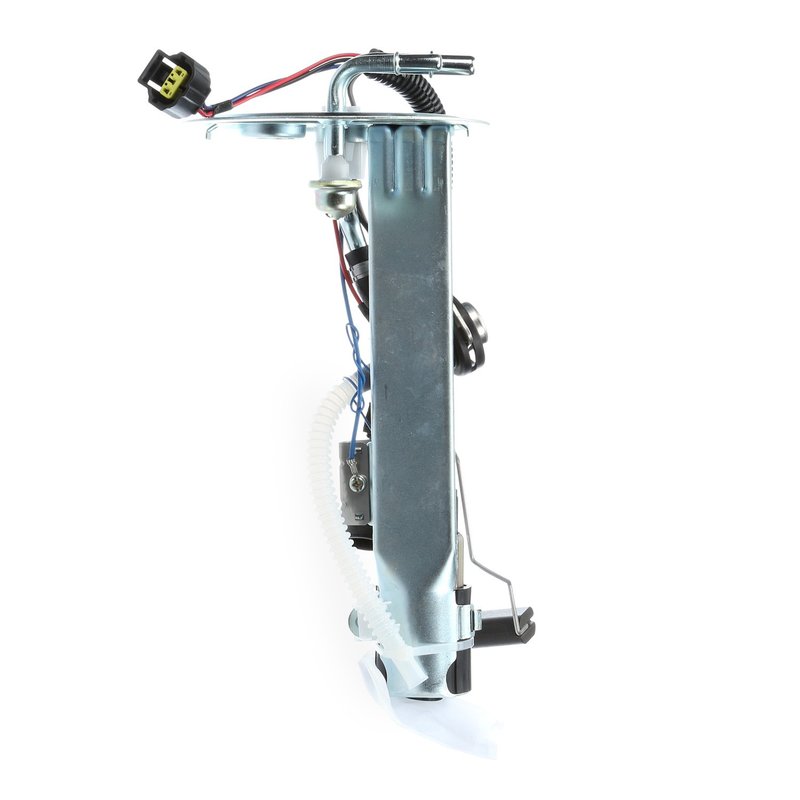

Delphi HP10228 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly for Ford Ranger

The Delphi HP10228 fuel pump hanger assembly is designed specifically for Ford Ranger models requiring reliable in-tank fuel delivery components. This electric fuel pump hanger assembly integrates a fuel level sender and is engineered to maintain consistent fuel pressure and flow for optimal engine performance.

Key Features of Delphi HP10228 Fuel Pump Hanger Assembly

• Compatible with Ford Ranger fuel systems
• 12.0 Volt electric pump with a maximum pressure of 94 psi
• Includes fuel level sender assembly with float arm for accurate fuel measurement
• External strainer inlet type with included strainer for fuel filtration
• Quick connect outlet type with two outlets, 0.375 inch outside diameter
• Seven male pin terminals for secure electrical connections
• Gasket and seal included for leak-free installation
• Average flow rating of 28 gallons per hour and system pressure of 65 psi

Detailed Description of the Delphi HP10228 Fuel Pump Hanger Assembly

This Delphi fuel pump hanger assembly (part number HP10228) is a standard replacement component designed for in-tank installation in Ford Ranger vehicles. The assembly features a 12-volt electric pump capable of delivering an average flow rate of 28 gallons per hour, supporting fuel system pressures up to 65 psi. It includes an external strainer inlet to protect the pump from contaminants and a quick connect outlet with two ports, each measuring 0.375 inches in diameter, ensuring compatibility with factory fuel lines.

The assembly also incorporates a fuel level sender with a float arm, providing accurate fuel level readings to the vehicle’s gauge. Electrical connections are facilitated by seven male pin terminals, designed for secure and reliable contact. The package includes a gasket and seal to ensure a proper fit and prevent leaks during installation.

Common Applications and Issues Addressed

• Replacement of faulty or worn fuel pump hangers in Ford Ranger models
• Resolving inconsistent fuel pressure or flow problems
• Fixing inaccurate fuel level readings due to sender assembly failure
• Addressing fuel contamination issues with the included external strainer
• Repairing electrical connection problems with the seven-pin terminal design

Installation Notes and Tips

• Ensure the vehicle is safely lifted and the fuel tank is accessible before installation
• Disconnect the battery to prevent electrical hazards during replacement
• Carefully remove the old fuel pump hanger assembly to avoid damaging the fuel tank or lines
• Verify the gasket and seal are properly seated to prevent fuel leaks
• Reconnect all electrical terminals securely and test fuel pump operation before reassembling

Quality Assurance and Warranty Information

The Delphi HP10228 fuel pump hanger assembly is manufactured to meet OEM specifications for Ford Ranger vehicles. It undergoes rigorous quality control to ensure durability and reliable performance. This part is offered as a standard replacement component and typically includes a limited warranty covering defects in materials and workmanship. Refer to the product documentation for specific warranty terms.
