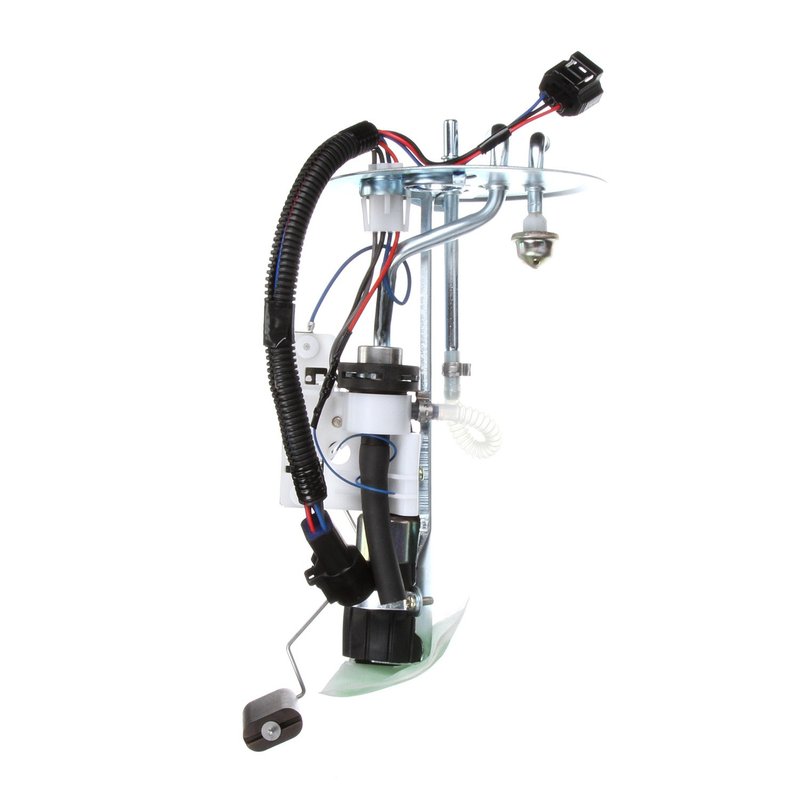

Delphi HP10230 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly for Ford Ranger

The Delphi HP10230 fuel pump hanger assembly is designed specifically for Ford Ranger models requiring reliable in-tank fuel delivery components. This electric fuel pump hanger assembly integrates a fuel level sender and strainer to ensure consistent fuel flow and accurate fuel level readings.

Key Features of Delphi HP10230 Fuel Pump Hanger Assembly

• 12.0 Volt electric fuel pump with a maximum pressure of 87 psi
• Compatible with gasoline fuel systems
• Includes external strainer and fuel level sender assembly for precise fuel monitoring
• Quick connect outlet type with 0.375 inch outside diameter
• Seven male pin terminals for secure electrical connections
• In-tank installation designed for Ford Ranger fuel systems
• Comes with gasket/seal and two retainer clips for proper sealing and mounting
• Average flow rating of 28 gallons per hour and system pressure of 65 psi

Detailed Description of the Delphi HP10230

The Delphi HP10230 fuel pump hanger assembly is engineered as a standard replacement part for Ford Ranger vehicles. It features a 12-volt electric pump capable of maintaining system pressures up to 87 psi, ensuring efficient fuel delivery under various driving conditions. The assembly includes an external strainer inlet to filter contaminants before fuel enters the pump, protecting the fuel system components. The fuel level sender assembly integrated into the hanger provides accurate fuel level readings, with resistance values ranging from 15 ohms (empty) to 162 ohms (full). The quick connect outlet with three outlets and a 0.375-inch diameter facilitates straightforward fuel line connections. This assembly is designed for in-tank installation, matching the original equipment specifications for Ford Ranger models.

Common Applications and Issues Addressed

• Replacement of faulty or worn fuel pump hangers in Ford Ranger vehicles
• Resolving inconsistent fuel pressure or delivery problems
• Fixing inaccurate fuel gauge readings due to faulty sender units
• Addressing fuel contamination issues with included external strainer
• Repairing electrical connection failures with secure seven-pin male terminals

Installation Notes and Tips

• Ensure the vehicle is depressurized and battery disconnected before installation
• Verify compatibility with your specific Ford Ranger model year
• Use the included gasket and retainer clips to secure the assembly and prevent leaks
• Handle the fuel level sender float arm carefully to avoid damage
• Check all electrical connections for proper fit and corrosion-free contact

Quality Assurance and Warranty

Delphi manufactures the HP10230 fuel pump hanger assembly to meet or exceed OEM standards for durability and performance. This part is a standard replacement grade component designed for reliable operation within Ford Ranger fuel systems. The assembly includes all necessary seals and mounting hardware to facilitate proper installation. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
