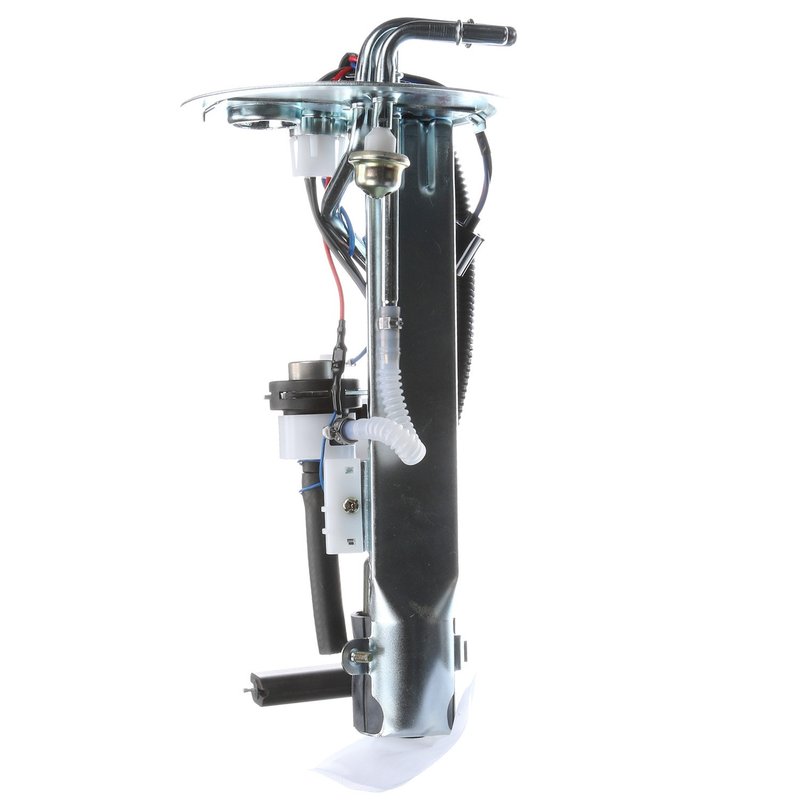

Delphi HP10231 Fuel Pump Hanger Assembly
| Brand | Delphi HP10231 |
|---|---|
| Average Current Draw | 6 |
| Average Flow Rating | 28 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | No |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Item Grade | Standard Replacement |
| Maximum Pressure | 94.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 3 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Hanger Assembly w/Float Arm, Instruction Sheet |
| Pump Type | Electric |
| Resistance Ohms Empty | 15.0 |
| Resistance Ohms Full | 160.0 |
| Strainer Included | Yes |
| System Pressure | 65 psi |
| Terminal Gender | Male |
| Terminal Quantity | 7 |
| Terminal Type | Pin |
| Voltage | 12.0 |
| Fits | Ford · 3 vehicles |
Standard replacement. Built as a direct-fit fuel pump hanger assembly.
Strainer included. Helps keep fuel delivery cleaner and more consistent.
OE heritage. Backed by Delphi's century of OE experience.
Cross-references Airtex Fuel Pumps E2278S, Airtex Fuel Pumps E2471 and DENSO Auto Parts 951-0008 for the same application. See all 16.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Hanger Assembly for Ford Ranger
Delphi HP10231 is an in-tank fuel pump hanger assembly for gas applications, built for 12-volt systems and rated for up to 94 psi maximum pressure. It includes the fuel level sender assembly and strainer, making it a direct replacement option for 2000-2001 Ford Ranger fuel system service.
Key Features
- In-tank electric fuel pump hanger assembly for gas fuel systems
- 12.0-volt design with a 65 psi system pressure rating
- Maximum pressure rating of 94.0 psi
- Includes fuel level sender assembly and external strainer
- Quick-connect outlet design with three outlets
- Pin-style terminal connection with 7 terminals and male terminal gender
- Standard replacement grade for service repair
- Delphi HP10231 fuel pump hanger assembly for Ford Ranger applications
Detailed Description
Delphi HP10231 is engineered as an OE-style fuel pump hanger assembly for the 2000-2001 Ford Ranger. Delphi draws on long-term OE experience and supplier knowledge to produce aftermarket fuel system components that follow original equipment design expectations for fit and function. This assembly is configured for in-tank installation, uses a quick-connect outlet, and includes the fuel level sender assembly for a complete fuel delivery service solution. If you are replacing a worn fuel pump hanger assembly on a Ford Ranger, HP10231 provides the core components needed to restore fuel delivery and tank level reporting.
This part cross-references Airtex Fuel Pumps (e.g., E2278S, E2471) for the same application.
What It Helps Fix
- Hard starting caused by weak or inconsistent fuel delivery
- Engine stalling from low fuel pressure
- Inaccurate fuel gauge readings from a failing sender assembly
- Fuel starvation under load from a worn in-tank pump assembly
- Fuel system service needs on 2000-2001 Ford Ranger models
Installation Notes and Tips
Fits 2000-2001 Ford Ranger, N/A. Clean the fuel tank before installing the fuel pump to prevent future seal problems. Verify connector style, outlet configuration, and system pressure requirements before installation. Because this is an in-tank assembly, proper tank access and careful handling of the sender float arm are important during service.
Quality Assurance
Delphi builds this fuel pump hanger assembly using OE heritage and application knowledge developed from supplying major automakers. The HP10231 is a standard replacement part intended to meet the demands of everyday fuel system repair on Ford Ranger applications.
| Year | Make | Model | Fuel Type | Wheel Base | Position | Notes |
|---|---|---|---|---|---|---|
| 2001 | Ford | Ranger | — | 118.0" | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2000 | Ford | Ranger | — | 118.0" | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2000 | Ford | Ranger | GAS | 118.0" | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
