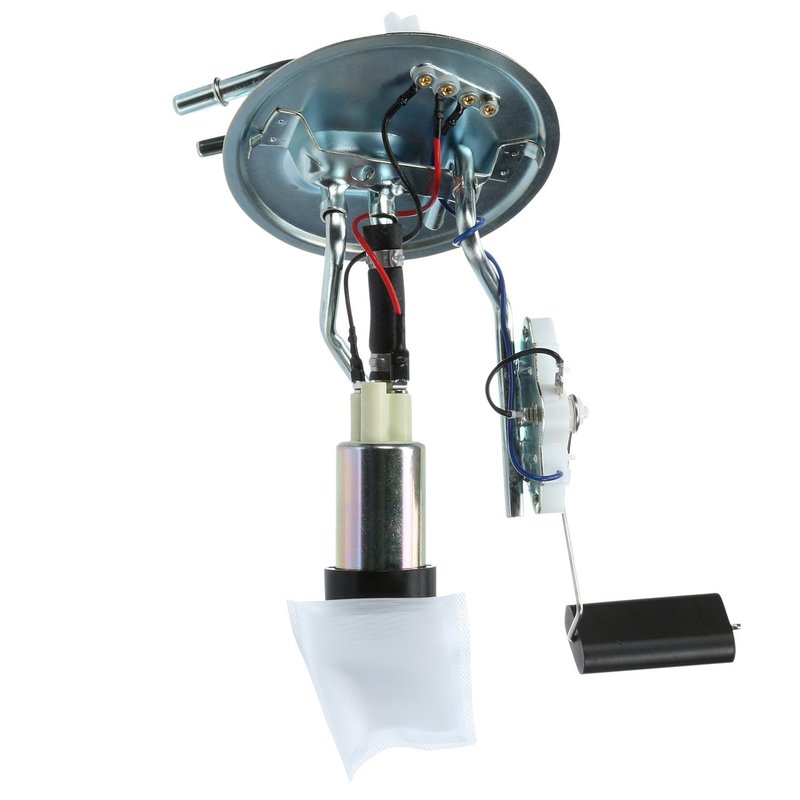

Delphi HP10232 Fuel Pump Hanger Assembly

Reliable Fuel Pump Hanger Assembly for Ford and Mercury Vehicles

The Delphi HP10232 fuel pump hanger assembly is designed for in-tank installation, providing consistent fuel delivery for Ford Taurus and Mercury Sable models. Engineered to meet standard replacement specifications, this electric fuel pump hanger assembly ensures proper fuel system performance and compatibility.

Key Features of Delphi HP10232 Fuel Pump Hanger Assembly

• 12.0 Volt electric fuel pump with a maximum pressure of 94 psi
• Includes fuel level sender assembly with float arm for accurate fuel measurement
• External strainer inlet type with included strainer for fuel filtration
• Quick connect outlet type with two outlets and 0.375 inch outside diameter
• Four male pin terminals for secure electrical connections
• Gasket and seal included for leak-free installation
• Average flow rating of 26 gallons per hour and system pressure of 36 psi

Detailed Description of the Delphi HP10232 Fuel Pump Hanger Assembly

This Delphi fuel pump hanger assembly (part number HP10232) is specifically designed for gas fuel systems in Ford Taurus and Mercury Sable vehicles. The assembly features a 12-volt electric pump capable of maintaining a maximum pressure of 94 psi, ensuring efficient fuel delivery under various driving conditions. The external strainer inlet type helps protect the pump from contaminants, while the included strainer further enhances fuel filtration. The quick connect outlet with two outlets and a 0.375 inch outside diameter allows for straightforward installation and reliable fuel flow. The four male pin terminals provide secure electrical connections, supporting an average current draw of 6 amps. Additionally, the assembly includes a fuel level sender with a float arm, enabling accurate fuel level readings on the vehicle’s dashboard. This standard replacement grade part comes with a gasket and seal to ensure a proper fit and prevent leaks during installation.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Ford Taurus and Mercury Sable
• Resolves inconsistent fuel pressure or delivery problems
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel contamination issues with included external strainer
• Eliminates electrical connection problems with secure four-pin terminals

Installation Notes and Tips

• Ensure vehicle compatibility with Ford Taurus and Mercury Sable models before installation
• Handle the fuel pump hanger assembly carefully to avoid damage to the float arm and strainer
• Verify all electrical connections are secure and terminals are properly seated
• Replace the gasket and seal included in the package to prevent fuel leaks
• Follow manufacturer torque specifications for lock ring and retainer installation

Quality Assurance and Warranty Information

The Delphi HP10232 fuel pump hanger assembly is manufactured to meet OEM standards for fit, form, and function. This standard replacement part undergoes rigorous quality control to ensure reliable performance in Ford Taurus and Mercury Sable vehicles. While specific warranty details may vary, Delphi products typically include a limited warranty against defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
