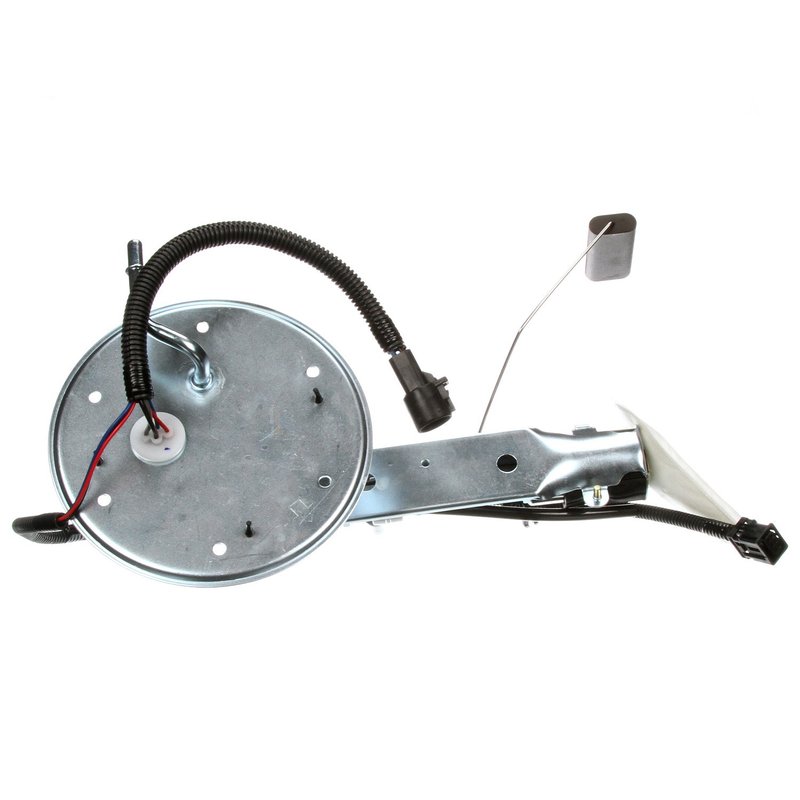

Delphi HP10233 Fuel Pump Hanger Assembly

Reliable Fuel Pump Hanger Assembly for Ford, Lincoln, and Mercury

The Delphi HP10233 fuel pump hanger assembly is designed for precise fuel delivery in select Ford, Lincoln, and Mercury vehicles. Engineered to meet OEM specifications, this in-tank electric fuel pump assembly ensures consistent performance and compatibility with your Crown Victoria, Grand Marquis, Marauder, or Town Car.

Key Features of Delphi HP10233 Fuel Pump Hanger Assembly

• 12.0 Volt electric fuel pump with a maximum pressure of 109 psi
• Includes fuel level sender assembly with float arm for accurate fuel measurement
• External strainer inlet type with included strainer for fuel filtration
• Quick connect outlet type with 0.375 inch outside diameter for secure fuel line attachment
• Seven male pin terminals for reliable electrical connections
• Gasket and seal included to ensure leak-free installation
• Average flow rating of 26 gallons per hour and system pressure of 36 psi
• Standard replacement grade designed for in-tank installation

Detailed Description and Technical Specifications

The Delphi HP10233 fuel pump hanger assembly is an electric pump designed specifically for gasoline fuel systems in Ford Crown Victoria, Lincoln Town Car, Mercury Grand Marquis, and Marauder models. Operating at 12 volts, it delivers a consistent flow rate of 26 gallons per hour and maintains system pressure at 36 psi, supporting optimal engine performance. The assembly features a quick connect outlet with a 0.375 inch outside diameter, facilitating straightforward fuel line connections. It includes a fuel level sender assembly with a float arm, providing accurate fuel level readings. The external strainer inlet type helps prevent contaminants from entering the fuel system, enhancing durability. Seven male pin terminals ensure secure electrical connections, and the included gasket and seal help maintain a leak-free installation. This standard replacement grade part is designed for in-tank mounting, matching OEM fit and function.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Ford Crown Victoria, Lincoln Town Car, Mercury Grand Marquis, and Marauder
• Resolves inconsistent fuel pressure or flow problems affecting engine performance
• Addresses fuel level sender malfunctions causing inaccurate fuel gauge readings
• Prevents fuel leaks with included gasket and seal components
• Improves fuel filtration with external strainer to reduce clogging and wear

Installation Notes and Tips

• Ensure vehicle compatibility with Ford, Lincoln, or Mercury models listed before installation
• Disconnect the battery and relieve fuel system pressure prior to removal
• Handle the fuel pump assembly carefully to avoid damage to the float arm and electrical terminals
• Verify all electrical connections are secure and free of corrosion
• Replace the gasket and seal included in the package to prevent leaks

Quality Assurance and Warranty Information

Delphi manufactures the HP10233 fuel pump hanger assembly to meet or exceed OEM standards for durability and performance. This part undergoes rigorous testing to ensure reliable operation under normal driving conditions. It is offered as a standard replacement grade component, backed by Delphi's quality assurance protocols. Please refer to Delphi's warranty terms for specific coverage details.
