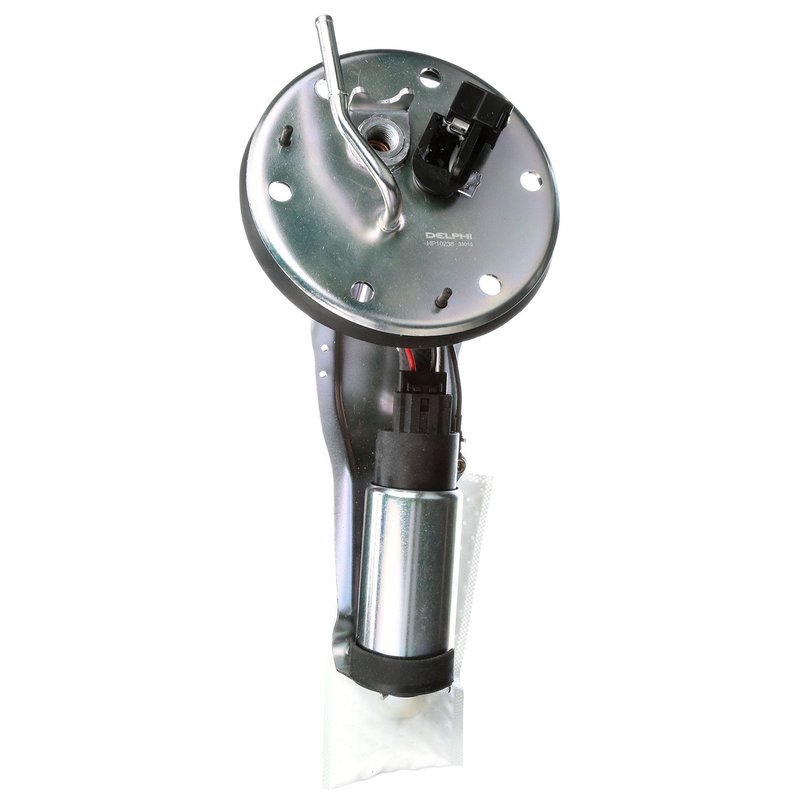

Delphi HP10238 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10238 fuel pump hanger assembly is designed for reliable fuel delivery in select Acura and Honda vehicles. This in-tank electric fuel pump assembly supports gas engines and is engineered to meet the specific requirements of models like the Honda Civic and Acura Integra.

• 12.0 Volt electric fuel pump hanger assembly
• Compatible with gas fuel systems
• Maximum pressure rating of 80 psi, system pressure at 44 psi
• Includes external strainer with inlet strainer type
• Threaded outlet fittings (M10-1.25) with two outlets
• Pin-type male terminals, two terminal quantity
• Average current draw of 5 amps and flow rating of 21 liters per hour
• Standard replacement grade without fuel level sender assembly or gasket/seal

Technical Details and Specifications

The Delphi HP10238 fuel pump hanger assembly operates at 12 volts and is designed for use with gasoline fuel systems. It features an electric pump type with an external strainer to ensure clean fuel delivery. The assembly includes two male pin terminals for electrical connection and two threaded outlet fittings sized M10-1.25 for secure fuel line attachment. With a maximum pressure capacity of 80 psi and a system pressure of 44 psi, this pump hanger assembly supports consistent fuel flow rated at 21 liters per hour while drawing an average current of 5 amps. This part is intended for in-tank installation and does not include a fuel level sender or gasket/seal, making it suitable for direct replacement in compatible Acura and Honda models.

Compatible Vehicles and Applications

This fuel pump hanger assembly is compatible with the following vehicles:

• Acura Integra
• Honda Civic

It is designed to replace the original equipment fuel pump hanger assembly in these models, ensuring proper fit and function within the fuel delivery system.

Common Issues Addressed by This Fuel Pump Hanger Assembly

• Fuel delivery interruptions causing engine stalling or hesitation
• Low fuel pressure affecting engine performance
• Fuel pump failure due to worn or damaged components
• Contaminated fuel supply from clogged strainers
• Electrical connection problems with faulty terminals

Installation Notes and Tips

When installing the Delphi HP10238 fuel pump hanger assembly, ensure the vehicle’s fuel system is depressurized and the battery is disconnected to prevent electrical hazards. This assembly is designed for in-tank installation, so proper handling of the fuel tank and associated components is necessary. Verify the terminal connections match the vehicle’s wiring harness and confirm the threaded outlet fittings are securely tightened to prevent leaks. Since this assembly does not include a gasket or seal, reuse the original or install a new compatible seal to maintain system integrity.

Quality Assurance and Warranty Information

Delphi manufactures this fuel pump hanger assembly to meet standard replacement grade specifications, ensuring reliable performance and durability. While no specific warranty details are provided, Delphi parts typically adhere to industry quality standards and undergo rigorous testing to comply with OEM requirements for Acura and Honda vehicles.
