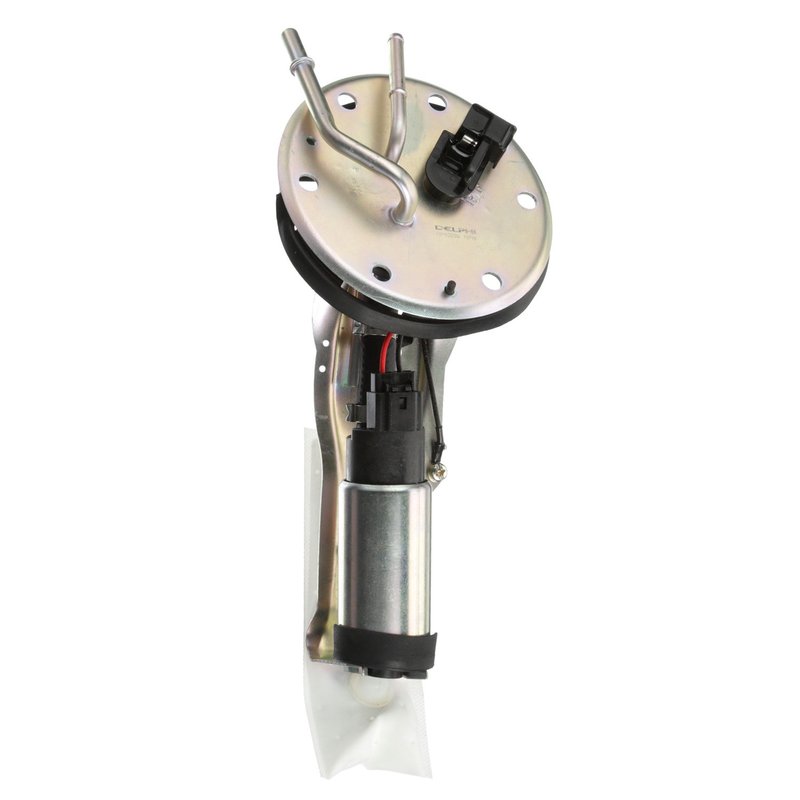

Delphi HP10239 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10239 fuel pump hanger assembly is designed specifically for Honda Civic models requiring reliable in-tank fuel delivery components. This electric fuel pump hanger assembly ensures consistent fuel flow and pressure, supporting optimal engine performance.

• Compatible with Honda Civic fuel systems
• Electric pump type with 12.0 voltage operation
• Maximum pressure rating of 94 psi and system pressure of 33 psi
• Includes external strainer and quick connect outlet type
• Two male pin terminals with an average current draw of 6 amps
• Fuel type: Gasoline
• Standard replacement grade without fuel level sender assembly

Technical Details and Features

The Delphi HP10239 fuel pump hanger assembly features a 0.313-inch outlet outside diameter and two quick connect outlets for efficient fuel delivery. It operates at 12 volts and is designed for gasoline fuel systems. The assembly includes an external strainer to filter contaminants before fuel enters the pump, enhancing durability and performance. With a maximum pressure of 94 psi and a system pressure of 33 psi, this pump hanger assembly maintains consistent fuel flow rated at 26 gallons per hour. The unit has two male pin terminals for electrical connection, ensuring compatibility with the Honda Civic's wiring harness.

Applications and Problem Resolution

• Replaces faulty or worn fuel pump hanger assemblies in Honda Civic vehicles
• Addresses fuel delivery issues such as low fuel pressure or inconsistent flow
• Helps resolve engine stalling or hesitation caused by fuel pump failure
• Prevents fuel contamination with the included external strainer
• Supports proper fuel system operation without a fuel level sender assembly

Installation Notes and Tips

Installation of the Delphi HP10239 fuel pump hanger assembly requires removal of the fuel tank to access the in-tank pump. Ensure the electrical connectors match the two male pin terminals on the assembly. The quick connect outlet fittings simplify fuel line attachment. Since the assembly does not include a gasket or seal, reuse the original or install a new compatible seal to prevent leaks. Follow all safety precautions when working with fuel system components.

Quality Assurance and Warranty

This Delphi fuel pump hanger assembly is a standard replacement part manufactured to meet OEM specifications for Honda Civic vehicles. While no specific warranty details are provided, Delphi parts are generally produced under strict quality control standards to ensure reliable performance and durability in automotive fuel delivery systems.
