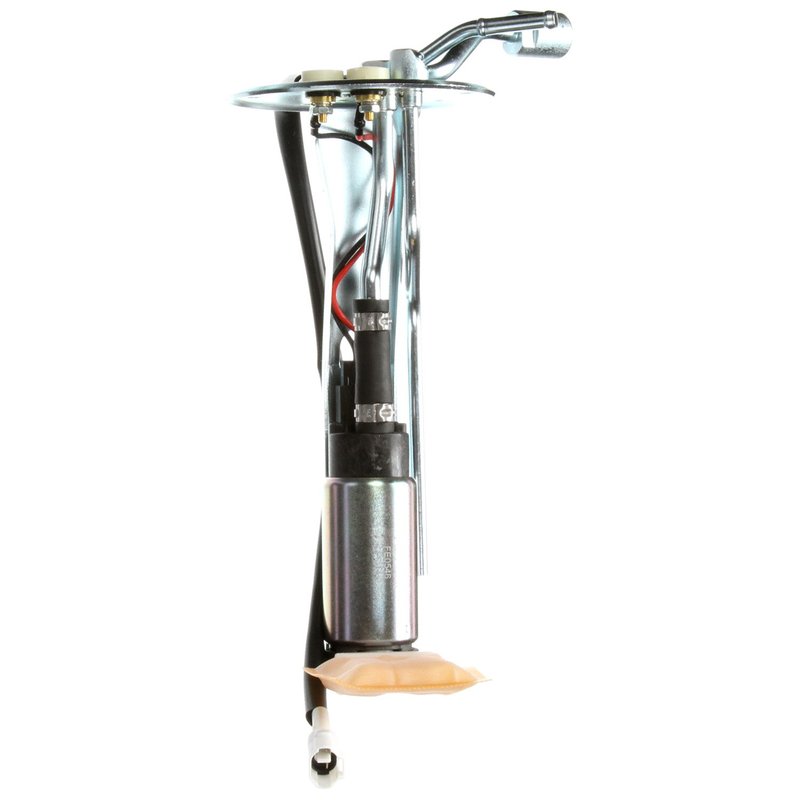

Delphi HP10242 Fuel Pump Hanger Assembly

Reliable Fuel Pump Hanger Assembly for Chevrolet, Geo, and Suzuki

The Delphi HP10242 fuel pump hanger assembly is designed for in-tank installation, providing consistent fuel delivery for gasoline engines. Engineered to meet standard replacement specifications, this electric fuel pump hanger assembly is compatible with Chevrolet Sidekick and Geo Tracker models, as well as Suzuki vehicles.

Key Features of Delphi HP10242 Fuel Pump Hanger Assembly

• Operates on 12.0 volts for efficient electric fuel pumping
• Designed for gasoline fuel systems with a maximum pressure rating of 65 psi
• Includes an external strainer inlet and a threaded outlet with M14-1.5 fitting size
• Equipped with two male pin terminals for secure electrical connections
• Comes with a gasket and seal to ensure leak-free installation
• Average flow rating of 34 liters per hour and system pressure of 40 psi
• Includes fuel pump hanger assembly without float arm, six bolts, and mounting bracket

Detailed Description of the Delphi HP10242 Fuel Pump Hanger Assembly

This Delphi fuel pump hanger assembly (part number HP10242) is an electric in-tank pump designed to maintain consistent fuel pressure and flow for gasoline-powered vehicles. The assembly features an external strainer inlet to filter fuel before it enters the pump, helping to protect the fuel system from contaminants. The threaded outlet with M14-1.5 fitting ensures a secure connection to the fuel line. With two male pin terminals, the electrical connection is straightforward and reliable. The included gasket and seal help prevent leaks during installation. This assembly is engineered as a standard replacement part, making it suitable for maintaining the fuel delivery system in Chevrolet Sidekick, Geo Tracker, and compatible Suzuki models.

Common Applications and Issues Resolved

• Restores proper fuel pressure and flow in Chevrolet Sidekick and Geo Tracker fuel systems
• Replaces faulty or worn fuel pump hangers causing fuel delivery interruptions
• Addresses fuel pump noise or inconsistent engine performance related to pump failure
• Prevents fuel leaks with included gasket and seal components
• Improves fuel filtration with external strainer to reduce clogging and wear

Installation Notes and Tips

• Ensure vehicle compatibility with Chevrolet Sidekick, Geo Tracker, or Suzuki models before installation
• Disconnect the battery and relieve fuel system pressure prior to removal of the old fuel pump hanger assembly
• Use the included gasket and seal to prevent leaks and ensure a secure fit
• Verify electrical connections match the two male pin terminals for proper operation
• Follow manufacturer torque specifications when installing mounting bolts and bracket

Quality Assurance and Warranty Information

Delphi manufactures the HP10242 fuel pump hanger assembly to meet standard replacement quality standards. The product undergoes rigorous testing to ensure reliable performance under normal operating conditions. While specific warranty details may vary, Delphi typically offers coverage against manufacturing defects. Consult product documentation or authorized sources for exact warranty terms.
