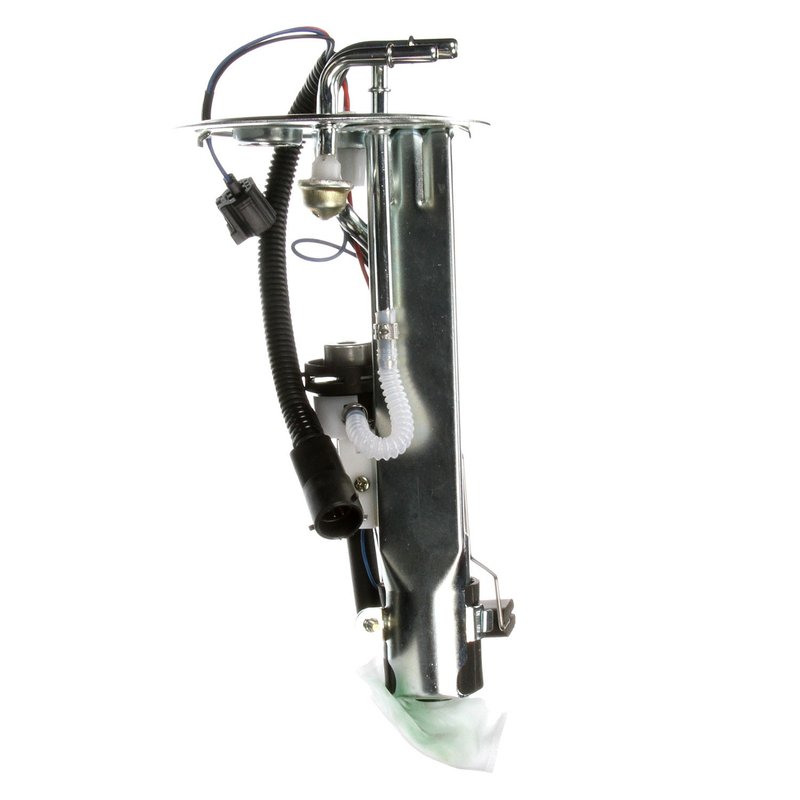

Delphi HP10244 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10244 fuel pump hanger assembly is designed for reliable fuel delivery in Mazda B4000 vehicles. This in-tank electric fuel pump assembly includes a fuel level sender and is engineered to maintain consistent fuel pressure and flow for optimal engine performance.

• Compatible with Mazda B4000 models
• 12.0 Volt electric fuel pump with a maximum pressure of 109 psi
• Includes fuel level sender assembly with float arm
• External strainer inlet type with quick connect outlet
• Seven male pin terminals for secure electrical connections
• Comes with gasket/seal and two retainer clips for installation
• Average flow rating of 34 liters per hour and system pressure of 65 psi

Technical Details and Features

The Delphi HP10244 fuel pump hanger assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an external strainer inlet and a quick connect outlet with an outside diameter of 0.375 inches. The assembly includes seven male pin terminals to ensure proper electrical connectivity and an average current draw of 10 amps. The fuel pump hanger assembly also comes with a gasket or seal and two retainer clips to secure the unit within the fuel tank. The fuel level sender assembly with float arm is integrated, providing accurate fuel level readings. This standard replacement part supports a system pressure of 65 psi and a maximum pressure rating of 109 psi, suitable for maintaining consistent fuel delivery in Mazda B4000 trucks.

Applications and Problem Resolution

• Replaces faulty or worn fuel pump hanger assemblies in Mazda B4000
• Resolves fuel delivery issues such as low fuel pressure or inconsistent flow
• Fixes inaccurate fuel level readings caused by damaged sender units
• Addresses electrical connection problems with secure seven-pin male terminals
• Prevents fuel contamination with included external strainer

Installation Notes and Tips

Installation of the Delphi HP10244 fuel pump hanger assembly requires removal of the fuel tank to access the in-tank assembly. Ensure the gasket or seal is properly seated to prevent fuel leaks. Use the included retainer clips to secure the assembly firmly in place. Verify all seven male pin terminals are correctly connected to avoid electrical faults. It is recommended to inspect the fuel tank and lines for debris or damage during installation to maintain optimal fuel system performance.

Quality Assurance and Warranty

This Delphi fuel pump hanger assembly is a standard replacement part manufactured to meet OEM specifications for Mazda B4000 vehicles. It includes a fuel level sender assembly and is tested for electrical and pressure performance. Delphi provides a limited warranty covering defects in materials and workmanship, ensuring dependable operation when installed according to manufacturer guidelines.
