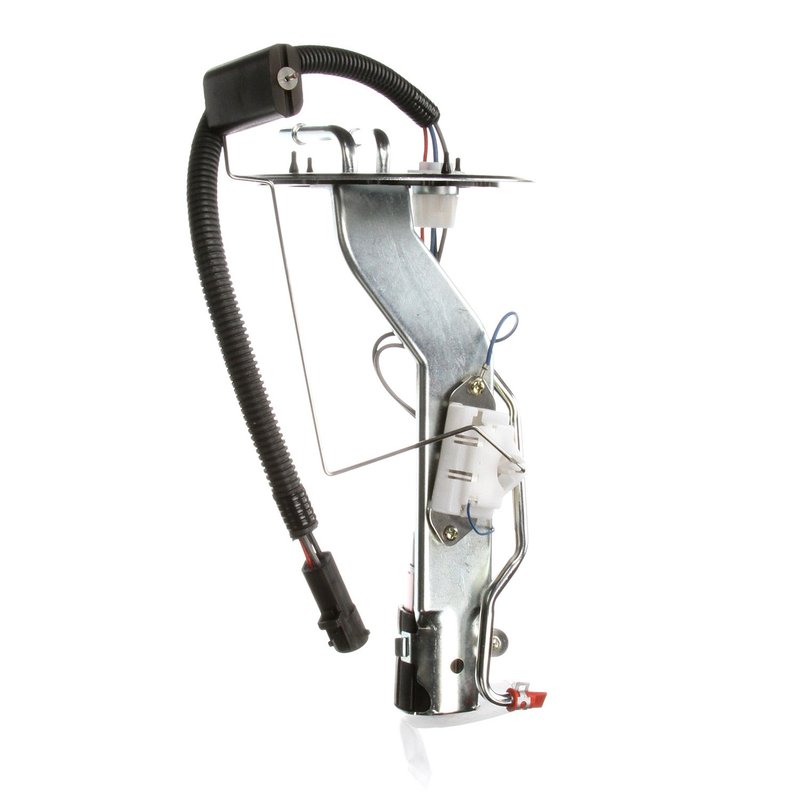

Delphi HP10247 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly for Ford Explorer

The Delphi HP10247 fuel pump hanger assembly is designed specifically for Ford Explorer models requiring a reliable in-tank fuel delivery solution. This electric fuel pump hanger assembly integrates a fuel level sender and strainer to ensure consistent fuel flow and accurate fuel level readings.

Key Features of Delphi HP10247 Fuel Pump Hanger Assembly

• Compatible with Ford Explorer fuel systems
• 12.0 Volt electric pump with a maximum pressure of 109 psi
• Includes fuel level sender assembly with float arm for precise fuel measurement
• External strainer inlet type with quick connect outlet (0.375 inch outside diameter)
• Four male pin terminals for secure electrical connections
• Comes with gasket or seal and strainer included for proper installation
• Average flow rating of 34 liters per hour and system pressure of 36 psi
• Standard replacement grade part designed for in-tank installation

Detailed Description of the Delphi HP10247 Fuel Pump Hanger Assembly

This Delphi fuel pump hanger assembly (part number HP10247) is engineered to meet the fuel delivery requirements of Ford Explorer vehicles. The electric pump operates at 12 volts and delivers an average flow rating of 34 liters per hour, maintaining a system pressure of 36 psi. The assembly features an external strainer inlet and a quick connect outlet with a 0.375-inch outside diameter, ensuring efficient fuel filtration and connection. The included fuel level sender assembly with float arm provides accurate fuel level readings, supported by resistance values of 15 ohms when empty and 160 ohms when full. The four male pin terminals facilitate reliable electrical connections, while the included gasket or seal helps maintain a secure and leak-free installation.

Common Applications and Issues Addressed

• Replacement for faulty or failing in-tank fuel pumps on Ford Explorer models
• Resolves inconsistent fuel pressure or flow problems
• Fixes inaccurate fuel gauge readings due to faulty fuel level sender
• Addresses fuel contamination issues with included external strainer
• Eliminates electrical connection failures with secure pin terminals

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent electrical hazards
• Verify compatibility with your specific Ford Explorer model year before installation
• Use the included gasket or seal to prevent fuel leaks during assembly
• Handle the float arm carefully to avoid damage to the fuel level sender
• Check all electrical connections for secure fitment of the four male pin terminals

Quality Assurance and Warranty Information

The Delphi HP10247 fuel pump hanger assembly is manufactured to meet standard replacement grade specifications, ensuring reliable performance in Ford Explorer vehicles. Delphi provides quality assurance backed by industry standards, although specific warranty terms should be confirmed with the parts distributor or installer.
