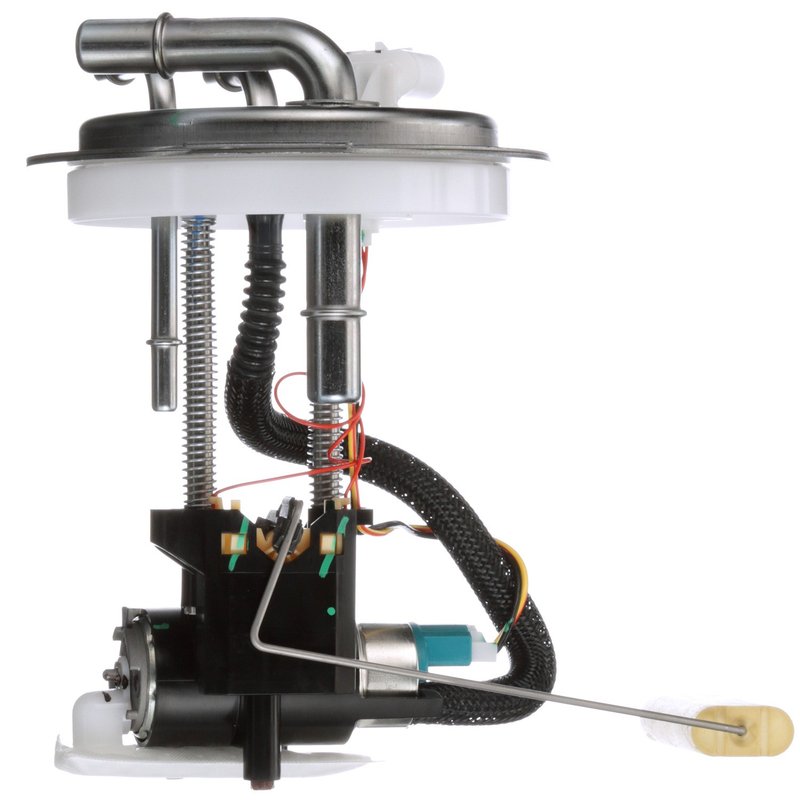

Delphi HP10248 Fuel Pump Hanger Assembly

Reliable Fuel Pump Hanger Assembly for Buick, Chevrolet, and GMC

The Delphi HP10248 fuel pump hanger assembly is designed for in-tank installation, providing consistent fuel delivery for select Buick, Chevrolet, and GMC models. Engineered to meet standard replacement specifications, this assembly includes a fuel level sender and is compatible with gas fuel systems operating at 12 volts.

Key Features of Delphi HP10248 Fuel Pump Hanger Assembly

• Outlet outside diameter: 0.375 inches for precise fuel flow
• Operates on 12.0 volts suitable for electric fuel pumps
• Compatible with gasoline fuel systems
• Includes blade-type terminals, 4 in total, with male gender connectors
• Equipped with an external strainer and inlet strainer for fuel filtration
• Quick connect outlet type with three outlets for efficient fuel routing
• Comes with gasket and seal to ensure leak-free installation
• Includes fuel level sender assembly with float arm for accurate fuel measurement
• Average current draw of 10 amps, resistance ranges from 40 to 250 ohms depending on fuel level
• Standard replacement grade for reliable performance

Detailed Description of the Delphi HP10248 Fuel Pump Hanger Assembly

This Delphi fuel pump hanger assembly is specifically designed for in-tank use in Buick Acadia Limited, Chevrolet Enclave, and GMC Traverse models. The assembly features a 0.375-inch outlet diameter and a quick connect outlet type with three outlets, facilitating straightforward fuel line connections. The electric pump operates at 12 volts and includes an external strainer to protect the fuel system from contaminants. The assembly also incorporates a fuel level sender with a float arm, providing accurate fuel level readings to the vehicle’s gauge. Blade-type terminals with male connectors ensure secure electrical connections, and the included gasket and seal help maintain a tight, leak-free fit within the fuel tank.

Applications and Common Issues Addressed

• Replacement for faulty or worn fuel pump hanger assemblies in Buick Acadia Limited, Chevrolet Enclave, and GMC Traverse
• Resolves fuel delivery interruptions caused by clogged or damaged strainers
• Corrects inaccurate fuel level readings due to faulty sender assemblies
• Addresses electrical connection failures with reliable blade terminal design
• Prevents fuel leaks with included gasket and seal components

Installation Notes and Tips

Ensure the vehicle’s fuel tank is properly drained and depressurized before beginning installation. Handle the fuel pump hanger assembly carefully to avoid damaging the external strainer or float arm. Verify that all electrical connections are secure and that the gasket and seal are properly seated to prevent leaks. Use the included instruction sheet for detailed guidance specific to the Delphi HP10248 assembly.

Quality Assurance and Warranty Information

Delphi manufactures this fuel pump hanger assembly to meet standard replacement quality standards, ensuring compatibility and reliable operation in specified Buick, Chevrolet, and GMC models. The product includes a fuel level sender assembly and is tested for electrical resistance and current draw to meet OEM specifications. Warranty details should be confirmed with the point of purchase or manufacturer documentation.
