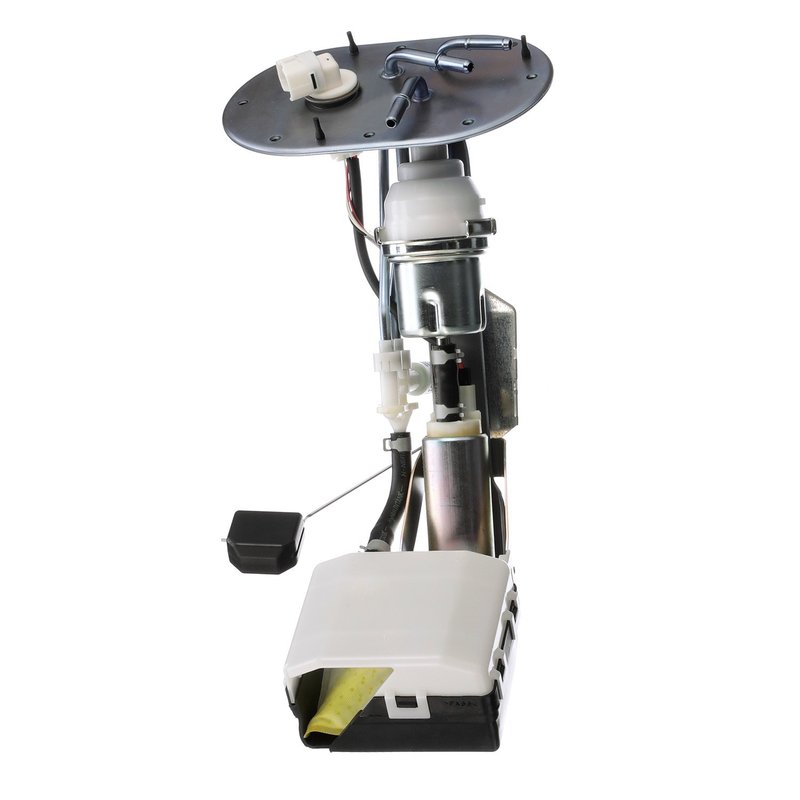

Delphi HP10250 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10250 fuel pump hanger assembly is designed specifically for Subaru Forester and Impreza models. This in-tank electric fuel pump assembly ensures reliable fuel delivery and accurate fuel level readings, making it a practical replacement part for maintaining your vehicle's fuel system performance.

• Compatible with Subaru Forester and Impreza
• 12.0 Volt electric fuel pump with a maximum pressure of 65 psi
• Includes fuel level sender assembly with float arm
• External strainer inlet and quick connect outlet with 0.313 inch diameter
• Blade-type male terminals, 6 terminals total
• Includes gasket and seal for secure installation
• Average flow rating of 39 liters per hour and system pressure of 34 psi

Technical Details and Features

The Delphi HP10250 fuel pump hanger assembly operates at 12 volts and is designed for gasoline fuel systems. It features an electric pump type with an average current draw of 10 amps, providing consistent fuel flow rated at 39 liters per hour. The assembly includes an external strainer inlet to protect the pump from debris and a quick connect outlet with three outlets measuring 0.313 inches in diameter for efficient fuel delivery. The six blade-type male terminals ensure secure electrical connections. Additionally, the unit comes with a gasket and seal to prevent leaks and includes a fuel level sender assembly with a float arm for accurate fuel gauge readings.

Applications and Problem Solving

• Replacement for faulty or worn fuel pump hangers in Subaru Forester and Impreza
• Resolves fuel delivery issues such as low pressure or inconsistent flow
• Fixes inaccurate fuel level readings caused by a malfunctioning sender assembly
• Addresses fuel pump noise or failure due to clogged strainers or electrical faults
• Prevents fuel leaks with included gasket and seal components

Installation Notes and Tips

Installation of the Delphi HP10250 fuel pump hanger assembly requires removal of the fuel tank. Ensure the vehicle battery is disconnected before beginning work to avoid electrical hazards. Carefully handle the float arm and sender assembly to prevent damage. Verify all electrical connections are secure and terminals are clean. Replace the gasket and seal included in the package to maintain a proper seal and prevent leaks. Follow the vehicle manufacturer’s service manual for detailed removal and installation procedures.

Quality Assurance and Warranty

This Delphi fuel pump hanger assembly is a standard replacement part manufactured to meet OEM specifications for Subaru Forester and Impreza models. It undergoes rigorous quality control to ensure reliable performance and durability. The product includes a gasket and seal to support proper installation and leak prevention. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
