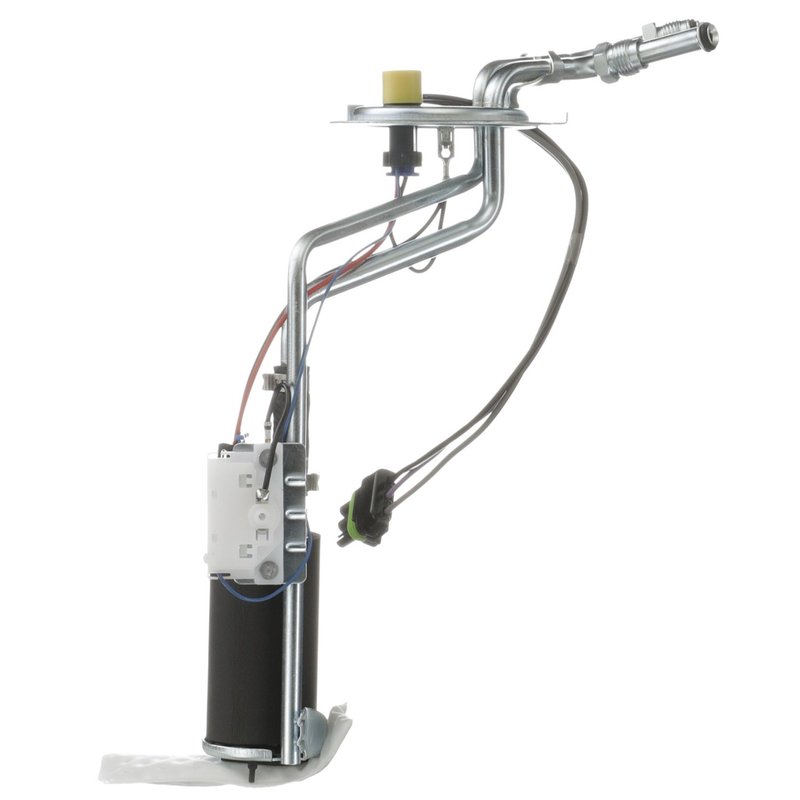

Delphi HP10260 Fuel Pump Hanger Assembly

Reliable Fuel Pump Hanger Assembly for Chevrolet Blazer and GMC Jimmy

The Delphi HP10260 fuel pump hanger assembly is designed for in-tank installation, providing consistent fuel delivery for Chevrolet Blazer and GMC Jimmy models. Engineered to operate at 12 volts with a maximum pressure of 101 psi, this assembly ensures efficient fuel system performance.

Key Features of Delphi HP10260 Fuel Pump Hanger Assembly

• Voltage: 12.0 V electric pump suitable for gas fuel systems
• Maximum pressure rating of 101 psi for reliable fuel delivery
• Includes fuel level sender assembly with float arm for accurate fuel measurement
• Three female pin terminals for secure electrical connections
• External strainer inlet type with M14-1.5 thread size
• Threaded outlet fittings (M16-1.5) with two outlets for fuel flow
• Comes with gasket, seals, lock ring, and installation instructions
• Average flow rating of 39 liters per hour and average current draw of 10 amps
• Standard replacement grade for dependable performance

Detailed Description of the Delphi HP10260 Fuel Pump Hanger Assembly

This Delphi fuel pump hanger assembly (part number HP10260) is specifically designed for in-tank installation in Chevrolet Blazer and GMC Jimmy vehicles. The electric pump operates at 12 volts and is optimized for gasoline fuel systems. It features an external strainer inlet with a thread size of M14-1.5, ensuring effective filtration before fuel enters the pump. The assembly includes two threaded outlet fittings (M16-1.5) to maintain proper fuel flow. The unit also incorporates a fuel level sender assembly with a float arm, providing accurate fuel level readings to the vehicle’s gauge. With three female pin terminals, the electrical connections are secure and compatible with factory wiring harnesses. The package includes all necessary seals, a lock ring, and detailed instructions to facilitate installation.

Common Applications and Issues Addressed

• Replacement for faulty or failing fuel pump hangers in Chevrolet Blazer and GMC Jimmy
• Resolves inconsistent fuel pressure or delivery problems
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel system leaks with included gaskets and seals
• Improves fuel pump electrical connectivity with proper terminal configuration

Installation Notes and Tips

• Ensure vehicle compatibility with Chevrolet Blazer and GMC Jimmy models before installation
• Disconnect the battery prior to removal of the old fuel pump hanger assembly
• Handle the float arm carefully to avoid damage during installation
• Use the included lock ring and seals to prevent fuel leaks
• Verify all electrical connections are secure and terminals match the factory harness

Quality Assurance and Warranty Information

The Delphi HP10260 fuel pump hanger assembly is manufactured to meet standard replacement grade specifications, ensuring reliable operation within the fuel delivery system. Delphi provides quality assurance backed by industry standards, although specific warranty terms should be confirmed with the point of purchase or manufacturer documentation.
