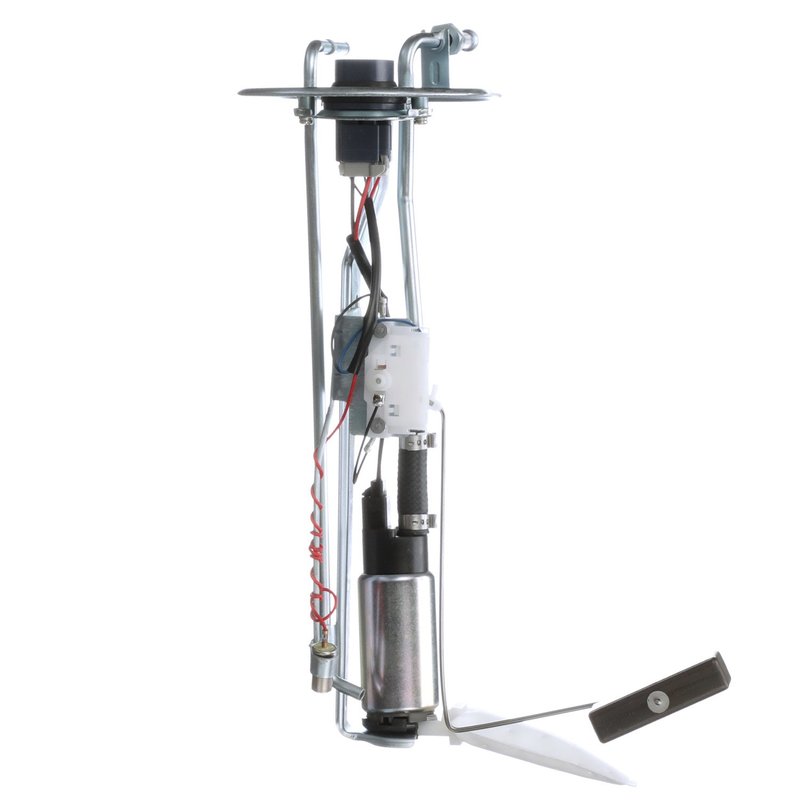

Delphi HP10264 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly for Toyota Tacoma

The Delphi HP10264 fuel pump hanger assembly is designed specifically for Toyota Tacoma models requiring a reliable in-tank fuel delivery solution. This electric fuel pump hanger assembly ensures consistent fuel flow and accurate fuel level readings for optimal engine performance.

• 12.0 Volt electric fuel pump compatible with gasoline fuel
• Maximum pressure rating of 80 psi with a system pressure of 44 psi
• Includes fuel level sender assembly with float arm for precise fuel measurement
• Five male blade terminals for secure electrical connections
• External strainer inlet and threaded outlet fittings (M14-1.5 thread size)
• Average flow rating of 26 liters per hour and average current draw of 10 amps
• Gasket and seal included to ensure leak-free installation
• Standard replacement grade part designed for in-tank installation

Technical Details and Features

The Delphi HP10264 fuel pump hanger assembly operates at 12 volts and is engineered for gasoline fuel systems. It features an electric pump type with a maximum pressure capacity of 80 psi, supporting a system pressure of 44 psi to maintain consistent fuel delivery. The assembly includes an external strainer inlet to filter fuel before it enters the pump, and two threaded outlet ports with M14-1.5 fittings for secure fuel line connections. The five male blade terminals provide reliable electrical connectivity, with resistance values ranging from 110 ohms when empty to 3 ohms when full, ensuring accurate fuel level readings. The included fuel level sender assembly with float arm allows precise monitoring of fuel tank levels. This standard replacement grade part is designed for in-tank installation, making it compatible with Toyota Tacoma fuel systems requiring this specific configuration.

Compatible Applications and Common Issues Addressed

• Replacement for faulty or failing fuel pump hangers in Toyota Tacoma models
• Resolves inconsistent fuel pressure or delivery problems
• Fixes inaccurate fuel gauge readings due to faulty sender assemblies
• Addresses fuel leaks caused by worn or missing gaskets and seals
• Improves engine performance by ensuring proper fuel flow and pressure

Installation Notes and Tips

When installing the Delphi HP10264 fuel pump hanger assembly, ensure the vehicle’s battery is disconnected to prevent electrical hazards. Confirm compatibility with your Toyota Tacoma model year and fuel system specifications before installation. Handle the float arm carefully to avoid damage to the fuel level sender assembly. Use the included gasket and seal to prevent fuel leaks and ensure a secure fit within the fuel tank. Properly torque all bolts and fittings to manufacturer specifications to maintain system integrity.

Quality Assurance and Warranty

Delphi manufactures the HP10264 fuel pump hanger assembly to meet standard replacement quality requirements, ensuring reliable performance and durability. The part includes a gasket and seal to maintain fuel system integrity. While specific warranty details are not provided, Delphi products typically adhere to industry standards for quality and reliability, making this assembly a dependable choice for Toyota Tacoma fuel system repairs.
