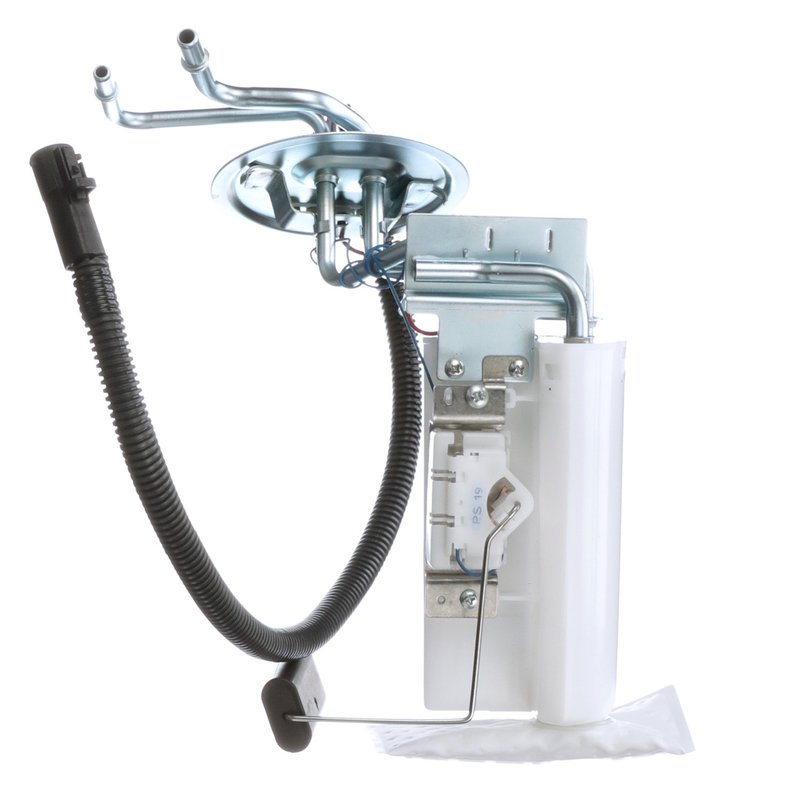

Delphi HP10265 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10265 fuel pump hanger assembly is designed for reliable fuel delivery in Ford trucks, including the F-150, F-250, F-250 HD, and F-350 models. This in-tank electric fuel pump assembly ensures consistent fuel pressure and flow for gasoline engines operating at 12 volts.

• Compatible with Ford F-150, F-250, F-250 HD, and F-350 models
• Electric fuel pump with 12.0 voltage rating
• Maximum pressure of 70 psi and system pressure of 45 psi
• Includes fuel level sender assembly with float arm
• Features external strainer inlet and quick connect outlet
• Four male pin terminals for secure electrical connection
• Comes with gasket, jumper harness, and lock ring
• Average flow rating of 24 gallons per hour

Technical Details and Specifications

The Delphi HP10265 fuel pump hanger assembly is engineered for gasoline fuel systems requiring precise pressure and flow control. It operates at 12 volts with an average current draw of 10 amps, supporting a maximum pressure of 70 psi and maintaining a system pressure of 45 psi. The assembly includes an external strainer inlet to protect the pump from debris and a quick connect outlet with an outside diameter of 0.375 inches, facilitating easy installation and secure fuel line connections. The four male pin terminals provide reliable electrical connectivity, and the included fuel level sender assembly with float arm allows accurate fuel level monitoring. Resistance values range from 15 ohms when empty to 160 ohms when full, ensuring proper sensor function.

Applications and Problem Solving

This fuel pump hanger assembly is specifically designed for use in Ford trucks such as the F-150, F-250, F-250 HD, and F-350. It addresses common fuel system issues including:

• Inconsistent fuel pressure causing engine performance problems
• Fuel pump failure due to clogged or damaged strainers
• Faulty fuel level readings from worn sender assemblies
• Electrical connection issues with damaged terminals
• Leaks or poor sealing from missing or damaged gaskets

Installation Notes and Tips

Installation of the Delphi HP10265 fuel pump hanger assembly requires removal of the fuel tank to access the in-tank assembly. Ensure the gasket or seal included is properly seated to prevent fuel leaks. Verify that the four-pin male terminals are securely connected to the vehicle’s wiring harness. The quick connect outlet simplifies fuel line attachment, but confirm all connections are tight. It is recommended to inspect the fuel tank and lines for contamination or damage during installation to maintain optimal fuel system performance.

Quality Assurance and Warranty

Delphi manufactures the HP10265 as a standard replacement part meeting OEM specifications for Ford trucks. The assembly includes a fuel level sender and strainer to maintain system integrity. While specific warranty details should be confirmed with the supplier, Delphi parts typically come with a limited warranty covering defects in materials and workmanship to ensure dependable operation.
