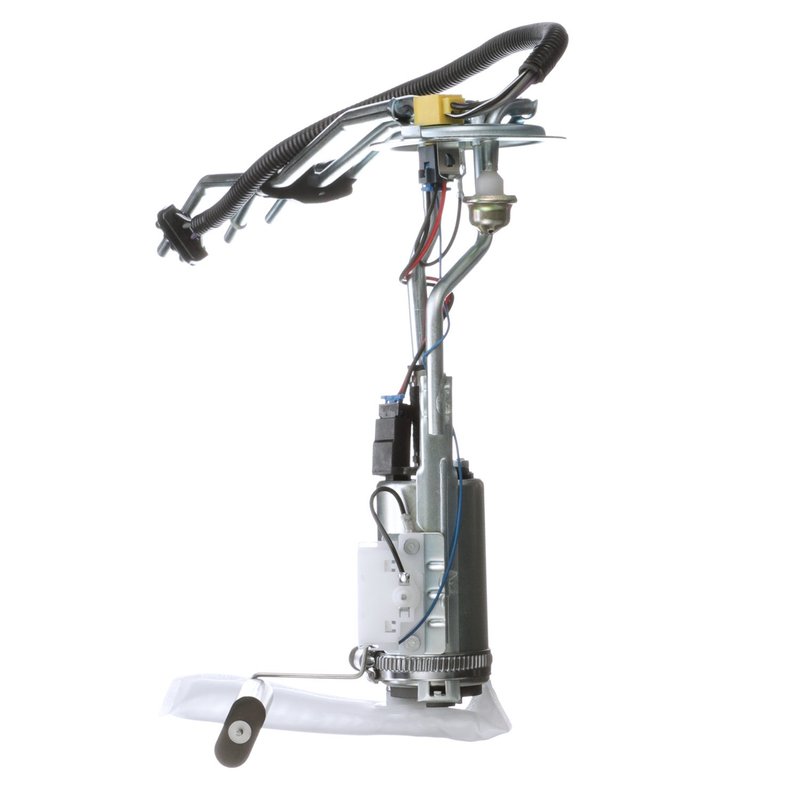

Delphi HP10267 Fuel Pump Hanger Assembly
| Brand | Delphi HP10267 |
|---|---|
| Outlet Outside Diameter | 0.375 |
| Voltage | 12.0 |
| Fuel Type | Gas |
| Maximum Pressure | 73.0 |
| Terminal Type | Pin |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Terminal Gender | Female |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 3 |
| In Tank or External | In tank |
| Resistance Ohms Empty | 1.0 |
| Resistance Ohms Full | 90.0 |
| Internal Or External Strainer | External |
| Average Current Draw | 10 |
| Average Flow Rating | 36 |
| Pump Type | Electric |
| Fuel Level Sender Assembly Included | Yes |
| Item Grade | Standard replacement |
| Package Contents | Fuel pump hanger assembly w/float arm, lock ring, seal, instructi |
| System Pressure | 44 psi |
| Fits | Buick · 1 vehicle |
Standard replacement. OE heritage built into this fuel pump hanger assembly.
Electric fuel pump. Delivers 36 average flow rating with 73 maximum pressure.
Fuel level sender included. Comes with float arm, lock ring, seal, and instruction sheet.
Cross-references Airtex Fuel Pumps E3628S, 19111388 and 25027568 for the same application. See all 6.
Fuel Pump Hanger Assembly for 1991 Buick Park Avenue
Delphi HP10267 is a standard replacement fuel pump hanger assembly for the 1991 Buick Park Avenue. Built for in-tank gasoline systems, it combines the pump hanger, fuel level sender assembly, strainer, seal, and quick-connect outlet design in one service part.
Key Features
- In-tank electric fuel pump hanger assembly for gasoline applications
- 12-volt design with a maximum pressure rating of 73.0
- Average flow rating of 36 and average current draw of 10
- Fuel level sender assembly included with 1.0 ohm empty and 90.0 ohm full resistance
- Quick-connect outlet with 0.375 in. outside diameter
- Gasket or seal included, along with strainer and float arm
- 4-pin female terminal configuration
Detailed Description
Delphi HP10267 is engineered as an OE-style fuel pump hanger assembly for the 1991 Buick Park Avenue. It is designed for in-tank gasoline fuel delivery and includes the fuel pump hanger assembly with float arm, fuel level sender assembly, strainer, lock ring, seal, and instruction sheet. The unit uses a quick-connect outlet layout with three outlet ports and a 4-terminal female pin connection, supporting direct service on the vehicle’s fuel system.
Delphi draws on long OE experience supplying major automakers, and that background is reflected in the fit, function, and component selection of this replacement assembly. HP10267 is also listed under cross-reference part numbers 19111388 and 25027568 for the same application. For buyers searching for a 1991 Buick Park Avenue fuel pump hanger assembly, Delphi HP10267 provides the correct in-tank replacement format.
What It Helps Fix
- Hard starting caused by weak fuel delivery
- Fuel pressure loss in an in-tank gasoline system
- Inaccurate fuel level readings from a worn sender
- Fuel starvation from a damaged or clogged strainer
- Leaks at the tank seal or hanger connection
Installation Notes
Fits 1991 Buick Park Avenue, N/A. Clean the fuel tank before installing the fuel pump to prevent future seal problems. Verify connector style, outlet type, and sender resistance before installation. HP10267 is an in-tank assembly, so service should be performed with the tank removed or lowered according to the vehicle procedure.
Quality Assurance
Delphi builds this replacement part using OE heritage and application knowledge developed over decades of supplying original equipment to global automakers. HP10267 is a standard replacement fuel pump hanger assembly intended to match the original system layout for the 1991 Buick Park Avenue.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1991 | Buick | Park Avenue | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
