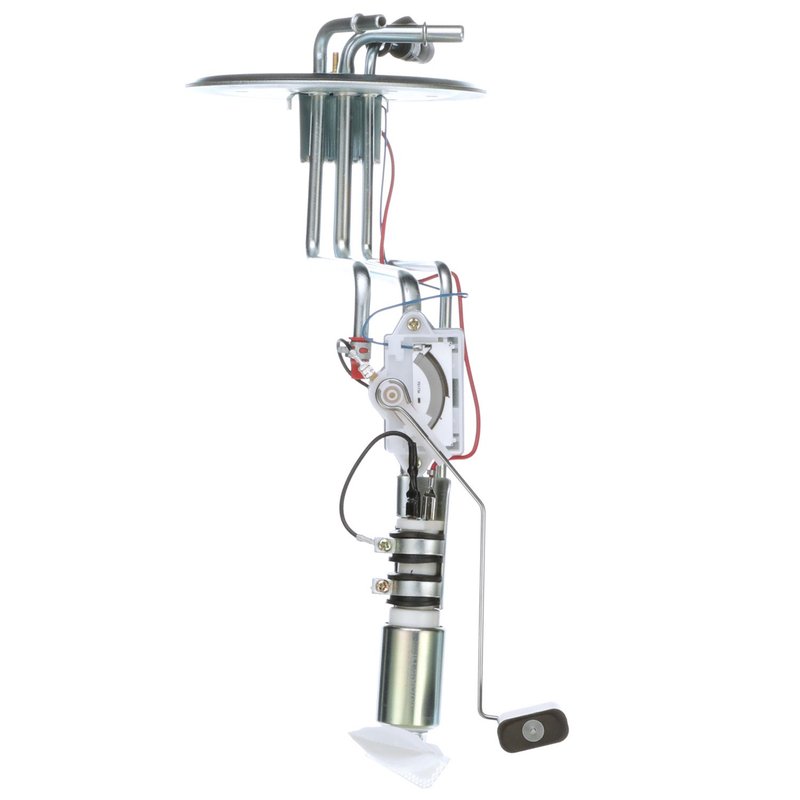

Delphi HP10270 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10270 fuel pump hanger assembly is designed specifically for Ford E-350 Econoline and E-350 Econoline Club Wagon models. This in-tank electric fuel pump assembly ensures reliable fuel delivery with integrated components for efficient operation.

• 12.0 Volt electric fuel pump with 48 GPH average flow rating
• Compatible with gasoline fuel systems
• Maximum pressure rating of 8.0 psi with system pressure at 3 psi
• Includes fuel level sender assembly with float arm
• Threaded male terminals, 3 in total, for secure electrical connections
• External strainer inlet type with included strainer for fuel filtration
• Quick connect outlet type with two outlets, 0.375 inch outside diameter
• Gasket and seal included for proper installation and leak prevention

Technical Details and Specifications

The Delphi HP10270 fuel pump hanger assembly operates at 12 volts and is engineered for gasoline fuel systems in Ford E-350 Econoline and E-350 Econoline Club Wagon vehicles. It features a standard replacement grade electric pump with an average current draw of 10 amps. The pump delivers an average flow rating of 48 gallons per hour, maintaining a maximum pressure of 8 psi and a system pressure of 3 psi to ensure consistent fuel supply.

This assembly includes a fuel level sender assembly with a float arm, providing accurate fuel level readings. The unit has three threaded male terminals for reliable electrical connections. The external strainer inlet type helps filter fuel before it enters the pump, and the quick connect outlet with two outlets (0.375 inch outside diameter) facilitates easy fuel line attachment. A gasket and seal are included to ensure a secure, leak-free installation.

Compatible Vehicles and Applications

This fuel pump hanger assembly is compatible with the following Ford models:

• Ford E-350 Econoline
• Ford E-350 Econoline Club Wagon

It is designed for in-tank installation and is suitable for gasoline fuel systems requiring a reliable electric fuel pump with integrated fuel level sending capabilities.

Common Issues Addressed by This Fuel Pump Assembly

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pump noise or electrical connection problems
• Fuel contamination caused by missing or damaged strainers
• Leaks or poor sealing in the fuel pump hanger assembly

Installation Notes and Tips

When installing the Delphi HP10270 fuel pump hanger assembly, ensure the gasket and seal are properly seated to prevent leaks. Verify that the threaded male terminals are securely connected to avoid electrical issues. The quick connect outlets should be firmly attached to the fuel lines with the correct diameter fittings (0.375 inch outside diameter). Follow the included instruction sheet carefully for proper installation procedures and safety precautions.

Quality Assurance and Warranty

Delphi provides a standard replacement grade fuel pump hanger assembly designed to meet OEM specifications for Ford E-350 Econoline and E-350 Econoline Club Wagon models. The HP10270 part number is manufactured with quality materials and includes a fuel level sender assembly and strainer to ensure reliable operation. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
