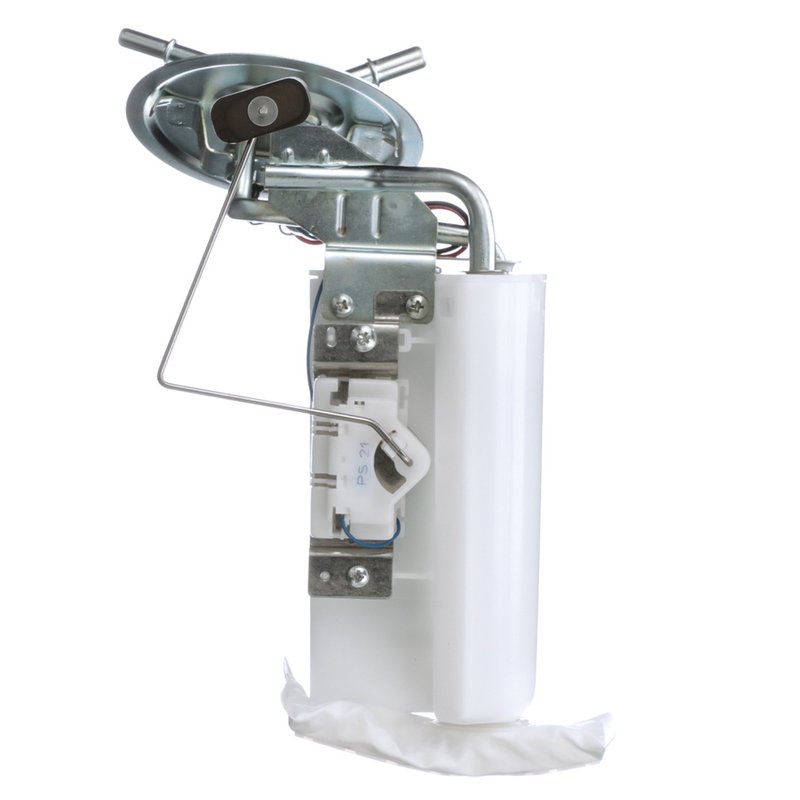

Delphi HP10273 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10273 Fuel Pump Hanger Assembly is designed for reliable fuel delivery in Ford trucks. Engineered for use with Ford F-150, F-250, and F-350 models, this in-tank electric fuel pump hanger assembly ensures consistent fuel flow and accurate fuel level readings.

• Compatible with Ford F-150, F-250, and F-350 models
• 12.0 Volt electric fuel pump with a maximum pressure of 109 psi
• Includes fuel level sender assembly with float arm for precise fuel measurement
• Features a 0.375 inch outlet outside diameter with quick connect outlet type
• Equipped with an external strainer inlet and included strainer for fuel filtration
• Four male pin terminals for secure electrical connections
• Standard replacement grade with included gasket and seal for leak prevention
• Average flow rating of 21 and system pressure of 43 psi for optimal performance

Technical Details and Specifications

The Delphi HP10273 fuel pump hanger assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an electric pump type with an average current draw of 10 amps, supporting a maximum pressure of 109 psi and a system pressure of 43 psi. The assembly includes a fuel level sender with resistance values ranging from 15 ohms (empty) to 160 ohms (full), providing accurate fuel level readings. The unit has two quick connect outlets with a 0.375 inch outside diameter and an external strainer inlet to help maintain fuel cleanliness. The four male pin terminals ensure reliable electrical connections, and the included gasket or seal helps prevent leaks during installation.

Compatible Vehicles and Applications

This fuel pump hanger assembly is compatible with the following Ford models:

• Ford F-150
• Ford F-250
• Ford F-350

It is designed for in-tank installation and is suitable for standard replacement needs in these vehicles, ensuring proper fuel delivery and fuel level monitoring.

Common Issues Addressed by This Fuel Pump Hanger Assembly

• Fuel delivery interruptions causing engine performance issues
• Inaccurate fuel level readings due to faulty sender assemblies
• Fuel leaks from worn or damaged seals and gaskets
• Clogged fuel strainers reducing fuel flow and pump efficiency
• Electrical connection failures affecting pump operation

Installation Notes and Tips

When installing the Delphi HP10273 fuel pump hanger assembly, ensure the vehicle’s fuel tank is properly drained and depressurized. Verify that the gasket or seal is correctly positioned to prevent leaks. Connect the four male pin terminals securely to the vehicle’s wiring harness. Confirm that the external strainer is clean and properly seated to maintain fuel filtration. Use the quick connect outlets for efficient fuel line attachment. Follow all safety precautions when working with fuel system components.

Quality Assurance and Warranty Information

Delphi manufactures this fuel pump hanger assembly to meet standard replacement grade specifications, ensuring reliable performance and durability. The product includes a gasket or seal and a fuel level sender assembly for comprehensive functionality. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
